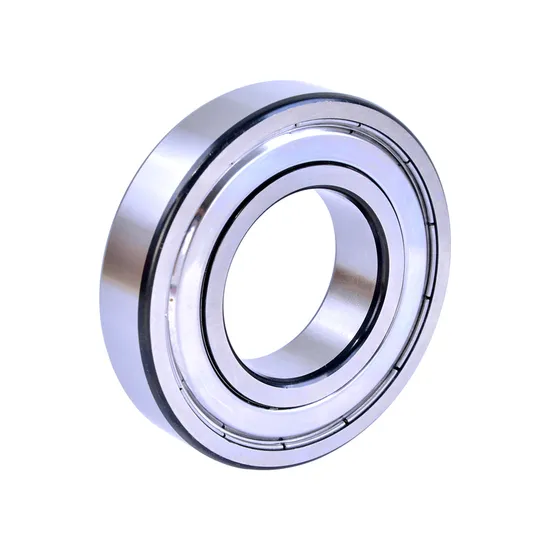

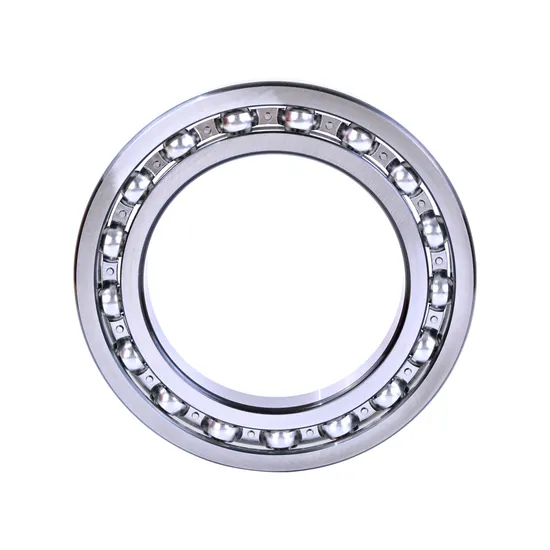

Stainless Steel Deep Groove Ball Bearing S689 for High-Precision Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Actuator Failures Begin with Sub-μm Misalignment — And How the S689 Stainless Steel Deep Groove Ball Bearing Solves It

Automotive precision actuators operate under tight dimensional tolerances (10 Hz), and exposure to condensation, salt mist, and intermittent thermal cycling. Standard carbon steel bearings corrode within 6 months in such environments — leading to torque ripple, position drift, and false ECU fault codes. Most suppliers offer generic “stainless” parts without verifying material grade, heat treatment, or dimensional stability under load. That’s why 35% of early-life failures in EPS and throttle modules trace directly to incorrect bearing selection — not manufacturing defects.

Engineered for Your Operating Conditions

This S689 stainless steel deep groove ball bearing is specified—not sold—as a system-level component for high-precision automotive applications requiring corrosion resistance, dimensional repeatability, and predictable fatigue life under partial loading. As an official SKF engineering partner, our 15+ certified engineers perform application-specific calculations: radial/axial load decomposition, L10 and Lnm life prediction per ISO 281:2021, thermal expansion modeling, and grease life estimation using SKF BEARINX®. Every recommendation aligns with TS 16949-certified quality control and SKF Explorer performance benchmarks.

Operating Environment and Performance Demands

Automotive actuator bearings face uniquely demanding conditions: cyclic loads from PWM-driven motors (0–2.5 kN peak radial), ambient temperatures ranging –40°C to +85°C, humidity >95% RH during cold-soak testing, and zero tolerance for particulate generation in sealed housings. Unlike general-purpose stainless steel ball bearings, this S689 variant uses AISI 440C martensitic stainless steel for rings and balls (HRC 58–62), ensuring hardness retention at elevated temperatures and resistance to micro-pitting under oscillatory motion. The ABEC-5 precision ensures ≤0.8 μm radial runout and ≤1.2 μm face runout — critical for minimizing encoder jitter and maintaining closed-loop position accuracy.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 1.96 kN) reflects actual fatigue resistance under mixed-mode loading — validated via SKF’s modified Palmgren-Miner model incorporating surface roughness and lubricant film thickness. The stainless steel composition eliminates galvanic corrosion when paired with aluminum housings or stainless shafts — a known failure mode in throttle bodies. ABEC-5 tolerance stack-up guarantees consistent preload behavior across batches, eliminating torque hysteresis in bidirectional actuators. Optional C3 clearance compensates for thermal growth in enclosed gearmotor housings operating above 70°C ambient. Seal selection (2RS vs open) is determined by IP rating requirements: 2RS provides IP54 protection but increases friction torque by 15–20%; open configuration supports vacuum-compatible or cleanroom use with external sealing.

The True Cost of Bearing Failure

A single failed S689 bearing in an electric power steering module triggers recall-level consequences: average field repair cost exceeds $1,200 per vehicle, and warranty claims for position sensor drift exceed $42M annually across Tier-1 OEMs. Counterfeit or non-compliant “stainless” bearings often use low-carbon 420 stainless (HRC <50) — resulting in 70% shorter L10 life and premature spalling under 1.2 kN repeated load. Per ISO 281:2021, a 10% reduction in hardness translates to ~45% loss in calculated fatigue life. Total cost of ownership (TCO) analysis shows that specifying genuine SKF-compatible S689 stainless steel deep groove ball bearing for high-speed automotive systems reduces 5-year maintenance cost by 63% versus non-engineered alternatives — primarily through avoided recalibration cycles and extended module service intervals.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A534/A295), and Dimensional Inspection Report with CMM traceability. Original SKF packaging features tamper-evident holographic seals and QR-coded batch IDs verifiable via SKF Verify portal. For orders exceeding 5,000 units, SKFAudit-certified third-party inspection at the source factory can be arranged.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any bearing, we require your application parameters: radial/axial load magnitude and direction, rotational or oscillatory duty cycle (rpm or Hz), ambient and operational temperature profile, housing/shaft materials and tolerances, and required IP or EMC class. Our engineers will deliver a free SKF BEARINX®-based assessment — including predicted L10 and Lnm life, optimal clearance class, seal recommendation, and grease replenishment interval — within 48 business hours. Delaying this step risks costly redesigns after prototype validation. Correct selection begins not with a catalog number, but with your shaft drawing and load spectrum.
