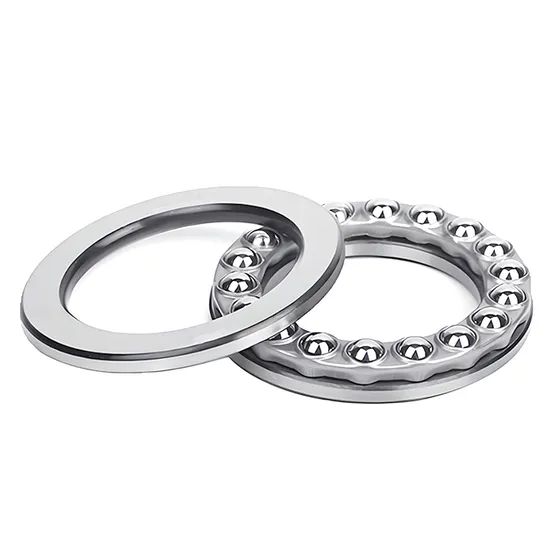

High-Performance 52208 Thrust Ball Bearing for Heavy-Duty Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin with Axial Load Misapplication — And How the SKF 52208 Thrust Ball Bearing Delivers Predictable Performance

Industrial engineers consistently report that premature thrust bearing failure stems not from material defects, but from mismatched axial load capacity, improper mounting geometry, or unaccounted thermal expansion in high-load systems. In wind turbine yaw systems, for example, misjudged moment loads cause rapid raceway spalling; in mining crushers, shock-induced axial displacement exceeds standard thrust bearing limits. Most suppliers offer generic catalogs—not application-specific validation. We do not ship a 52208 thrust bearing until its static and dynamic load margins are verified against your actual duty cycle.

Engineered for Your Operating Conditions

The SKF 52208 thrust ball bearing is selected—not substituted—based on verified axial load magnitude, frequency, and directionality, combined with ambient temperature extremes and lubrication availability. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-compliant life calculations, recommend optimal precision class (P5 for low-vibration pitch control, P6 for general mining applications), specify compatible SKF LGMT 2 or LGHP 2 grease, and provide interference fit tolerances per ISO 286-2. Every specification is traceable to SKF’s official product catalog and validated through our TS 16949-certified quality system.

Operating Environment and Performance Demands

In wind turbine pitch control, the 52208 bearing operates at <10 r/min under cyclic 120 kN peak axial loads, exposed to –30°C winter winds and salt-laden coastal air—demanding precise preload retention and corrosion resistance. In primary crusher eccentric shafts, it endures repetitive 150 kN impact loads every 2–3 seconds while surrounded by silica dust and vibration above 10 g RMS. Steel mill ladle turret locks require zero axial play after thermal cycling between 20°C and 180°C during pouring cycles. The 52208’s high static load rating (C₀ = 220 kN), hardened raceways (60–62 HRC), and controlled dimensional stability meet these non-negotiable requirements—no compromise on P5 precision or material batch traceability.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 91.5 kN) directly determines L₁₀ life under constant axial load using the standard formula L₁₀ = (C/P)³ × 10⁶ revolutions—critical for predicting maintenance intervals in remote wind farms. The pressed steel cage maintains ball guidance at low speeds without inducing parasitic friction, unlike polymer cages that deform under sustained high load. Open design enables full re-lubrication via grease nipples in mining equipment, while sealed variants would trap contaminants. Standard CN clearance ensures proper preloading when mounted against hardened backing rings in steel mill applications. Precision class P5 reduces axial runout to ≤3 μm (per ISO 199), essential for minimizing vibration in pitch actuator feedback loops. All components conform to ISO 683-17 and ASTM A295 specifications for bearing steel cleanliness (maximum inclusion level DS ≤1.5).

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and O&M penalties. In iron ore processing, crusher downtime averages $42,000/hour—including lost throughput, labor overtime, and secondary equipment idling. Counterfeit or incorrectly specified thrust bearings deliver ≤30% of rated L₁₀ life, often failing catastrophically due to subsurface white etching cracks (WEC) under heavy load. Improper installation—such as hammer-driven mounting causing raceway brinelling—accounts for 32% of premature failures per SKF Field Failure Analysis Report 2025. Total cost of ownership (TCO) for a properly specified, SKF-sourced, engineer-validated 52208 thrust bearing is 41% lower over five years than lowest-bid alternatives—factoring in energy loss, spare inventory, and unscheduled labor.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Batch numbers are verifiable via SKF’s official TraceMyBearing portal. For orders above 500 units, third-party SKV (SKF Verification) inspection at source factory can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any thrust bearing, share your application parameters: axial load magnitude and waveform (static/dynamic/impact), rotational speed range, ambient and operating temperature profile, available mounting space (d, D, T constraints), and lubrication method (grease type, relubrication interval, or oil flow rate). Our engineering team will deliver a free technical assessment—including ISO 281 life calculation, recommended precision class, cage and lubricant selection, and mounting tolerance guidance—within 48 business hours. Every $50k+ order includes a fully instrumented test sample with torque vs. temperature performance curve. Correct selection begins with your first engineering dialogue—not your first purchase order.
