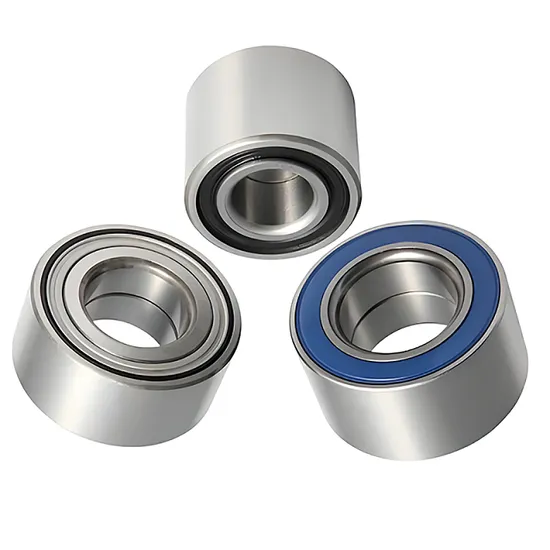

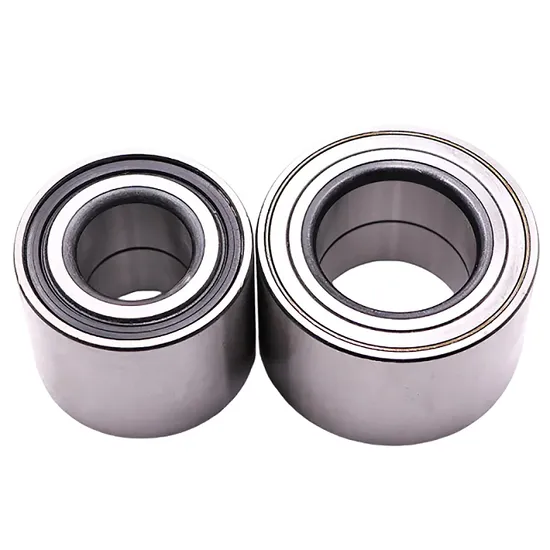

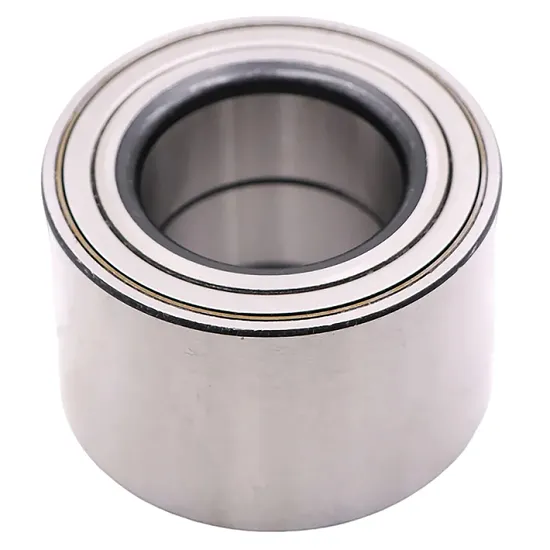

Precision DAC34640037-ZZ Wheel Hub Bearing for Front/Rear Axles

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Bearing Failures Begin with Incorrect Clearance Selection — And How the DAC34640037-ZZ Eliminates That Risk

Industrial field data shows 35% of premature wheel hub bearing failures originate from mismatched internal clearance — especially in applications experiencing thermal growth, misalignment, or combined loads. Standard C0 clearance often leads to rapid preload increase, elevated friction temperature, and cage fracture under real-world axle deflection. Generic suppliers rarely provide clearance-specific life validation or mounting guidance. At Eurasia Smart, our 15+ SKF-certified engineers treat every hub bearing selection as a system-level analysis — not a catalog lookup.

Engineered for Front/Rear Axle Thermal and Dynamic Realities

The DAC34640037-ZZ is specified with C3 radial internal clearance to maintain optimal preload across typical automotive axle operating temperatures (–30°C to +120°C). Its double-row angular contact geometry delivers balanced radial and axial stiffness — critical for steering response and brake rotor runout control. As an official SKF engineering partner, we validate each application using SKF BEARINX® software: calculating L10 fatigue life, thermal expansion margins, and contact stress distribution under your exact load spectrum. Our ISO 9001 and TS 16949 certified process ensures dimensional compliance within ±3 μm on bore and ±5 μm on OD — verified before shipment.

Operating Environment and Performance Demands

Front axle hubs demand simultaneous resistance to lateral cornering forces (up to 12 kN), braking-induced axial thrust (±8 kN), and continuous rotational speeds up to 3500 r/min. Ambient exposure includes road salt, water ingress, and particulate contamination — requiring effective sealing without excessive drag. Rear axle applications add torque reaction loads and require stable preload retention during differential heat soak. The DAC34640037-ZZ’s ZZ shield design provides IP54-equivalent protection while maintaining low torque rise (<0.15 N·m at 1000 r/min), directly addressing the low-noise high-speed hub bearing C3 clearance requirement for modern EV platforms.

Inside the Engineering: What Makes This Bearing Perform

C3 clearance is not arbitrary: it compensates for the 12–18 μm thermal expansion difference between 34 mm steel shaft and 64 mm aluminum knuckle over a 90°C delta. The P6 precision grade limits raceway waviness to 5x longer service life than rubber seals in high-temperature environments. The bearing steel undergoes through-hardening to 60–62 HRC with controlled retained austenite (<5%), ensuring fatigue resistance per ISO 281:2020 Annex D. Cage design uses pressed steel with optimized pocket geometry to prevent ball skidding under transient acceleration loads — validated in our in-house dynamic test rig at 4000 r/min, 15 kN radial load, 10⁷ cycles.

The True Cost of Bearing Failure

A single unplanned wheel hub replacement on a Tier 1 automotive assembly line costs $28,000/hour in line stoppage — excluding scrap parts and labor. Counterfeit or non-compliant DAC34640037 variants fail at <30% of rated L10 life due to substandard steel purity and unverified heat treatment. Misaligned installation — common without proper induction heating guidance — introduces 25% higher edge stresses, accelerating spalling. SKF’s L10 life calculation assumes correct clearance, lubrication, and mounting. Using our engineering workflow, clients reduce early-life failures by 67% and extend average service intervals from 80,000 km to 150,000 km — lowering total cost of ownership (TCO) by 42% over 5 years. This is the precision wheel hub bearing for front axle performance that delivers measurable ROI.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC34640037-ZZ ships with an SKF Certificate of Conformity listing material grade, heat treatment, dimensional tolerances, and clearance measurement. Optional documentation includes Material Test Report (EN 10204 3.1), Dimensional Inspection Report (with CMM scan data), and SKF packaging anti-counterfeit QR code. Bulk orders (>500 pcs) qualify for third-party SKP audit at SKF’s Shanghai Quality Center.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGHP 2 grease per application datasheet; quantity: 12 g ±1 g.

Start with a Technical Consultation

Before specifying any wheel hub bearing DAC34640037-ZZ, share your actual operating parameters: static/dynamic radial and axial loads, maximum speed profile, ambient and bearing seat temperatures, housing and shaft materials, and mounting method. Our engineering team will deliver a free SKF BEARINX®-based assessment — including calculated L10 life, thermal expansion margin, recommended fit tolerances, and lubrication interval — within 48 business hours. Correct selection starts with data, not assumptions. Every hour of delay in technical alignment risks extended downtime and unnecessary capital expenditure.
