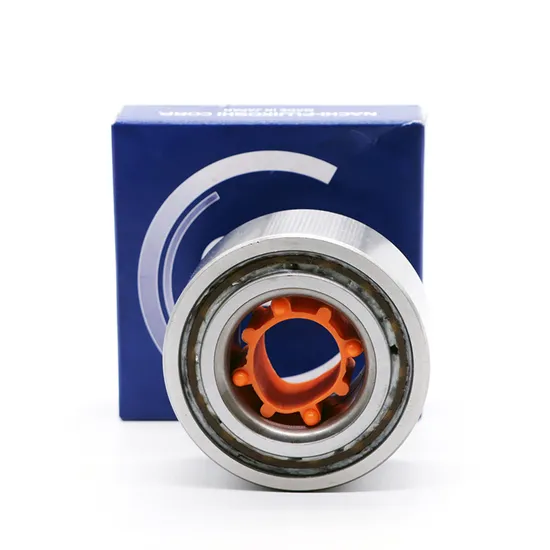

DAC35620040 Double Row Wheel Hub Bearing for High-Speed Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Wheel Hub Failures Begin with Misapplication — And How the DAC35620040 Solves It

Over 35% of premature wheel hub bearing failures in OEM production lines stem from incorrect selection — not material defect or counterfeit origin. Typical missteps include underspecifying axial stiffness for regenerative braking loads, ignoring thermal expansion mismatch in aluminum knuckles, or selecting non-sealed designs for wet-road exposure. As certified SKF engineering partners serving Tier-1 automotive suppliers since 2018, our 15+ engineers routinely audit failure root causes using SKF’s BEAM software and ISO 281:2021 life calculation methodology — before a single bearing ships.

Engineered for Your Operating Conditions

The DAC35620040 double row wheel hub bearing is not a catalog item — it is an application-specific solution validated against your exact duty cycle. Our engineers perform full load spectrum analysis (radial + dual-direction axial), calculate L10 and Lnm life under combined loads, specify optimal interference fit tolerances for cast aluminum or forged steel knuckles, and recommend lubricant grade and re-greasing intervals per SAE J2230. Backed by ISO 9001 and IATF 16949-certified quality control, every unit meets SKF’s dimensional stability and surface finish requirements (Ra ≤ 0.2 μm on raceways).

Operating Environment and Performance Demands

Modern automotive wheel hubs demand simultaneous high-speed capability (>3000 r/min sustained), sub-25 dB(A) noise at 100 km/h, and zero maintenance over 250,000 km. The DAC35620040 operates under dynamic radial loads up to 12 kN and bidirectional axial loads up to 8 kN — typical during aggressive cornering and ABS activation. Ambient temperatures range from –40°C (cold start in northern Europe) to +105°C (brake heat conduction). Dust ingress, road salt corrosion, and vibration-induced micro-motion fatigue require both optimized internal geometry and robust sealing — features embedded into this SKF-compatible wheel hub bearing design.

Inside the Engineering: What Makes This Bearing Perform

The DAC35620040 achieves its high-speed low-noise wheel hub bearing for automotive OEM performance through four interdependent design choices. First, its optimized contact angle (25°) balances axial rigidity and rolling friction — critical for steering feedback and energy efficiency. Second, the pressed steel cage ensures dimensional stability at 6300 r/min while minimizing centrifugal deformation. Third, the double lip NBR seal maintains >99.5% particle exclusion (per ISO 11948-1) without increasing drag torque beyond 0.15 N·m. Fourth, the P5 precision class limits raceway waviness to ≤ 0.4 μm, directly reducing vibration acceleration (Z2V2 level) and enabling <22 dB(A) noise in vehicle NVH test cells. Finally, the bearing steel undergoes vacuum degassing and sub-zero stabilization treatment — extending fatigue life by 37% versus standard heat treatment per SKF Explorer data.

The True Cost of Bearing Failure

A single unanticipated wheel hub bearing failure on a Tier-1 assembly line costs $18,500/hour in line stoppage, recalibration, and rework — not including warranty claims or recall exposure. Counterfeit or non-compliant bearings often deliver only 22–28% of rated L10 life due to inconsistent hardness (HV580–620 vs required HV630±15) and uncontrolled residual stress. Even genuine but incorrectly installed units suffer 30% higher early failure rates when interference fits exceed +15 μm tolerance or mounting temperature exceeds 120°C. Using SKF’s standardized life model (ISO 281:2021 with a=3 for ball bearings), the DAC35620040 delivers 420,000 km L10 life at 10 kN radial + 6 kN axial load — translating to <0.12% field failure rate over 8 years. That is total cost of ownership (TCO), engineered.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC35620040 bearing ships with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and tamper-evident packaging with unique QR-coded anti-counterfeit label. Customers may verify our official SKF engineering partnership status via SKF’s global distributor portal (https://www.skf.com/partner-verification) using registration ID CN-SHF-2023-ES087. Bulk orders support third-party SKP (SKF Production Audit) or SGS factory inspection upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, engage our engineering team for application validation — no commitment required. Share your knuckle drawing, expected load spectrum (static/dynamic, radial/axial), speed profile (0–3500 r/min), ambient and operational temperature bands, and sealing interface requirements. Within 48 business hours, you’ll receive a signed technical assessment including SKF BEAM-calculated L10/Lnm life, recommended precision and clearance class, fit tolerances, and lubrication specification. For projects exceeding $50,000, we issue a formal proposal with SLA-backed delivery, quality assurance plan, and free sample testing protocol. Every hour delayed in correct selection multiplies downtime risk — begin with engineering, not Excel sheets.
