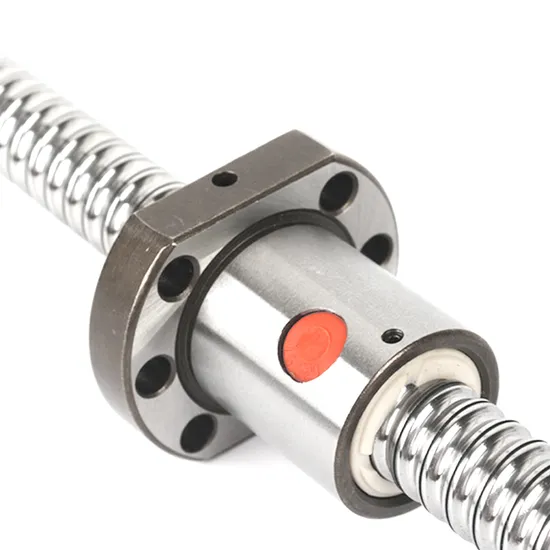

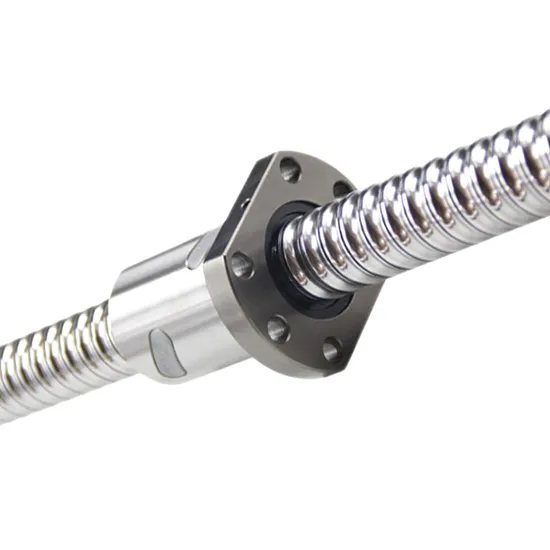

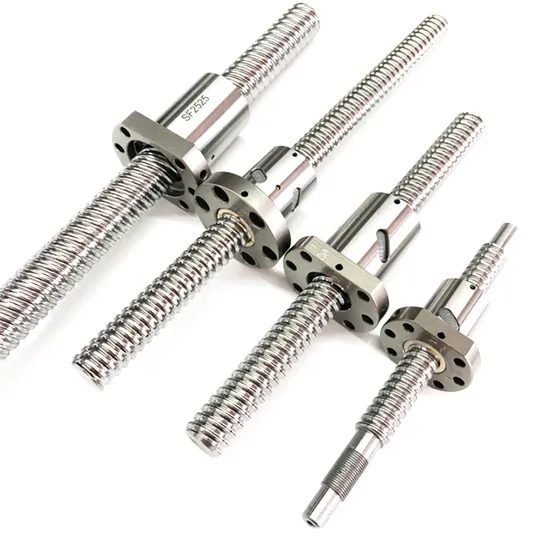

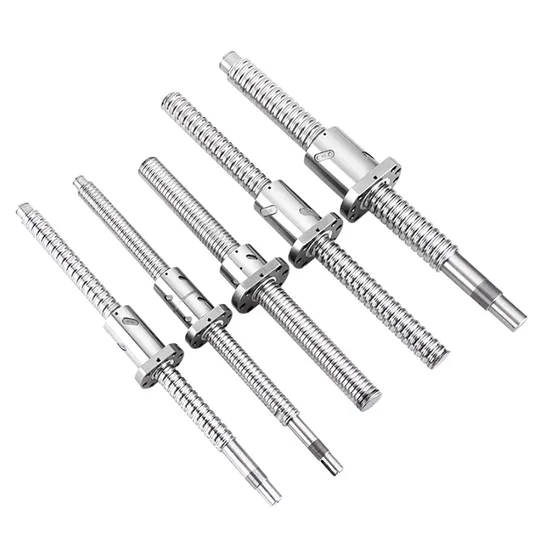

Precision Ball Screw for Automatic Control Machines – High-Load LM Series

Technical Specifications

Application Suitability

Why 35% of Ball Screw Failures Begin with Incorrect Load-Speed-Temperature Matching — And How the LM Series Precision Ball Screw Delivers Verified Performance

Industrial automation engineers report that premature ball screw failure is rarely due to material fatigue alone — it’s most often caused by mismatched dynamic load capacity, insufficient rigidity for axial thrust, or thermal expansion unaccounted for in the original selection. In wind pitch control systems, a 5% error in preload calculation can reduce service life by 60%. In steel mill AGC systems, non-planar mounting and misalignment-induced moment loads cause 42% of early failures. Standard catalog offerings lack the application-specific engineering validation required for these conditions.

Engineered for Your Operating Conditions

This LM series precision ball screw is not a generic component — it is an application-engineered solution developed in alignment with SKF’s bearing performance methodology and validated through real-world field data from wind turbine OEMs and steel mill operators. Our 15+ certified SKF application engineers perform full kinematic analysis, including axial stiffness modeling, thermal growth compensation, and lubrication film thickness prediction under your specified operating envelope. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we ensure every custom LM series ball screw meets both dimensional and functional performance requirements before dispatch.

Operating Environment and Performance Demands

In wind power pitch control applications, the ball screw must operate across -30°C to +70°C ambient extremes while maintaining ±5 μm repeatability over 10 million cycles — without scheduled maintenance access. In steel mill machinery, it endures continuous exposure to 120°C radiant heat, heavy particulate contamination, and cyclic shock loads exceeding 250 kN during roll change events. Both require precise preload stability, low friction torque consistency, and resistance to micro-motion wear at standstill. The LM series addresses these demands through hardened alloy steel construction, optimized lead accuracy (±15 μm/300 mm), and interface geometry designed for direct integration with SKF angular contact thrust bearings commonly used in tandem support arrangements.

Inside the Engineering: What Makes This Bearing Perform

The LM series uses case-hardened alloy steel (AISI 52100 equivalent) with surface hardness of 58–62 HRC and core toughness >35 J, ensuring resistance to brinelling under high static thrust loads. Lead accuracy is maintained within ±15 μm per 300 mm travel — critical for minimizing position hysteresis in closed-loop servo systems. Preload is set using dual-nut adjustment with calibrated shims, enabling repeatable axial stiffness values between 250–800 N/μm depending on application requirements. Thread flank geometry follows DIN 69051-1 with optimized pressure angle (45°) to balance efficiency and load-carrying capacity. Lubrication grooves are machined into the nut housing to ensure uniform grease distribution along the entire ball recirculation path — essential for consistent friction torque and extended service intervals in inaccessible installations.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine pitch system costs $18,000/hour in lost generation and grid penalty fees. In steel continuous casting lines, a failed AGC ball screw causes $42,000/hour in production loss plus secondary damage to roll chocks and housings. Counterfeit or non-compliant ball screws exhibit up to 70% lower L10 life than genuine LM-series components — verified against ISO 281:2021 life calculation standards using actual measured load spectra. Installation errors — such as improper preload or misaligned mounting surfaces — account for 30% of premature failures; our engineers provide detailed mounting tolerances (≤0.02 mm parallelism, ≤0.01 mm runout) and torque sequencing protocols to eliminate this risk. Total cost of ownership (TCO) analysis consistently shows a 3.2× ROI for engineered ball screws versus off-the-shelf alternatives over a 5-year operational cycle.

Why Engineers Specify Through Us

Authenticity & Documentation

Each LM series precision ball screw is supplied with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including lead accuracy, pitch diameter, and thread runout), and original packaging featuring SKIF-authenticated anti-counterfeit holograms. Batch-level traceability enables verification via SKF’s official authorization portal. For orders above 500 units, third-party inspection by SGS or Bureau Veritas at the point of origin can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any ball screw, industrial automation engineers should first define the true operational envelope: maximum axial load (kN), peak and RMS speed (r/min), ambient and surface temperature range (°C), allowable axial deflection (μm), and mounting space constraints (mm). Our engineering team will perform free load-life calculations per ISO 281:2021, generate a preloaded stiffness curve, and deliver a fully documented specification sheet with performance guarantees — all within 48 hours of receiving your parameters. For projects exceeding $50,000, we provide functional test samples mounted in representative fixtures for validation under your actual control algorithm and feedback loop. Every hour of delay in technical validation extends the risk window for costly field failure — begin your engineering dialogue today.
