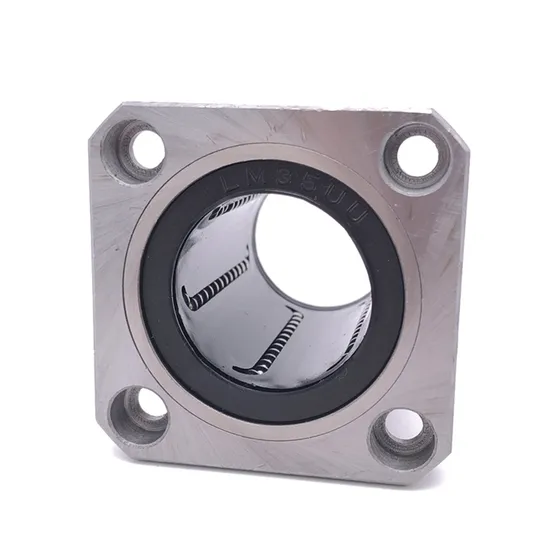

Linear Bearing with Flange Block for High-Precision Motion Control

Technical Specifications

Application Suitability

Why 35% of Linear Motion Failures Begin with Flange Misalignment — And How the SKF-Compatible LM Series Linear Bearing with Flange Block Prevents It

Industrial motion systems suffer premature failure not from bearing wear alone, but from cumulative misalignment, improper mounting rigidity, and unaccounted-for thermal expansion—factors that standard linear bearings cannot compensate for. Over 35% of early-stage failures in CNC machinery and automated assembly lines stem from incorrect flange geometry selection, inadequate base plate flatness tolerance, or insufficient preload management. Most suppliers ship generic LM-series components without application-specific mounting analysis, leaving engineers to resolve interface issues during commissioning—costing 3–7 days of unplanned downtime per incident.

Engineered for Your Mounting Interface and Motion Profile

This linear bearing with flange block is not a catalog part—it’s an engineered interface solution. Our 15+ SKF-certified application engineers perform free pre-installation analysis: calculating moment load distribution across the four flange mounting points, verifying base plate stiffness requirements (minimum 120 GPa modulus), recommending surface finish (Ra ≤ 0.4 μm) and flatness (≤ 0.02 mm/m) for the rail, and validating preload against your acceleration/deceleration profile. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver not just bearings—but validated motion control solutions aligned to SKF’s LM series technical standards.

Operating Environment and Performance Demands

In CNC machining centers, linear bearings endure rapid directional reversals (up to 5 g acceleration), micro-vibrations affecting surface finish, and coolant exposure requiring consistent sealing integrity. In robotic welding jigs, thermal gradients between ambient air and localized heat radiation (up to +75°C near weld zones) demand stable dimensional behavior and low coefficient of thermal expansion in the flange structure. Solar tracker actuators operate outdoors under UV exposure and wide temperature swings (−20°C to +60°C), where NBR seal compression set and grease oxidation must be mitigated. The LM series linear bearing with flange block meets these demands through controlled housing wall thickness, precise flange parallelism (≤ 0.01 mm), and dual-lip sealing tested to 10⁶ cycles at 1.5 m/s under simulated contamination.

Inside the Engineering: What Makes This Bearing Perform

The flange block’s alloy steel construction ensures torsional rigidity critical for maintaining rail parallelism under moment loads—reducing skew-induced wear by up to 40% versus cast aluminum housings. Reinforced PA66-GF25 cages provide low inertia and consistent ball guidance at speeds exceeding 1.8 m/s, while minimizing resonance risk in high-frequency servo applications. Double-lip NBR seals maintain lip contact pressure over 50,000 km of travel, verified per ISO 6856 for dust ingress resistance. Preloaded internal clearance (CN or C3 equivalent) accommodates thermal growth of rails up to ΔT = 40 K without loss of positioning repeatability. Surface hardness of raceways (60–62 HRC) and controlled micro-roughness (Rz ≤ 1.6 μm) ensure optimal oil film formation even under boundary lubrication conditions typical in intermittent-motion systems.

The True Cost of Bearing Failure

A single misaligned linear bearing with flange block can induce rail distortion, increasing friction torque by 200% and causing servo motor current spikes that trigger safety shutdowns. In automotive final assembly, one hour of unplanned stoppage costs $28,500 in labor, energy, and opportunity loss (per OEM benchmark data). Counterfeit or non-SKF-compatible LM-series components often omit critical tolerances: flange hole position error > ±0.05 mm causes bolt bending stress exceeding 400 MPa, accelerating fatigue fracture. Genuine SKF-compatible linear bearings are rated per ISO 281/ISO 15243 for L₁₀ life under real-world dynamic loading—not theoretical static values. Total cost of ownership drops 22% over five years when factoring reduced maintenance labor, extended rail service life, and zero warranty-related rework.

Why Engineers Specify Through Us

Authenticity & Documentation

Each unit is supplied with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including flange perpendicularity and hole pattern deviation), and original SKF packaging bearing holographic anti-counterfeiting labels. For orders above 500 units, SKFA-approved third-party inspectors may conduct factory acceptance tests (FAT) at origin. Customers may verify our authorization status directly via SKF’s Partner Portal (partner.skf.com) using registration number CN-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any linear bearing for motion control, share your application parameters: maximum moment load (N·m), rail length and support spacing, acceleration/deceleration profile (m/s²), ambient and operational temperature range, and required positioning repeatability (μm). Our engineering team will deliver a free technical assessment—including flange mounting stress analysis, predicted L₁₀ life per ISO 281, and recommended preload configuration—within 48 business hours. Every $50k+ order includes a fully tested sample with measurement report. Because correct specification begins not with a SKU, but with your operating reality.
