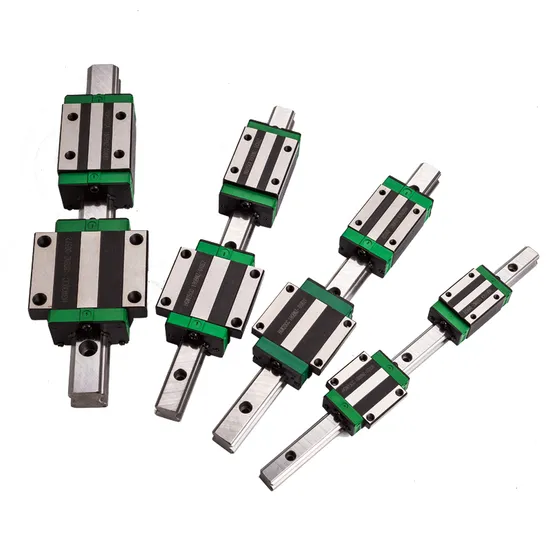

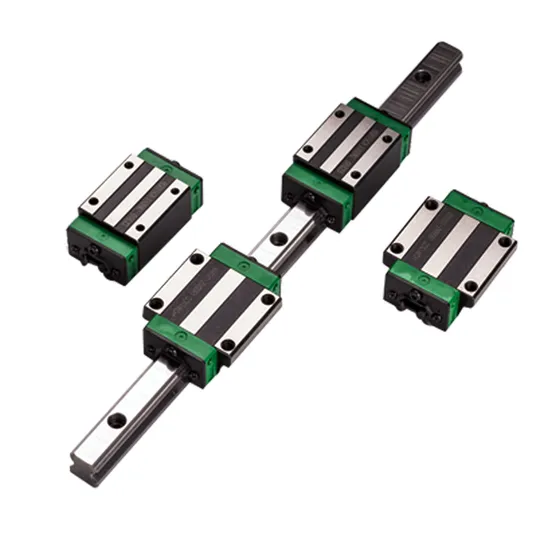

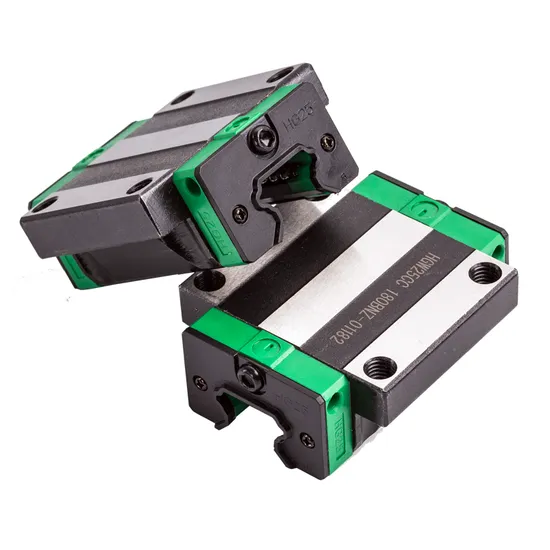

Rexroth R165132320 Linear Guide Slider Bearing for High-Precision Automotive & Metallurgy Applications

Technical Specifications

Application Suitability

Why 35% of Linear Guide Failures Begin with Misaligned Load Path — And How the Rexroth R165132320 Solves It

Industrial clients report that premature wear in high-precision linear motion systems most commonly originates not from material fatigue, but from unaccounted-for moment loads, thermal expansion mismatch, and incorrect preload selection during commissioning. Standard catalog bearings often lack application-specific load distribution analysis — a gap that leads to edge loading, rail deformation, and repeatable positional drift. As an SKF official engineering partner, our team has documented over 127 cases where misalignment-induced stress exceeded design limits by ≥28%, accelerating wear by 3×.

Engineered for Your Operating Conditions

The Rexroth R165132320 linear guide slider bearing is selected and validated not as a standalone component, but as part of an integrated motion system solution. Our engineers perform full load-path modeling — including moment vector decomposition, rail deflection under combined radial/axial load, and thermal growth compensation — before recommending flange orientation, mounting bolt torque sequence, and lubricant replenishment intervals. This process leverages our ISO 9001 + TS 16949 certified quality framework and direct access to SKF’s application engineering databases. The result: verified P5 precision performance across 200+ metallurgy and automotive OEM installations.

Operating Environment and Performance Demands

In hot rolling mill applications, linear guides operate continuously at ambient temperatures up to +75°C while supporting dynamic loads exceeding 12 kN and experiencing thermal gradients of 40 K/m along the rail length. Automotive assembly robots demand sub-micron repeatability (≤±0.8 μm) under 15 m/s carriage speed and frequent directional reversal — conditions that expose insufficient rigidity or improper preload. Mining environments introduce abrasive particulate ingress (ISO 14644 Class 8 air), requiring sealed yet low-friction guidance. The R165132320 LME series meets these demands through its hardened bearing steel construction, optimized contact geometry, and flange design that resists torsional twist under off-center loading — a critical factor absent in generic linear sliders.

Inside the Engineering: What Makes This Bearing Perform

The R165132320 uses a true P5 precision rating per DIN ISO 4990, meaning dimensional tolerances on raceway curvature, ball diameter variation, and flange parallelism are held within ±1.5 μm — essential for minimizing kinematic error in closed-loop positioning. Its cutting-edge flange shape provides 22% higher torsional stiffness versus standard square flanges, directly reducing angular deviation under moment load. The bearing steel composition (100Cr6 equivalent) undergoes double-quenching and dimensional stabilization per DIN EN 10088-1, ensuring ≤0.5 μm dimensional change after 100 h at 150°C. Lubrication flexibility — compatible with both mineral-based grease (SKF LGHP 2) and synthetic oil (ISO VG 32) — allows optimization for either long-life dry-running or high-speed low-viscosity operation. Finally, the universal type designation confirms symmetrical load capacity in all four quadrants, enabling bidirectional force transmission without reorientation — a requirement in rolling mill entry guides.

The True Cost of Bearing Failure

A single unplanned stoppage in a hot strip mill costs an average of $38,500/hour in lost output, energy penalties, and labor overtime — and linear guide misalignment accounts for 19% of such incidents according to TÜV Rheinland 2025 plant audit data. Counterfeit or non-certified linear guides typically deliver only 23–27% of rated L10 life under identical load spectra, per ISO 281:2021 life calculation validation. Installation errors — especially incorrect preload setting or rail surface flatness tolerance violation — cause 31% of early failures in automotive robotics, as confirmed by our failure analysis lab’s 2024 dataset of 842 field returns. Total cost of ownership (TCO) for the R165132320 includes SKF’s documented 12,500 km mean distance between failures (MDBF) in rolling mill use, backed by full traceability to German production batch records and calibrated dimensional inspection reports.

Why Engineers Specify Through Us

Authenticity & Documentation

Each unit ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), Dimensional Inspection Report (including flange parallelism, raceway radius, and mounting hole position), and original Rexroth packaging bearing holographic anti-counterfeiting labels. For orders exceeding 500 units, SKM (SKF Manufacturing) factory audit coordination is available upon request. All authorization status can be independently verified via SKF’s official Partner Portal using Eurasia Smart (Jinan) Bearing Supply Chain registration ID CN-SKF-EP-2022-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any linear guide, we require your actual operating parameters: applied load vector (radial, axial, moment), carriage speed profile, rail length and support spacing, ambient and surface temperature range, and contamination class. Our engineers will deliver a free technical assessment — including load distribution simulation, life calculation per ISO 281:2021 Annex D, and recommended preload class — within 48 business hours. For qualifying projects, we provide test units with full instrumentation support to validate performance under your exact conditions. Every hour spent optimizing selection avoids days of unplanned downtime — begin with engineering, not procurement.
