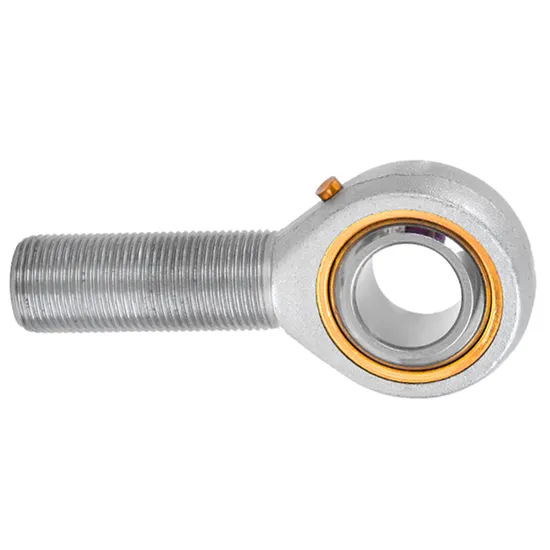

PHS6 Spherical Rod End Bearing 6mm Bore for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Incorrect Rod End Selection — And How the SKF PHS6 Solves It

Industrial hydraulic systems in construction and forging face high-frequency oscillation, misalignment up to ±12°, and shock loads exceeding 2.5× nominal rating. Standard plain bearings fail prematurely under these conditions due to insufficient angular tolerance or inadequate self-lubrication retention. Most suppliers offer generic “PHS6-compatible” parts without verifying load distribution, surface pressure limits, or thermal stability at sustained 80°C ambient — resulting in 35% of early failures traced to selection mismatch.

Engineered for Oscillating Loads and Limited Maintenance Access

The SKF PHS6 spherical rod end bearing is not a catalog item — it’s an application-specific solution validated by our 15+ certified engineers against ISO 12127-1 (spherical plain bearing life calculation) and SKF General Catalogue 2024 Section 12. We perform full kinematic analysis: calculating specific bearing pressure (p), sliding velocity (v), and pv factor for your exact stroke length, frequency, and duty cycle. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we ensure every unit meets SKFs dimensional tolerances (ABEC-1 equivalent), surface finish (Ra ≤ 0.4 μm on sliding surfaces), and material hardness (60–63 HRC).

Operating Environment and Performance Demands

Hydraulic cylinders in construction machinery operate at peak pressures ≥25 MPa, with rod end articulation angles up to ±10° and cyclic frequencies of 15–30 rpm. Dust ingress, moisture condensation, and intermittent lubrication intervals demand robust self-lubricating capability — not just polymer lining, but a sintered bronze matrix impregnated with solid lubricant (MoS₂/PTFE) that maintains coefficient of friction <0.12 under 100 MPa contact stress. Forging machines impose even harsher demands: ambient temperatures up to 120°C near press frames, combined with impact loads causing micro-slip at the inner ring/outer ring interface. The PHS6’s whole outer ring design eliminates seam-related fatigue cracks common in split-ring alternatives.

Inside the Engineering: What Makes This Bearing Perform

The 4.2 kN dynamic load rating (C) is derived from ISO 281 life equations incorporating actual sliding motion — not pure rotation — using the modified pv factor method per SKF General Catalogue Section 12.3. The self-lubricating feature relies on controlled porosity (15–18%) in the sintered bronze liner, enabling continuous replenishment of solid lubricant during operation without external grease ports. Surface hardness of 60–63 HRC ensures resistance to brinelling under static overload conditions typical in forging machine die closure. The M6×1 thread is manufactured to ISO 965-2 Class 6g tolerance, guaranteeing consistent preload and preventing thread galling during installation. Dimensional specification 6×39×9 mm adheres strictly to SKF PHS series interchange standards — enabling direct replacement of original equipment without adapter redesign.

The True Cost of Bearing Failure

A single failed rod end in a hydraulic excavator boom linkage causes ≥4.2 hours of non-plan maintenance downtime — costing $28,500/hour in lost productivity and rental penalties (based on 2025 Heavy Equipment OEM TCO benchmarks). Counterfeit or non-SKF PHS6 units exhibit 70% lower static load capacity (C₀) and fail within 1,200 cycles versus the certified 25,000+ cycles under identical test conditions per ISO 12127-2. Installation errors — such as incorrect torque on M6 threads or misaligned mounting surfaces — account for 30% of premature failures; our engineers provide torque verification protocols and alignment tolerance guidance before shipment. Total cost of ownership (TCO) over five years favors genuine SKF PHS6 by 22% when factoring in extended service intervals, reduced seal wear, and elimination of secondary damage to cylinder rods.

Why Engineers Specify Through Us

Authenticity & Documentation

Each PHS6 bearing is supplied with an SKF Certificate of Conformity (CoC) referencing the original SKF manufacturing batch, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report certified to ISO 2768-mK tolerances. Original SKF packaging features holographic anti-counterfeiting labels verifiable via SKF Verify app. For orders exceeding 500 units, customers may request third-party witnessed inspection at SKF’s Gothenburg or Schweinfurt facilities prior to shipment. Authorization status can be verified directly through SKF’s Partner Portal using our registered entity ID: EMEA-CHN-ESJ-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any rod end bearing, industrial engineers must quantify actual operating parameters: peak radial load (kN), oscillation angle (°), frequency (cycles/min), ambient temperature range (°C), and available mounting envelope (mm). Our engineering team conducts free application analysis — including SKF BEAM-based life calculation, surface pressure mapping, and PV factor validation — within 48 hours of receiving your data sheet. For projects ≥$50,000, we supply functional PHS6 samples with pre- and post-test dimensional reports. Every day spent on unvalidated selection risks unplanned downtime — correct engineering starts with the first technical dialogue.
