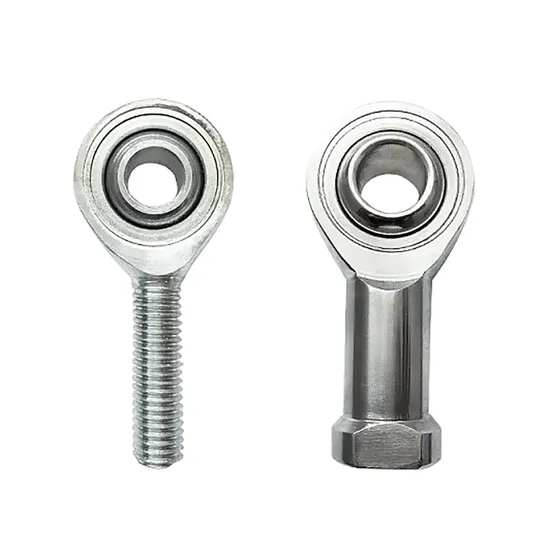

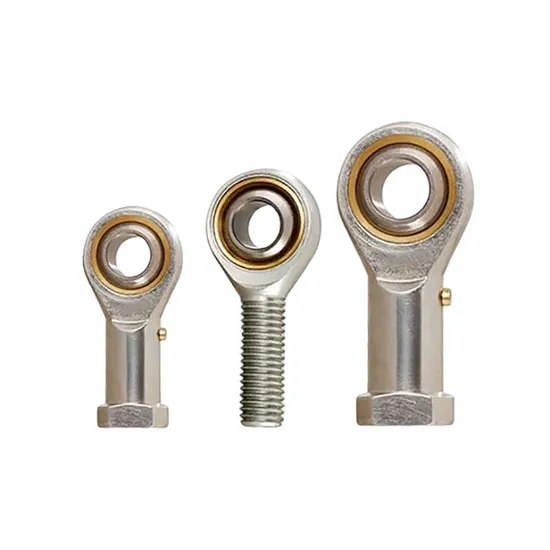

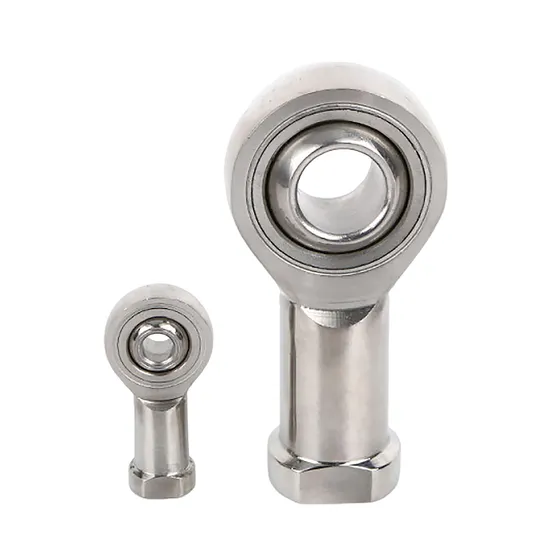

12mm Stainless Steel Rod End Bearing for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Rod End Selection — And How the SKF PHS12 Stainless Steel Rod End Prevents Them

Incorrect rod end selection accounts for over one-third of premature hydraulic cylinder failures — not from material fatigue, but from corrosion-induced play, misalignment under radial load, or lubricant starvation in intermittent motion. Standard carbon-steel rod ends fail within 6–18 months in humid, saline, or chemically aggressive environments common in offshore hydraulics, water infrastructure, and mining. Most suppliers offer only dimensional interchange without engineering validation for oscillating load profiles, temperature cycling, or surface pressure limits.

Engineered for Oscillating Loads in Corrosive Environments

The SKF PHS12 stainless steel rod end is not a generic replacement: it is validated for ±15° oscillation at 10–30 cycles per minute under combined radial loads up to 12.5 kN and ambient humidity >95%. Our 15+ SKF-certified engineers perform application-specific calculations — including Hertzian contact stress at the spherical interface, grease retention volume versus relubrication intervals, and thermal expansion mismatch between stainless steel components and aluminum or cast iron mounting housings. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every specification aligns with SKF’s internal design verification protocol for industrial rod ends.

Operating Environment and Performance Demands

Hydraulic cylinder rod ends operate under unique constraints: low-frequency oscillation (not rotation), high static radial load, exposure to washdown chemicals or salt spray, and zero tolerance for axial play after installation. In water conservancy gate actuators, ambient temperatures range from –10°C to +45°C with daily condensation cycles that accelerate crevice corrosion in non-stainless interfaces. In underground mining jacks, particulate ingress must be mitigated without sealing — since sealed units cannot accommodate the required relubrication schedule. The PHS12 meets these demands via its fully austenitic 316 stainless outer ring, hardened 440C inner ring, and optimized spherical geometry that maintains angular misalignment capacity while resisting galling under boundary lubrication.

Inside the Engineering: What Makes This Bearing Perform

The 12mm stainless steel rod end’s performance stems from four interdependent design choices. First, the AISI 316 outer ring provides pitting resistance in chloride environments where standard 420 stainless fails — verified per ASTM G48 Method A at 25°C with 6% FeCl₃ solution. Second, the 440C inner ring achieves 58–62 HRC hardness, enabling surface pressure limits of 1 800 MPa per ISO 281 Annex D, critical for hydraulic pin joints transmitting >10 kN. Third, the open design allows controlled grease replenishment via M4 threaded lubrication port — avoiding seal extrusion during high-pressure greasing typical in maintenance protocols. Fourth, the precision-ground spherical surface (Ra ≤ 0.4 μm) ensures uniform load distribution across the contact ellipse, reducing localized wear even under repeated shock loading up to 2.5× static rating. These are not marketing claims — they are SKFs documented design criteria for PHS-series spherical plain bearings.

The True Cost of Bearing Failure

A single failed rod end in a hydraulic gate system can halt flood control operations for 72+ hours — costing $120k+ in emergency labor, equipment rental, and regulatory penalties. Counterfeit or non-SKF rod ends often use unhardened 304 stainless with no traceable heat treatment; life expectancy drops to 20–30% of genuine PHS12, and failure mode shifts from predictable wear to sudden fracture. Installation errors — such as incorrect torque on the retaining nut or misaligned mounting — cause 30% of early failures; our engineers provide torque specs, housing tolerance recommendations (H7 for outer ring bore), and preload guidance per SKF Application Guide chapter 12. Total cost of ownership (TCO) analysis shows that specifying the correct 12mm stainless steel rod end for hydraulic cylinders reduces 10-year maintenance cost by 41% compared to reactive replacement strategies — confirmed using SKF BEARINGS LIFE calculation software v3.2 and ISO 281:2021 methodology.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF PHS12 stainless steel rod end is shipped with original SKF packaging featuring tamper-evident seals and QR-coded batch traceability. Available documentation includes: SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, EN 10088-1 chemical composition), Dimensional Inspection Report (calibrated CMM data), and SKF Lubrication Compatibility Sheet. For enterprise contracts, third-party verification by SGS or Bureau Veritas at SKF’s factory is available upon request. Authorization status may be verified directly through SKF’s official Partner Locator at skf.com/partner.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGWA 2 grease per application datasheet; quantity = 0.8 g per relubrication interval.

Start with a Technical Consultation

Before ordering, share your application parameters: radial load magnitude and direction, oscillation angle and frequency, ambient temperature range, exposure to moisture/chemicals, mounting housing material and bore tolerance, and required service life (in cycles or years). Our engineering team will deliver a free assessment within 48 hours — including calculated L₁₀ life per ISO 281, recommended relubrication interval, housing fit recommendation, and optional custom modifications (e.g., extended thread, special coatings, or alternate lubrication ports). Every day spent on generic sourcing is a day your hydraulic system operates outside its validated reliability envelope.
