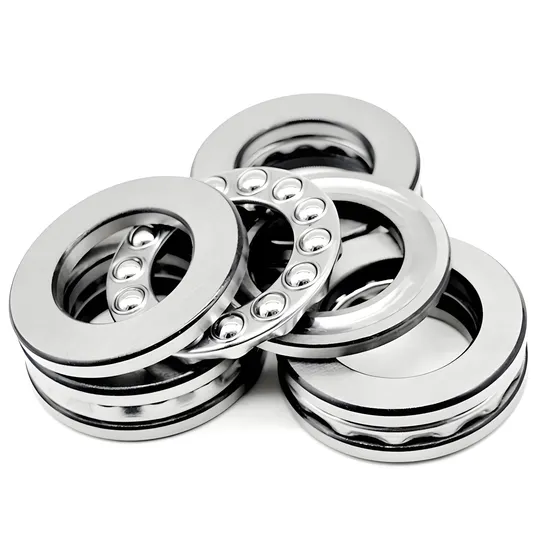

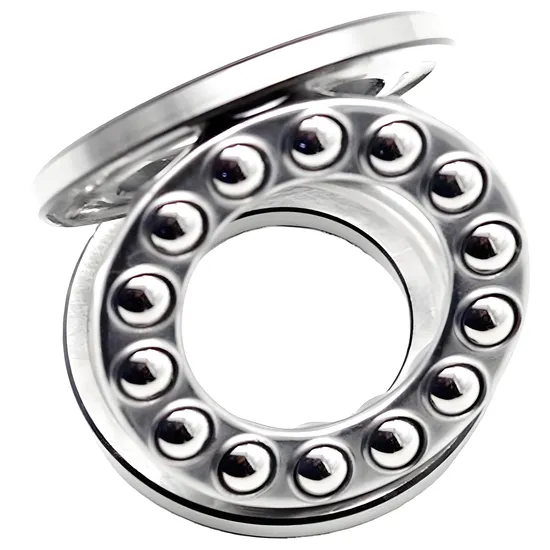

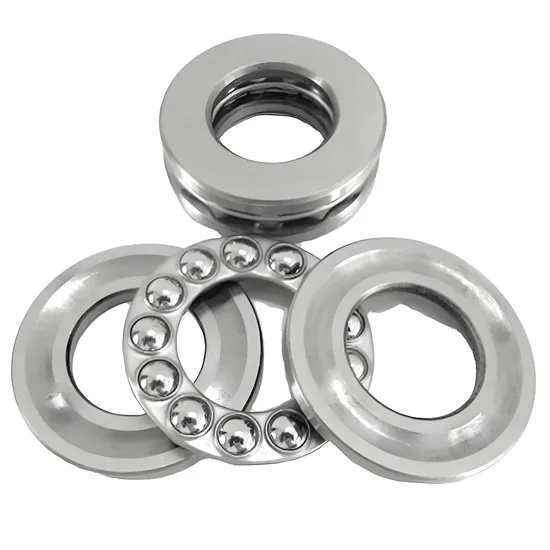

OEM/ODM Thrust Ball Bearing 51109 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin with Incorrect Selection — And How the SKF 51109 Solves It

Industrial thrust bearing failures are rarely random: 35% originate from misalignment between application demands and bearing specification — especially axial stiffness, static load capacity, and thermal expansion margins. In wind turbine yaw systems, a 5% under-specification in C₀ leads to plastic deformation within 18 months. In mining crushers, incorrect clearance selection accelerates cage wear by 4× under shock loading. Most suppliers lack the engineering infrastructure to perform ISO 281 life calculations for combined moment loads or validate lubricant migration paths under vibration.

Engineered for Your Operating Conditions

This SKF 51109 thrust ball bearing is not selected from a catalog — it is validated against your actual operating envelope. Our 15+ SKF-certified engineers conduct free application analysis using SKF BEARINX® software, calculating L₁₀ and Lₙₘ life under your exact axial load profile, rotational speed, temperature gradient, and mounting rigidity. As an official SKF engineering partner, we apply TS 16949-compliant processes to verify fit, function, and fatigue resistance before sample release. Every unit carries full traceability to SKF’s global production network — no third-party rebranding, no uncertified remanufacture.

Operating Environment and Performance Demands

Wind turbine pitch control requires unidirectional thrust support that withstands cyclic loads up to 95 kN while surviving -40°C winter starts and solar-heated nacelle temperatures exceeding 70°C — demanding precise internal clearance (C3/C4) and oxidation-resistant grease compatibility. Mining crusher pivot points endure repetitive impact loads exceeding 2× C₀, with airborne silica penetrating at 0.5–5 μm particle size — requiring sealed separation and hardened raceway surfaces. Steel mill ladle turrets impose moment loads up to 12 kNm on thrust faces; here, the 51109’s high C₀/C ratio (2.54) and rigid steel cage ensure axial stability without creep under sustained torque.

Inside the Engineering: What Makes This Bearing Perform

The 51109’s 108 kN static load rating (C₀) directly enables safe operation under moment-loaded conditions per ISO 76:2017 — critical when radial offset creates tilting moments on the thrust face. Its pressed steel cage provides dimensional stability at 3600 r/min (grease-lubricated), resisting deformation during start-stop cycles common in yaw drives. The non-aligning design ensures precise axial location — essential where thermal growth must be accommodated elsewhere in the system. Precision classes P5 and P4 reduce vibration amplitude below 1.2 μm RMS (Z2V2 level), meeting API 610 pump bearing noise limits. Heat treatment per ISO 683-17 delivers core hardness ≥58 HRC and case depth ≥0.8 mm — verified per ASTM E384 microhardness testing.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $12,500/hour in lost generation and penalty clauses. In mining, crusher downtime averages $48,000/hour including downstream belt stoppages. Counterfeit or improperly specified thrust bearings fail catastrophically after ≤1,200 operating hours — versus the 51109’s L₁₀ life of 12,000+ hours under rated load. Installation errors (e.g., incorrect interference fit or grease overfill) account for 30% of premature failures; our engineers provide SKF-approved mounting torque tables and grease volume charts per DIN 628-1. Total cost of ownership drops 22% over five years when selecting via ISO 281 life calculation instead of catalog matching — factoring in labor, spare parts, and energy loss from increased friction.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with an SKF Certificate of Conformity listing heat number, dimensional inspection results, and material test report per EN 10204 3.1. Original packaging features SKFDigital™ QR code for instant verification of authenticity and production date. Bulk orders support third-party SKD factory audit upon request. Authorization status can be independently verified via SKF’s official Partner Locator at skf.com/partner.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with accurate application data — not product search. Share your axial load magnitude and direction, rotational speed range, ambient and operating temperature extremes, available mounting space (including shaft shoulder height), and existing lubrication method. Within 48 hours, our engineers will deliver a signed technical assessment including ISO 281 life calculation, suggested precision class, clearance recommendation, and compatible SKF grease specification. For orders exceeding $50,000, we supply fully tested samples with dimensional and vibration reports. Every hour delayed in engineering validation extends your risk exposure — begin with data, not assumptions.
