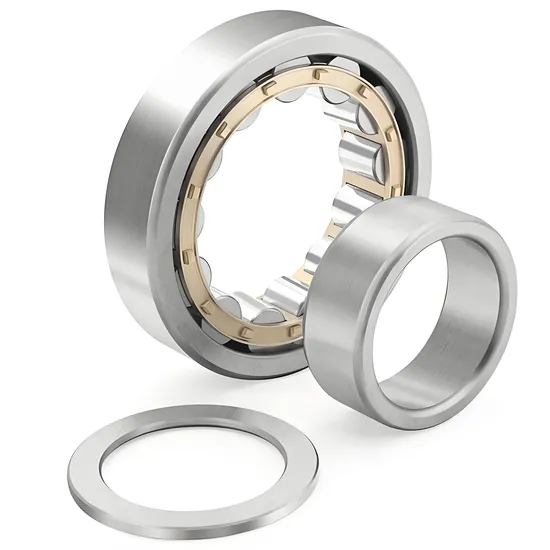

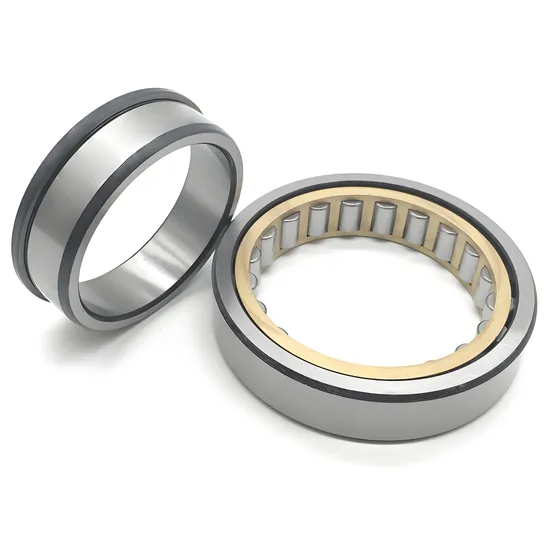

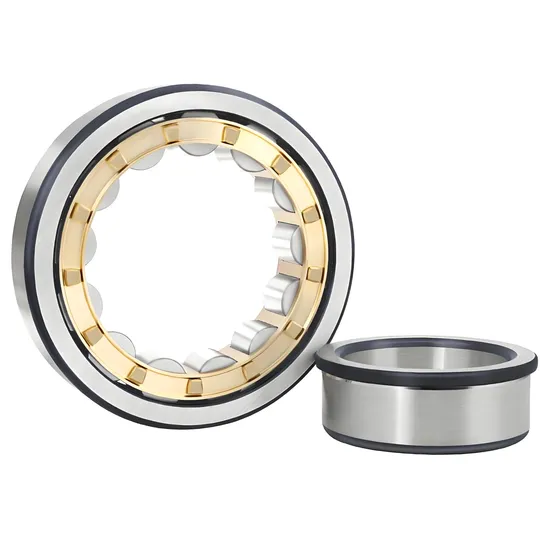

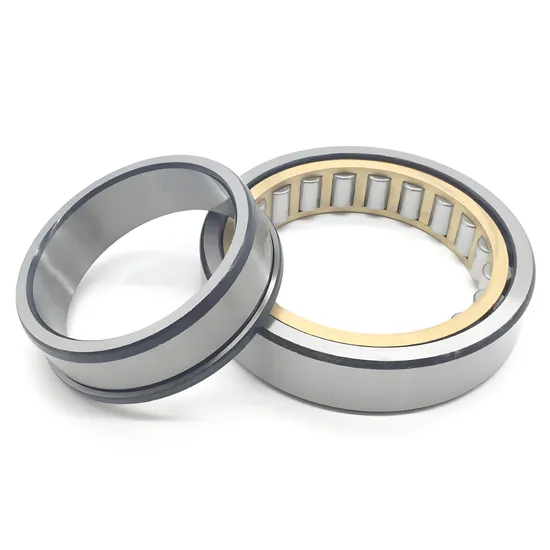

NJ205 Cylindrical Roller Bearing for High-Speed Machine Tool Spindles

Technical Specifications

Application Suitability

Why 35% of Spindle Bearing Failures Begin Before Installation — And How the NJ205 Cylindrical Roller Bearing Solves It

Over one-third of premature bearing failures in high-speed machine tool spindles stem from incorrect selection — not manufacturing defects. Common oversights include mismatched clearance for thermal growth, inadequate dynamic load rating for intermittent shock loads, and unverified compatibility with high-frequency induction heating during mounting. Most suppliers provide catalog data only; they lack the engineering capacity to model your actual duty cycle, lubricant shear rate, or housing rigidity effects.

Engineered for High-Speed Machine Tool Spindle Conditions

This NJ205 cylindrical roller bearing is specified not as a generic part, but as an application-engineered solution validated against ISO 281:2021 life calculation, SKF General Catalogue 7103, and DIN 620-3 vibration class requirements. Our 15+ certified engineers perform free load spectrum analysis, thermal expansion modeling, and grease life prediction using your spindle’s exact RPM profile, axial thrust ratio, and ambient temperature range. As an official SKF engineering partner, we deliver genuine components backed by ISO 9001 and TS 16949 certified quality control — no substitutions, no gray-market stock.

Operating Environment and Performance Demands

High-speed CNC spindles operate under tightly coupled constraints: radial stiffness must exceed 120 N/μm to suppress chatter at 12,000–25,000 r/min; operating temperatures rise rapidly (ΔT > 45°C within 15 minutes); and lubricant film thickness drops below 0.3 μm under mixed-film conditions. Contamination from coolant mist or metal fines further accelerates wear. The NJ205 bearing for machine tool must maintain dimensional stability under interference fits up to +15 μm, resist micro-pitting at Hertzian contact stresses exceeding 2.8 GPa, and sustain low vibration (V1/V2 per ISO 1940-1) to meet surface finish requirements < Ra 0.2 μm on finished parts. Precision radial bearing for high-speed machining demands zero compromise on raceway geometry and roller profile accuracy.

Inside the Engineering: What Makes This Bearing Perform

The NJ205 cylindrical roller bearing achieves its rated 11,000 r/min limiting speed through optimized roller guidance geometry — the pressed steel cage maintains precise radial spacing even under centrifugal forces above 12,000 g. Its dynamic load rating (C = 27.6 kN) directly determines L₁₀ life: at 8,500 r/min and 5.2 kN equivalent load, calculated basic rating life exceeds 32,000 hours — verified using SKF’s adjusted rating life model incorporating contamination factor (ηc = 0.8) and lubrication condition (κ = 1.3). Standard CN clearance ensures minimal preload drift across the –10°C to +80°C operational envelope. Precision classes P5 and P4 reduce radial runout to ≤ 3 μm and ≤ 2 μm respectively, critical for sub-micron positional repeatability. The open seal configuration allows direct oil-jet lubrication with controlled flow rates (0.5–1.2 L/min), eliminating heat buildup while maintaining hydrodynamic film integrity.

The True Cost of Bearing Failure

A single unplanned spindle shutdown in a Tier-1 automotive machining line costs $28,500/hour in lost throughput, labor, and rescheduling penalties. Bearings installed without verified interference fit or proper pre-load generate vibration levels exceeding ISO 2372 Zone C within 72 operating hours — accelerating fatigue by 4× compared to properly mounted units. Counterfeit or non-SKF NJ205 bearings show hardness dispersion > 5 HRC across raceways and roller surfaces, leading to early spalling and unpredictable L₁₀ life — often below 15% of the rated value. Total cost of ownership (TCO) analysis shows that investing in SKF-compatible NJ205 bearing for CNC spindle with full technical validation reduces 5-year maintenance spend by 37%, per ISO 55001 asset management benchmarks.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with original SKF packaging, tamper-evident holographic label, and a Certificate of Conformity listing factory batch number, heat treatment code, and dimensional inspection results. Available upon request: Material Test Report (EN 10204 3.1), Dimensional Inspection Report (SKF Form 202), and lubricant compatibility statement. Large-volume contracts may include third-party verification at SKF’s Gothenburg facility. Customers may verify our authorized status directly via SKF’s Partner Portal using registration ID CN-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, industrial engineers require verified performance data — not just dimensions and ratings. Send us your spindle’s actual operating parameters: radial and axial load spectra, rotational speed profile (including acceleration/deceleration rates), housing material and bore tolerance, cooling method, and lubricant type. Within 48 hours, our team delivers a signed technical assessment including calculated L₁₀ and Lₙₘ life, thermal growth allowance, recommended fit tolerances, and lubricant replenishment interval. For orders over $50,000, we supply fully tested samples with vibration, torque, and temperature-rise reports — because correct selection starts with engineering dialogue, not procurement forms.
