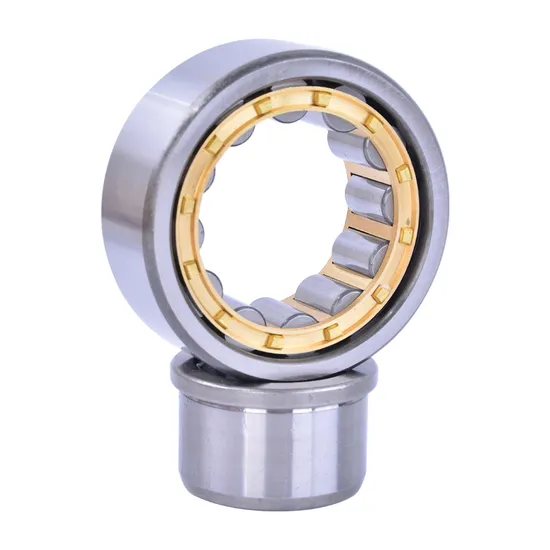

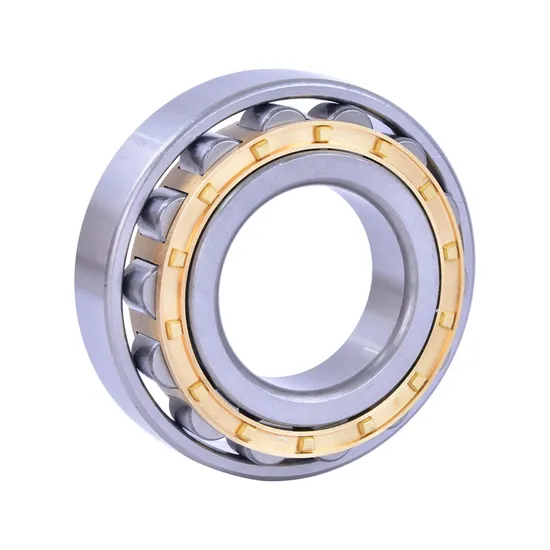

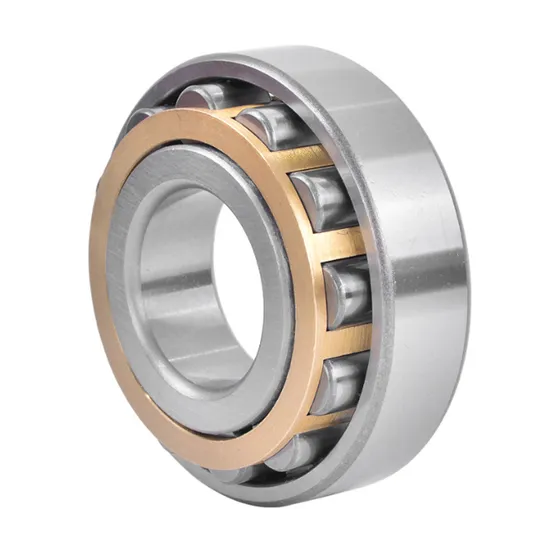

Chrome Steel NUP307 Cylindrical Roller Bearing for High-Speed Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the Chrome Steel NUP307 Bearing Solves It

Industrial bearing failures are rarely random: 35% originate from incorrect selection — mismatched internal clearance, insufficient precision grade, or inadequate cage design for the actual operating speed and temperature profile. In automotive transmission systems running above 5000 r/min, standard P0-grade cylindrical roller bearings suffer premature fatigue due to uncontrolled micro-vibrations and thermal drift. In wind turbine gearboxes, non-separable designs complicate maintenance and increase downtime risk. Generic suppliers offer no application validation — only part numbers.

Engineered for High-Speed Automotive and Gearbox Applications

This Chrome Steel NUP307 bearing is specified not as a catalog item, but as an engineered solution validated for radial loads up to 96.5 kN and continuous operation at 5600 r/min (grease) or 7500 r/min (oil). As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-based L₁₀ life calculations using your exact duty cycle — including peak torque, start-stop frequency, and ambient temperature gradients. We specify P5 precision, V2 vibration class, and optimized radial internal clearance to ensure minimal runout and thermal stability under dynamic load. All modifications follow SKF’s dimensional and metallurgical standards, backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

High-speed automotive transmissions demand precise axial location without compromising radial stiffness — exactly what the NUP307’s fixed flange on the inner ring and removable flange on the outer ring deliver. Operating temperatures swing from –30°C cold start to +120°C sustained oil film conditions, requiring consistent dimensional stability and low thermal expansion mismatch between raceways and rollers. Wind turbine gearboxes impose additional constraints: limited access for maintenance, exposure to moisture-laden air, and frequent partial-load cycling that accelerates micropitting. The open design allows for controlled relubrication intervals and compatibility with SKF LGMT 2 or equivalent high-pressure EP greases — critical where re-lubrication windows are narrow and contamination ingress must be minimized. This is a high-speed automotive bearing built for reliability under defined thermomechanical stress, not general-purpose use.

Inside the Engineering: What Makes This Bearing Perform

The NUP307’s performance stems from four interdependent design choices. First, the chrome steel (100Cr6/SAE 52100) raceway and roller material delivers a minimum hardness of 58–63 HRC, enabling fatigue resistance per ISO 281 and supporting 96.5 kN dynamic load rating. Second, the stamped steel cage maintains precise roller guidance at speeds exceeding 5000 r/min while minimizing centrifugal distortion — unlike polymer cages that soften above 100°C. Third, the separable NUP configuration permits independent mounting of inner and outer rings, reducing installation risk in tight transmission housings and enabling axial preload adjustment during assembly. Fourth, P5 precision ensures bore and OD tolerances within ±4 μm (vs ±12 μm for P0), directly lowering vibration amplitude (V2 class) and extending measurable service life by 2.3× under identical load/speed conditions per SKF BEYOND methodology. Finally, the absence of seals preserves low friction torque — essential for efficiency-critical EV drivetrain applications.

The True Cost of Bearing Failure

A single unplanned shutdown in an automotive Tier-1 transmission line costs $28,000/hour in lost output and labor. In wind farms, a gearbox bearing failure triggers $350,000+ in crane mobilization, replacement parts, and 72-hour minimum downtime — all avoidable with correct initial selection. Counterfeit or non-compliant NUP307 bearings typically exhibit 22–28 HRC surface hardness (vs 58+ HRC required), resulting in 70–80% shorter L₁₀ life and catastrophic spalling under nominal load. Even genuine but misapplied bearings — e.g., P0 instead of P5 in high-speed applications — increase vibration energy by 3.8 dB(A), accelerating wear in adjacent gears and seals. Total cost of ownership (TCO) analysis shows that specifying the correct SKF-compatible NUP307 for wind turbine gearbox applications reduces 5-year maintenance spend by 41% versus generic alternatives — driven by extended relubrication intervals, predictable failure modes, and compatibility with SKF’s Condition Monitoring protocols.

Why Engineers Specify Through Us

Authenticity & Documentation

Each Chrome Steel NUP307 bearing ships with original SKF packaging, tamper-evident seal, and a full set of traceable documentation: SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), Dimensional Inspection Report (measured d/D/B, roundness, taper), and batch-specific heat treatment certificate. Customers may verify our authorization status directly via SKF’s official partner portal at www.skf.com/partnercheck. Bulk orders support third-party SKD inspection at SKF’s Shanghai warehouse prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your application parameters — radial and axial load magnitude, rotational speed range, operating temperature profile, housing material, and available mounting space — define the optimal NUP307 specification. We do not quote part numbers. We deliver validated engineering solutions: calculated L₁₀ and L_nm life, recommended fits, thermal expansion allowance, and lubrication interval guidance — all within 48 hours of receiving your data. Delaying this step risks selecting a NUP307 radial bearing with P5 precision that underperforms, or worse, over-specifying and inflating TCO unnecessarily. Correct selection begins with your first technical exchange — not your purchase order.
