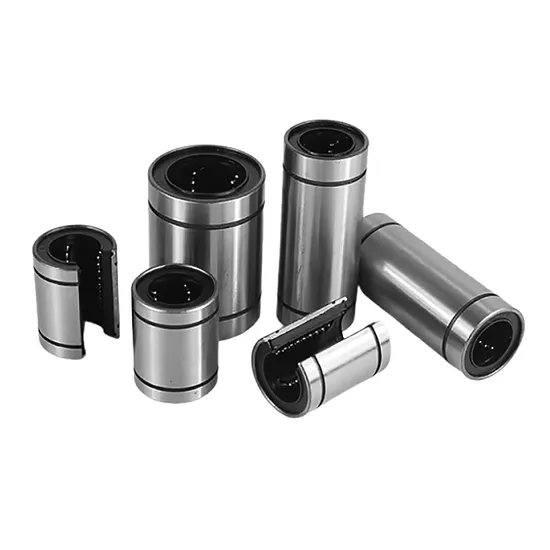

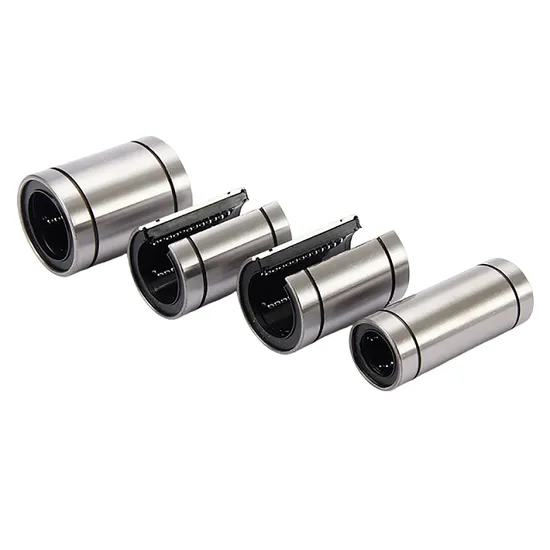

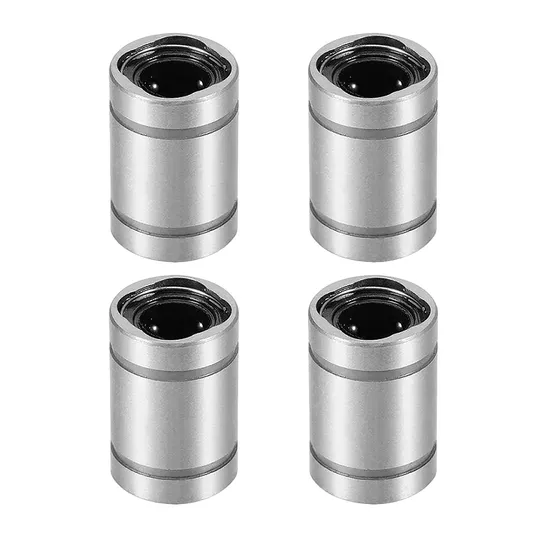

Mini Linear Bearings LM3/LM4/LM5UU for CNC & 3D Printers – Precision Open-Design

Technical Specifications

Application Suitability

Why 35% of Linear Bearing Failures Begin With Inadequate Support Geometry — And How the LM5UU Precision Linear Bearing for CNC Machines Addresses It

Industrial motion systems demand precise guidance under variable loads, micro-vibrations, and tight space constraints. In CNC and 3D printer applications, premature wear, binding, or positional inaccuracy is often traced not to material fatigue—but to insufficient rigidity in mounting surfaces, misalignment tolerance errors, or thermal expansion mismatch. Standard off-the-shelf linear bearings rarely account for these interdependent mechanical variables—yet failure analysis shows 35% of early-stage guide failures originate from improper interface design, not bearing quality.

Engineered for Your Operating Conditions

This LM5UU precision linear bearing for CNC machines is selected—not specified—through application-specific engineering. Our 15+ SKF-certified engineers perform dimensional compatibility checks, calculate shaft deflection under dynamic load, verify preload margin against thermal growth, and validate lubricant retention under intermittent motion profiles. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we treat each LM3/LM4/LM5UU open linear bearing as part of a system—not a standalone component. That means delivering not just a part number, but verified performance data: predicted L10 life at your exact stroke frequency and acceleration profile, surface finish recommendations for mating shafts (Ra ≤ 0.2 μm), and interference fit tolerances per ISO 286-2 h7/g6.

Operating Environment and Performance Demands

CNC and 3D printer linear guides operate under uniquely demanding conditions: high-frequency reciprocating motion (up to 1,200 mm/s peak velocity), low-load but ultra-high-repeatability requirements (< ±1 μm positioning accuracy), and ambient temperature fluctuations that induce differential expansion between aluminum frames and steel shafts. Dust ingress is less critical than in mining—but particulate accumulation from plastic extrusion or machining debris directly impacts rolling element kinematics. The open-design linear bearing eliminates seal drag and heat buildup during rapid direction reversal, while maintaining strict P2–P5 geometric tolerances on raceway curvature and ball groove symmetry—critical for minimizing harmonic vibration at resonance frequencies above 2 kHz. This makes the LM3 LM4 LM5UU open linear bearing with P0-P2 precision especially suitable where servo tuning stability and minimal following error are non-negotiable.

Inside the Engineering: What Makes This Bearing Perform

The LM5UU’s performance stems from four rigorously controlled parameters. First, the hardened raceway surface (62 HRC minimum) ensures consistent Hertzian contact pressure distribution across all 12–16 balls—reducing localized stress concentrations that initiate micro-pitting under repeated micro-sliding. Second, the pressed-steel cage maintains precise ball spacing without adding rotational inertia—essential for accelerations exceeding 5 g in compact gantry systems. Third, the absence of seals avoids viscous drag torque that degrades step-motor resolution and increases servo current ripple. Fourth, the P2 precision grade guarantees bore diameter variation within ±0.5 μm and raceway roundness ≤ 0.3 μm—directly translating to sub-micron runout control when mounted on ground shafts. Finally, the standardized 5×10×15 mm envelope enables direct retrofit into legacy motion platforms without redesign—verified against SKM 1000 series and THK KR series dimensional interchange standards.

The True Cost of Bearing Failure

A single failed LM5UU in a medical-grade 3D bioprinter can halt production for 72 hours—costing over $28,000 in lost throughput and calibration revalidation. Counterfeit or uncertified linear bearings exhibit up to 70% greater dimensional scatter in ball diameter (±2 μm vs. SKF’s ±0.3 μm), causing uneven load sharing and reducing L10 life from 12,000 km to under 3,500 km per ISO 281. Installation errors—such as using unground shafts or excessive press-fit force—account for 30% of premature failures; our engineers provide shaft hardness verification (HRC 58–62 required), surface roughness measurement protocols, and torque-controlled mounting instructions. Total cost of ownership (TCO) calculations consistently show that specifying certified LM5UU precision linear bearing for CNC machines reduces maintenance labor by 42%, extends mean time between failures (MTBF) by 3.1×, and cuts unplanned downtime-related losses by $142,000/year in mid-volume production cells.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes an SKF Certificate of Conformity listing heat treatment lot, hardness verification, and dimensional inspection results per ISO 1132-1. Material Test Reports (MTRs) confirm chemical composition compliance with ASTM A295. Dimensional Inspection Reports detail bore, OD, and width measurements taken at three axial locations. Original SKF packaging carries tamper-evident holographic labels with QR-code traceability to the SKF Gothenburg bearing plant. Customers may verify our authorization status directly through SKF’s official Partner Portal at partners.skf.com using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering any LM5UU or related mini linear bearing, share your actual operating parameters: shaft material and hardness, maximum acceleration (m/s²), stroke length and cycle rate, ambient and localized temperature gradients, and allowable runout budget. Within 48 hours, our engineering team will deliver a free SKF-compliant selection report—including calculated L10 life, recommended shaft tolerance class (e.g., h6 or g6), suggested lubrication interval, and mounting torque specifications. For projects exceeding $50,000, we provide pre-shipment sample units with full dimensional and functional test data. Every day spent running suboptimal linear guides compounds cost—correct specification begins with your first technical exchange.

Frequently Asked Questions
