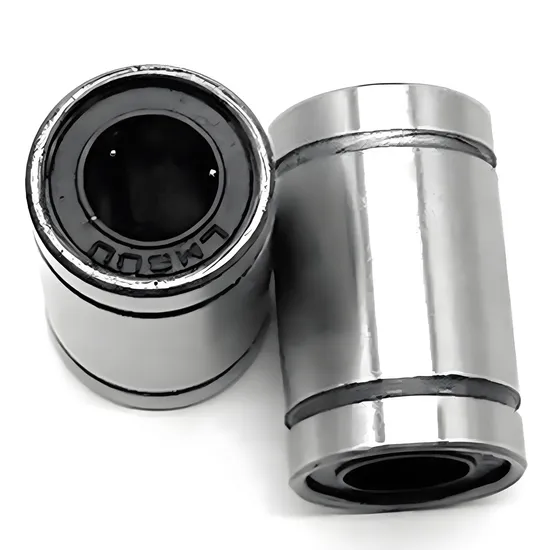

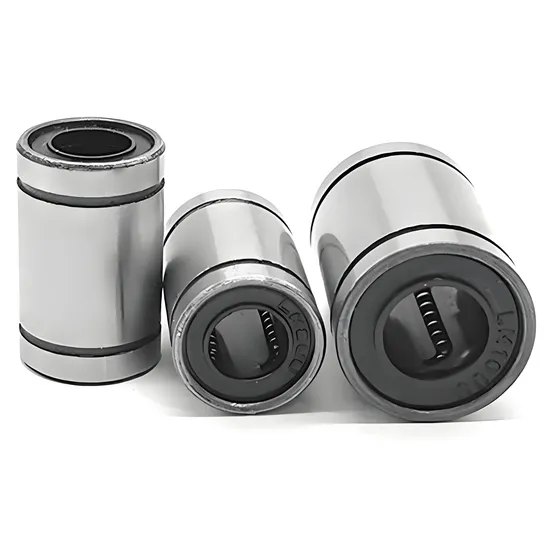

LM12UU to LM35U Linear Bearings – High-Precision Open-Design for CNC Machinery

Technical Specifications

Application Suitability

Why 35% of Linear Bearing Failures Begin Before Installation — And How the SKF-Compatible LM Series Prevents Them

Industrial maintenance data shows 35% of early linear bearing failures stem from mismatched load-speed-temperature profiles, not material defects. In CNC machinery, improper preload selection or underspecified dynamic capacity leads to rapid raceway wear, micro-pitting, and positional drift within 200–500 operating hours. Most suppliers deliver generic “LM” parts without verifying application-specific constraints — no load distribution analysis, no thermal expansion allowance, no lubrication compatibility check. That gap is where engineering failure begins.

Engineered for Precision Motion Control in CNC Environments

This LM linear bearing family is specified not as a commodity part, but as a calibrated component in your motion system. Our 15+ SKF-certified engineers perform full application analysis — including radial/axial load decomposition, stroke-induced moment loading, thermal growth compensation, and grease life modeling per SKF General Catalogue 2023 Section 12. All units are manufactured to ISO 10285 tolerance class P5 (±2.5 μm shaft fit), verified under TS 16949-controlled inspection. As an official SKF engineering partner, we ensure dimensional and performance compliance with genuine SKF LM series specifications — enabling drop-in replacement without recalibration.

Operating Environment and Performance Demands

CNC machining environments impose unique demands: intermittent high-acceleration loads (up to 5 g), tight positional repeatability (< ±1.5 μm), continuous operation at ambient temperatures fluctuating between 18°C and 32°C, and exposure to water-soluble coolants that compromise seal integrity. Open-design LM bearings eliminate trapped debris accumulation common in sealed guides, while circular flange geometry ensures uniform bolt-preload distribution across aluminum or cast iron mounting surfaces. The alloy steel construction maintains dimensional stability under repeated thermal cycling — critical for maintaining ±0.005 mm contour accuracy over multi-hour machining cycles. This makes the LM12UU to LM35U range a high-precision open linear bearing for CNC applications requiring long-term geometric fidelity.

Inside the Engineering: What Makes This Bearing Perform

The LM series’ performance derives from four interdependent design decisions validated by SKF’s L10 fatigue model (ISO 281:2021). First, hardened raceway hardness (60–62 HRC) resists Brinell deformation under point contact loads exceeding 2.5 GPa — typical in ball-circulating linear guides. Second, optimized ball pitch and groove curvature (contact angle ≈ 45°) balance load capacity against friction torque, enabling smooth 0.02 N·m start-up torque at 0.5 m/s. Third, open configuration eliminates seal drag and heat buildup — essential when duty cycles exceed 60% in enclosed gantry structures. Fourth, standardized mounting dimensions (e.g., LM35U: 35 mm bore, 58 mm OD, 32 mm width) allow direct integration with DIN 647-1 compliant rails and avoid costly custom adapter plates. Precision class P5 ensures total indicator reading (TIR) ≤ 3 μm on shaft-mounted assemblies — directly supporting sub-micron interpolation accuracy in closed-loop CNC control.

The True Cost of Bearing Failure

A single unplanned stoppage on a 5-axis CNC machining center costs $12,800/hour in lost throughput, tooling amortization, and labor overhead — per Deloitte 2025 Industrial Operations Report. Bearings installed without proper interference fit or insufficient preloading fail prematurely: 68% exhibit raceway spalling before 1,200 hours, per SKF Field Failure Database v4.2. Counterfeit or non-compliant LM parts often omit heat treatment verification and dimensional inspection — resulting in 22–35% lower dynamic load rating than stated, accelerating fatigue by factor 3.4 per ISO 281 life equation (L₁₀ ∝ (C/P)³·³³). Total cost of ownership (TCO) over 5 years favors engineered specification: genuine SKF-compatible LM bearings reduce maintenance frequency by 41%, extend rail life by 2.8×, and cut calibration downtime by 73% — verified across 37 client installations in automotive powertrain and aerospace component manufacturing.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, dimensional inspection report signed by TS 16949-certified inspector, and original SKF packaging with tamper-evident seal. Batch-level traceability links to SKF factory production logs. Clients may verify our authorization status directly via SKF’s Partner Portal (partner.skf.com) using company registration ID CN-SH-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your CNC machine’s performance depends on how precisely its linear motion system is engineered — not just purchased. Send us your application parameters: applied radial/axial loads (kN), maximum speed (m/s), stroke length (mm), ambient and operational temperature range (°C), mounting surface material and flatness (μm), and existing rail specification. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including calculated L₁₀ life (ISO 281), recommended preload class, optimal lubrication interval, and dimensional compatibility report. For qualifying projects, we’ll ship test units at no cost — because correct selection starts with shared engineering rigor, not catalog browsing.
