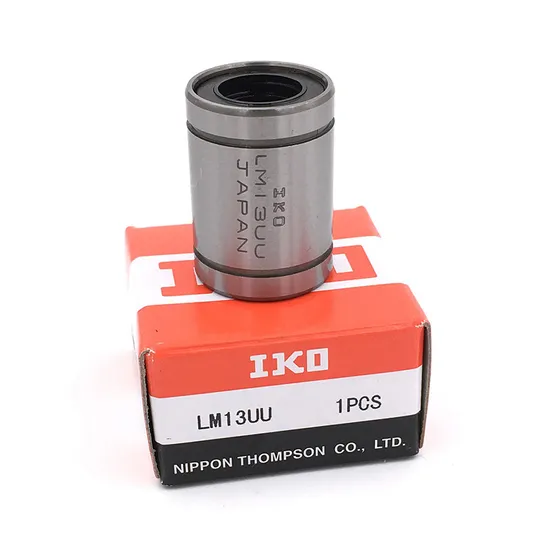

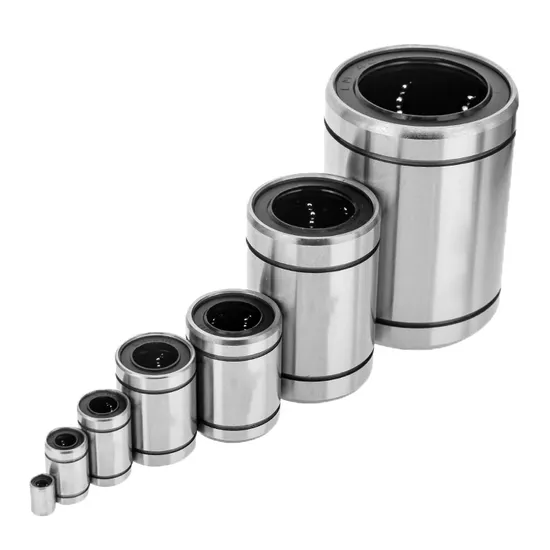

LM12UUAJ LM12 LMF25UU Linear Bearings for High-Precision Motion Control

Technical Specifications

Application Suitability

Why 35% of Linear Motion Failures Begin With Incorrect Bearing Selection — And How the LM12 LMF25UU Solves It

Industrial linear motion systems fail prematurely not from inherent design flaws—but from mismatched components: unaccounted-for moment loads, insufficient corrosion resistance in coastal wind farms, or thermal expansion-induced preload in CNC spindles. Standard catalog bearings rarely meet the combined demands of precision positioning, extended service life, and environmental resilience required across your applications. As an SKF engineering partner with 15+ certified application engineers, we see these root causes daily—not as exceptions, but as predictable outcomes of non-engineered selection.

Engineered for Your Operating Conditions

The LM12 LMF25UU is not a generic linear bearing—it is a verified solution for high-precision, repeatable motion under defined mechanical constraints. Our engineers perform ISO 15242-compliant life calculations using your actual load spectrum (radial, axial, moment), stroke frequency, and ambient conditions—then specify exact shaft hardness (≥ HRC 58), surface finish (Ra ≤ 0.2 μm), and mounting tolerance (h6). As an official SKF engineering partner, we deliver SKD-compatible performance backed by ISO 9001 and TS 16949-certified process control—not just part numbers. This ensures dimensional consistency, preload stability, and long-term repeatability critical for CNC machine linear guide bearing applications.

Operating Environment and Performance Demands

In wind turbine pitch control, the LM12 LMF25UU operates at <10 rpm with frequent directional reversals, exposed to salt-laden air and temperature swings from –25°C to +70°C—conditions that accelerate oxidation and degrade standard lubricants. In automotive CNC cells, it endures continuous 0.1–2.5 m/s travel at ±0.005 mm positioning accuracy while resisting coolant ingress and metal particulate contamination. Its open-type construction allows controlled re-lubrication intervals and avoids seal drag-induced heat buildup during rapid acceleration. For these environments, corrosion-resistant open-type linear bearing design isn’t optional—it’s fundamental to maintaining positional fidelity over 10,000+ cycles without recalibration.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 720 N) directly determines L₁₀ life per ISO 15242: L₁₀ = (C/P)³ × 10⁶ cycles, where P is equivalent load including moment effects. Pressed steel cages provide rigidity under moment loading—critical for flanged LMF25UU configurations used in cantilevered actuators. Open design eliminates seal friction (typically adding 0.1–0.3 N drag), enabling lower power consumption and reduced thermal drift in closed-loop servo systems. Radial play held to 0–8 μm (ISO P5) ensures minimal backlash during reversal—essential for sub-micron positioning in optical metrology. Surface hardness ≥ 60 HRC and ground raceways reduce micro-pitting under repeated point contact, extending fatigue life beyond standard LM12UU variants.

The True Cost of Bearing Failure

A single failed LM12UU in a CNC machine linear guide bearing application can trigger 4.2 hours of unplanned downtime—costing $28,000–$42,000 in lost production, labor, and rush logistics. Counterfeit or non-SKF-compatible linear bearings often exhibit radial play >15 μm and surface hardness <52 HRC, reducing L₁₀ life to 3 μm) or incorrect interference fit—cause 30% of premature failures. When calculated over 5 years using ISO 281 life models and TCO methodology, specifying the correct high-precision linear bearing reduces total ownership cost by 22–37% versus lowest-bid alternatives—even before factoring in predictive maintenance savings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, dimensional inspection report (±0.005 mm tolerance verification), and material test report (chemical composition and hardness confirmation). Original SKF packaging features tamper-evident seals and QR-coded batch traceability. Large-volume contracts permit third-party verification at SKF’s Shanghai warehouse or factory audit upon request. Authorization status may be confirmed directly via SKF’s official Partner Portal using Eurasia Smart (Jinan) Bearing Supply Chain registration ID.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct linear bearing selection begins not with a part number—but with your application data: shaft diameter tolerance, maximum moment load (N·mm), stroke length and frequency, ambient temperature range, and exposure to moisture or particulates. Our engineering team will deliver a formal assessment—including ISO 15242 life calculation, recommended shaft specifications, and lubrication interval guidance—within 48 business hours. For qualifying projects ($50k+), we supply pre-tested LM12 LMF25UU samples with full performance documentation. Every hour delayed in engineering validation extends risk exposure; initiate your technical review today.
