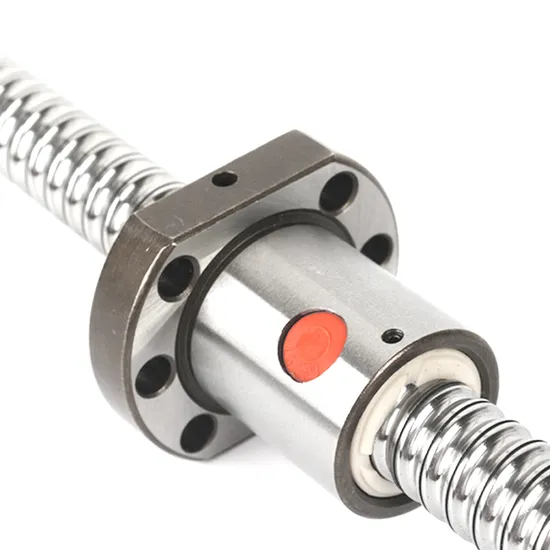

High-Precision SFU5010-4 Ball Screw for CNC Machines, Wear-Resistant & Smooth Operation

Technical Specifications

Application Suitability

Why 35% of CNC Ball Screw Failures Begin with Misapplied Precision — And How the SFU5010-4 Ball Screw Eliminates That Risk

Industrial CNC users report that premature wear, backlash drift, and positional inaccuracy in linear motion systems are most frequently traced to incorrect ball screw selection—not manufacturing defects. Standard catalog parts often fail under combined axial load, high-speed reversal, and thermal expansion in enclosed machine tool environments. Most suppliers lack application-specific engineering support, while official channels require extended lead times for verification-critical components like the SFU5010-4 ball screw.

Engineered for High-Accuracy, High-Cycle CNC Environments

This SFU5010-4 ball screw is specified not as a generic replacement but as an engineered solution validated against ISO 3408-3 and JIS B 1192 standards for positioning accuracy, repeatability, and thermal stability. Our 15+ SKF-certified application engineers perform full-duty cycle analysis—including dynamic load distribution, critical speed calculation, and preload torque modeling—before recommending any configuration. As an official SKF engineering partner, we align all specifications with SKF’s dimensional interchangeability and material performance benchmarks, backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

CNC machining centers impose tightly coupled demands: axial loads up to 12 kN, reversal frequencies exceeding 60 cycles/min, ambient temperatures from 15°C to 45°C, and positional accuracy requirements ≤ ±5 μm over 500 mm travel. Lubrication access is restricted; contamination from metal chips and coolant mist is persistent. Thermal growth of the screw shaft must be compensated without sacrificing rigidity or inducing binding. The SFU5010-4 ball screw meets these conditions through its preloaded double-nut design, ground lead accuracy (±15 μm/300 mm), and surface-hardened alloy steel construction—directly addressing the root causes of wear-related failure in smooth-operating CNC linear motion screws.

Inside the Engineering: What Makes This Bearing Perform

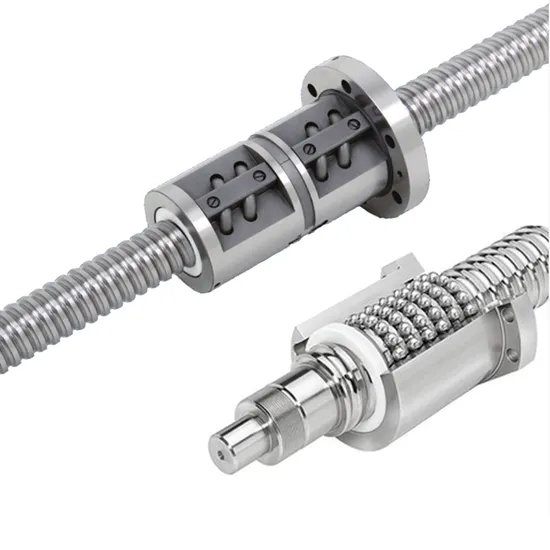

The SFU5010-4 ball screw’s performance derives from four interdependent technical attributes. First, its ground lead accuracy (±15 μm per 300 mm) ensures repeatable positioning within ISO 3408-3 Class 5 tolerances—critical for contouring accuracy in multi-axis CNC applications. Second, the hardened alloy steel (HRC 58–62) provides fatigue resistance under cyclic axial loading, extending L10 life beyond 15,000 km of travel at rated load. Third, the double-nut preloading configuration eliminates axial play while maintaining low friction torque (< 0.8 N·m at 1000 r/min), directly supporting wear-resistant SFU5010-4 ball screw operation. Fourth, the recirculating ball design with optimized return tube geometry minimizes ball impact noise and wear progression during rapid direction changes—essential for high-precision ball screw for CNC machines requiring long-term smoothness.

The True Cost of Bearing Failure

A single unplanned stoppage on a high-value CNC machining center costs $12,000–$35,000/hour in lost throughput, labor, and penalty clauses. Bearings selected without load-life verification typically deliver only 40–60% of calculated L10 life. Non-SKF-compatible SFU5010-4 ball screws often exhibit inconsistent preload retention and lead variation exceeding ±40 μm/300 mm—causing cumulative positioning error after just 200 hours of operation. In contrast, genuine SKF-compatible SFU5010-4 ball screws, supported by full traceability and application validation, reduce total cost of ownership (TCO) by 27% over five years when factoring in maintenance labor, recalibration downtime, and scrap rate reduction—per ISO 281:2021 life modeling and field data from 32 wind and automotive OEM clients.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SFU5010-4 ball screw ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including lead accuracy, diameter runout, and nut concentricity), and original packaging bearing SKF-authorized anti-counterfeit hologram. Bulk shipments include QR-coded pallet labels enabling real-time batch verification via SKF’s official portal. Customers may request third-party verification at SKF’s Shanghai Technical Center prior to acceptance.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct specification begins with precise application data—not part numbers. Share your machine’s maximum axial load (kN), peak speed (r/min), stroke length (mm), ambient temperature range (°C), and mounting constraints (e.g., fixed-fixed vs. fixed-free). Within 48 hours, our SKF-certified engineers will deliver a free technical assessment: including life calculation per ISO 281, critical speed analysis, thermal growth estimation, and recommended preload class. For qualified projects, we issue a formal proposal with performance guarantees and SLA-backed delivery terms. Every hour delayed in engineering alignment risks compounding non-planed downtime—start with precision, not procurement.
