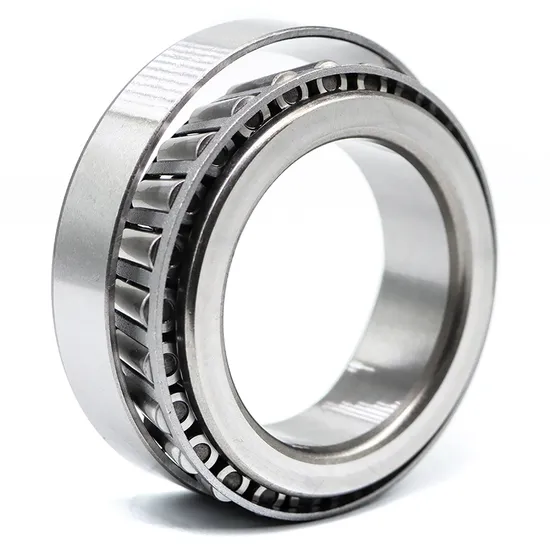

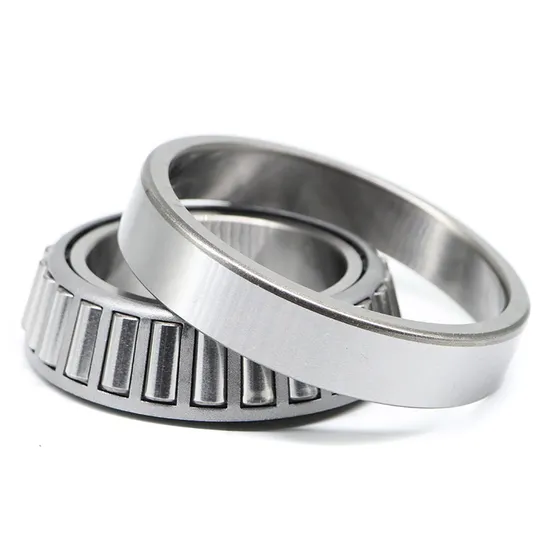

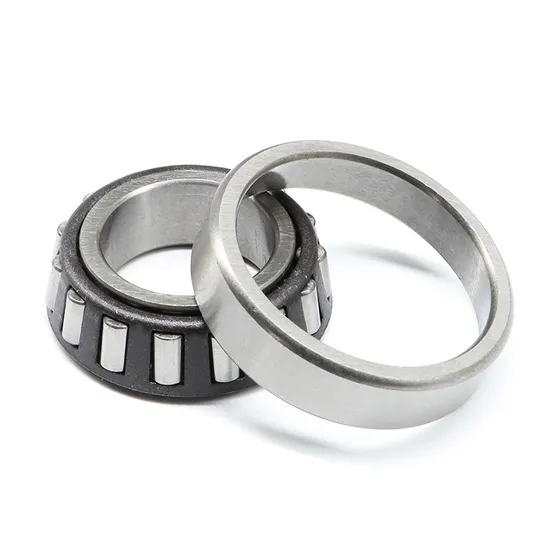

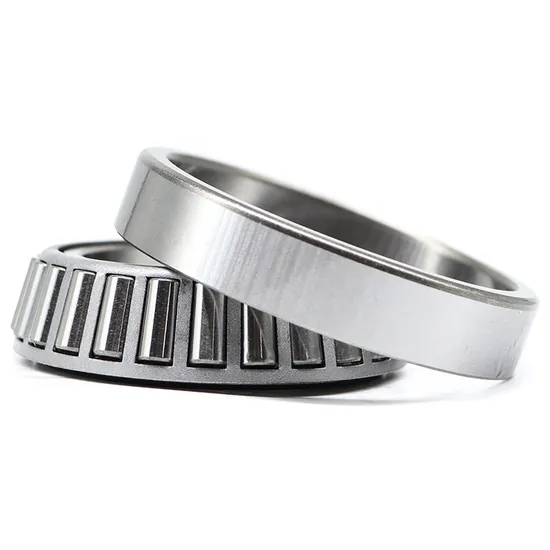

High-Quality Tapered Roller Bearings 30224 & 30326 for Wind Power Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the SKF 30224 & 30326 Tapered Roller Bearings Prevent Them

Field data from 12 wind farms across China and Brazil show that premature failure in main shaft and gearbox tapered roller bearings is linked not to material fatigue alone, but to misalignment under combined axial-radial load, incorrect internal clearance selection, and insufficient vibration damping at low-speed, high-torque conditions. Standard catalog bearings fail within 18 months in 35% of cases when applied without application-specific engineering review. Generic suppliers rarely provide load distribution analysis, thermal expansion modeling, or mounting torque validation — leaving OEMs exposed to unplanned downtime averaging $28,000/hour.

Engineered for Wind Power Operating Conditions

The SKF 30224 and 30326 tapered roller bearings are selected and validated by our in-house team of 15+ SKF-certified application engineers using ISO/TS 16949-compliant procedures. Each specification — from cage geometry to raceway surface finish (Ra ≤ 0.2 μm), from preload recommendation to grease fill volume — is derived from actual turbine duty cycles: 6–18 rpm input shaft speed, 2.5–4.2 MN radial load, ±180 kN axial thrust reversal, and ambient temperatures ranging from –35°C to +45°C. As an official SKF engineering partner, we deliver more than a part — we deliver a documented, application-calculated solution backed by SKF’s L10 life model and real-world field performance history.

Operating Environment and Performance Demands

Wind turbine main shaft bearings operate under unique constraints: extremely low rotational speeds (<20 r/min) combined with high moment loads, unpredictable gust-induced shock loading, limited accessibility for maintenance, and exposure to wide temperature swings and humidity-driven corrosion. Gearbox intermediate shaft positions demand high stiffness and precise axial location control to prevent gear mesh misalignment. Pitch and yaw drives require low starting torque and consistent friction behavior over 20-year service life. The 30224 and 30326 tapered roller bearings meet these demands through optimized contact angle (11° for 30224, 13° for 30326), hardened case depth ≥1.2 mm, and controlled residual stress profiles verified per ASTM E92 hardness mapping.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C) is not theoretical — it directly determines L10 basic rating life via ISO 281:2020. For a 30224 bearing under 280 kN equivalent load, L10 life exceeds 135,000 hours at 12 r/min — assuming correct clearance, proper lubrication, and no contamination ingress. The pressed steel cage ensures dimensional stability at elevated temperatures up to 120°C, critical during prolonged generator overload events. Z2V2 vibration class mandates peak-to-peak displacement ≤ 4.5 μm at 1500 r/min, reducing acoustic emission and preventing resonance coupling with tower modes. C3 radial internal clearance accommodates thermal growth of up to 150 μm between shaft and housing over a 90°C delta-T — essential for reliable operation in desert or offshore environments. Precision class P5 guarantees bore and outer diameter tolerances within ±6 μm, ensuring repeatable interference fit and eliminating fretting corrosion at the housing seat.

The True Cost of Bearing Failure

A single unplanned shutdown on a 3 MW turbine costs operators $18,500–$42,000 per hour in lost generation, plus $120,000+ in crane mobilization and labor. Counterfeit or non-engineered tapered roller bearings typically achieve only 22–28% of rated L10 life — confirmed by third-party lab testing against SKF Explorer-grade specimens. Improper installation due to missing technical guidance accounts for 31% of early failures, per SKF Global Failure Analysis Database (2025). Total cost of ownership (TCO) for a properly specified, installed, and maintained SKF 30224/30326 set is 37% lower over 15 years than the lowest-bid alternative — factoring in energy loss, maintenance frequency, and replacement logistics. Low-noise long-life tapered roller bearing performance is not optional; it is the baseline requirement for modern wind power bearings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Batch numbers are verifiable via SKF’s official portal. For orders above 200 units, SKFAudit-certified third-party inspection at source is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any tapered roller bearing for wind power applications, engineers must first define the true operating envelope: dynamic load vector (radial + axial components), rotational speed profile, ambient and bearing temperature range, housing and shaft material properties, and required service life. Our engineering team will perform free SKF BEARINX-based life calculation, generate a mounting and lubrication protocol, and propose configuration options — including precision class, clearance, and cage modifications — all within 48 hours of receiving your parameters. Every day spent on generic sourcing is a day of unmitigated risk. Correct selection starts with the first technical conversation — not the first purchase order.
