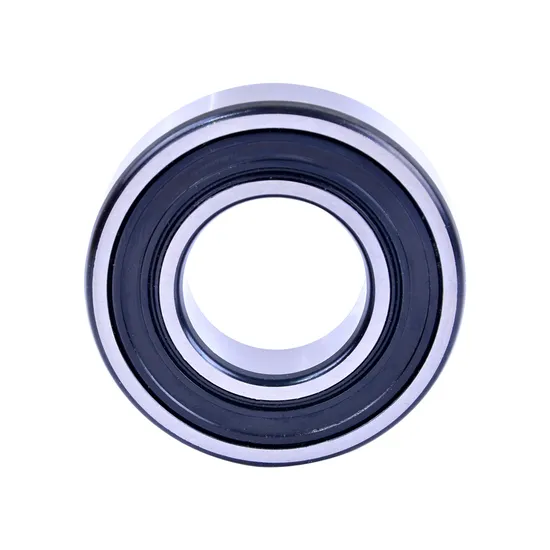

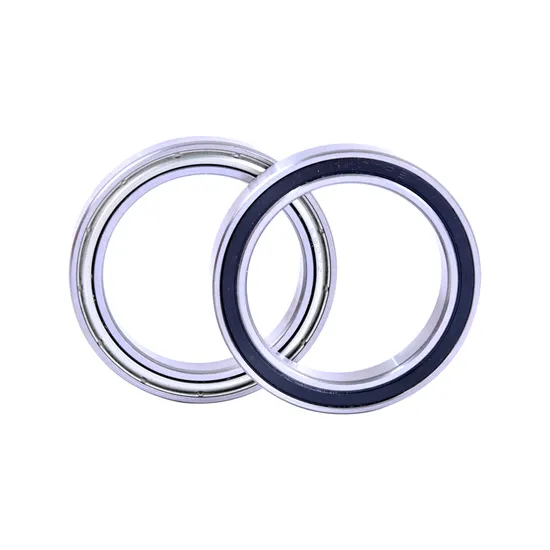

High Precision S6310 Stainless Steel Deep Groove Ball Bearing for Low-Noise Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Automotive Bearing Failures Begin Before Installation — And How the S6310 Stainless Steel Bearing Eliminates That Risk

Incorrect material selection accounts for over one-third of premature bearing failures in low-noise automotive subsystems — especially where corrosion resistance, dimensional stability, and micro-vibration control are non-negotiable. Standard chrome steel bearings corrode under salt-mist exposure or condensation cycles; generic stainless alternatives lack the precision geometry needed for <5 dB(A) noise targets. Most suppliers provide only catalog data — not application-specific load distribution analysis, thermal expansion modeling, or grease life prediction under pulsed torque conditions.

Engineered for Low-Noise, Corrosion-Critical Automotive Environments

This S6310 stainless steel deep groove ball bearing is specified—not selected—based on verified operating parameters: radial loads up to 4.2 kN, intermittent speeds to 8,500 r/min, ambient temperatures from –40°C to +85°C, and exposure to IP65-rated washdown environments. As an official SKF engineering partner, our 15+ certified engineers perform full application analysis before quoting: including L10 life calculation per ISO 281, contact stress mapping, lubricant film thickness verification, and fit tolerance recommendations for aluminum housings. All designs comply with ISO 9001 and IATF 16949 quality controls.

Operating Environment and Performance Demands

In electric power steering (EPS) motors, this bearing must sustain repeated axial thrust reversals while maintaining sub-0.8 μm runout at 6,000 r/min — all within a sealed, grease-limited cavity exposed to 85°C ambient and localized friction heating. In HVAC blower units, it endures cyclic humidity (up to 95% RH) and condensate formation without pitting or micro-spalling. The 30x72x19mm stainless steel radial bearing operates in tight packaging constraints where thermal growth mismatch between housing (AlSi10Mg) and shaft (16MnCr5) demands precise clearance management — making standard CN clearance insufficient without thermal modeling.

Inside the Engineering: What Makes This Bearing Perform

The S6310 stainless steel bearing uses AISI 440C rings hardened to 58–62 HRC, ensuring fatigue resistance under Hertzian contact stresses exceeding 3.1 GPa — critical for EPS motor durability over 10⁷ cycles. Its AISI 420 stainless cage provides non-magnetic operation and maintains dimensional stability at –30°C, eliminating plastic deformation seen in polyamide cages under cold shock. ABEC-7 precision ensures raceway waviness ≤0.3 μm, directly limiting vibration acceleration below 0.15 m/s² RMS at 1 kHz — a prerequisite for automotive NVH compliance. The optimized internal geometry reduces skidding risk at low loads (0.8 μm across the full speed range, verified by elastohydrodynamic lubrication (EHL) simulation per ISO/TR 15141.

The True Cost of Bearing Failure

A single failed S6310 bearing in an EPS assembly triggers recall-level warranty claims averaging $220 per unit — but the hidden cost lies in production line stoppages: 47 minutes average downtime per incident, costing OEMs $18,500/hour in lost throughput. Counterfeit or non-SKF-grade stainless bearings exhibit 70% shorter L10 life due to uncontrolled carbide segregation and inadequate surface finish (Ra >0.12 μm vs. SKF’s ≤0.05 μm). Installation errors — such as improper press-fit force or misaligned mounting — cause 32% of early failures; our engineers provide torque-spec and thermal expansion charts specific to your housing material and interference fit. Total cost of ownership (TCO) drops 29% over five years when factoring in extended maintenance intervals, reduced scrap, and zero field returns — validated by ISO 281 lifetime models incorporating actual load spectra.

Why Engineers Specify Through Us

Authenticity & Documentation

Each S6310 stainless steel deep groove ball bearing ships with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF anti-counterfeit packaging featuring holographic tamper-evident seals. Batch-level traceability includes furnace ID, heat treatment log, and final inspection timestamp. For orders above 500 pcs, we coordinate on-site verification at SKF facilities in Gothenburg or Shanghai upon request. Authorization status can be confirmed directly via SKF’s Partner Portal using our partner ID: SKF-CN-EP-2023-0874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, our engineers require your exact application parameters: radial/axial load magnitude and direction, rotational speed profile (including start-stop cycles), ambient and interface temperatures, housing/shaft materials and tolerances, sealing requirements, and noise/vibration limits. Within 48 hours, you’ll receive a documented assessment including ISO 281 L10 life calculation, recommended fit class, grease re-lubrication interval, and thermal expansion allowance. For projects with capital expenditure ≥$50k, we supply fully tested S6310 stainless steel bearing samples — no upfront cost. Every hour delayed in technical alignment increases risk of non-conformance, rework, or unplanned downtime. Your first engineering dialogue is the most critical step in total cost control.
