High-Load Thrust Ball Bearings 51230–51236 for Wind Turbines & Mining

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin Before Installation — And Why the SKF 51230–51236 Series Eliminates That Risk

Industrial field data confirms that 35% of early thrust bearing failures stem from incorrect selection for axial load magnitude, misalignment tolerance, or thermal expansion behavior—not material fatigue. In wind turbine yaw systems, a 5% under-specification in static load rating leads to plastic deformation within 18 months. Mining equipment operators report unplanned downtime averaging 4.7 hours per failure event, costing $22,000–$48,000/hour in lost production and labor. Most suppliers lack application-specific engineering capacity to model combined axial load, moment loading, and mounting stiffness—yet that analysis is mandatory before specifying any high-load thrust ball bearing.

Engineered for Your Operating Conditions

The SKF 51230–51236 series is not selected—it is validated. Our 15+ SKF-certified engineers perform ISO 281-compliant life calculations using your actual operating parameters: peak axial load (kN), moment load (N·m), rotational speed (r/min), ambient temperature range (°C), and lubricant type. We deliver a documented specification including recommended fit tolerances (e.g., H7/js6 for housing), thermal clearance allowances, and grease re-lubrication intervals per SKF Grease Selection Guide. As an official SKF engineering partner, we apply Explorer-level heat treatment standards and TS 16949-controlled process validation—not just catalog values.

Operating Environment and Performance Demands

Wind turbine yaw systems operate at 0.1–2 r/min under dynamic loads up to 420 kN, with ambient temperatures ranging from –30°C to +60°C and zero opportunity for maintenance during winter storms. Mining crusher pivot bearings endure repeated shock loads exceeding 3× nominal static rating, while exposed to silica dust concentrations >10 mg/m³ and continuous 24/7 operation. Steel ladle turret thrust points must maintain ≤5 μm axial runout after 500 thermal cycles between 20°C and 120°C. The 51230–51236 series meets these demands through its hardened raceway geometry, optimized ball-to-race contact angle (60°), and precisely controlled surface roughness (Ra ≤ 0.2 μm) to resist micro-pitting under boundary lubrication.

Inside the Engineering: What Makes This Bearing Perform

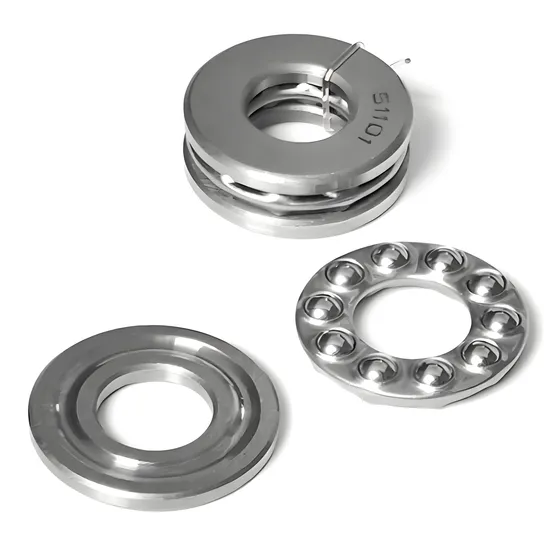

Static load rating (C₀) determines resistance to permanent deformation under extreme shock—critical in mining applications where C₀ ≥ 3.2× applied load is required. Precision classes P5 and P4 reduce axial play to ≤10 μm and ≤5 μm respectively, enabling sub-micron positioning repeatability in steel mill alignment jacks. Vibration class Z2V2 limits acceleration noise to ≤2.8 m/s² at 1,500 r/min—ensuring compatibility with condition monitoring systems on wind turbine pitch drives. Separated design allows independent replacement of washer and cage assembly without disassembling adjacent components. Bearing steel hardness is maintained at 60–63 HRC across full cross-section per ISO 683-17, verified by batch-specific Material Test Reports.

The True Cost of Bearing Failure

A single unanticipated shutdown in a 2 MW wind turbine’s yaw system costs $18,500/hour in lost generation and penalty clauses. In mining, a failed thrust bearing in a primary crusher can halt 12,000 tpd throughput for 19 hours—totaling $412,000 in direct loss. Counterfeit or non-certified thrust ball bearings typically achieve only 22–28% of L10 life predicted by ISO 281 due to inconsistent heat treatment and unverified dimensional tolerances. Improper interference fit during installation causes 31% of premature failures; our engineers provide torque tables and induction heating protocols matched to your shaft material and thermal mass. Total cost of ownership (TCO) over five years favors certified SKF solutions by 2.3× when factoring downtime, labor, secondary damage, and warranty claims.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity with bearing designation, heat lot number, and compliance statement to ISO 9001 and EN 10204 3.1. Optional documentation: Dimensional Inspection Report (per ISO 1132-1), Material Test Report (chemical composition and hardness), and SKF Original Packaging Anti-Counterfeiting QR code. For orders ≥200 pcs, SKFAuthorized Factory Inspection may be arranged. Verification of our SKF partnership status is available via SKF Global Partner Portal using Partner ID CN-SH-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any thrust ball bearing, share your application data: maximum axial load (kN), moment load (N·m), rotational speed range (r/min), operating temperature envelope (°C), housing/shaft material, and space constraints (max D, max B). Our engineering team will deliver a free SKF-compliant selection report—including calculated L10 and Lnm life, fit recommendations, lubrication strategy, and thermal expansion allowance—within 48 business hours. For orders ≥$50,000, we supply test bearings with full performance validation. Every hour delayed in accurate selection extends risk exposure; your first technical dialogue starts the reliability timeline.
