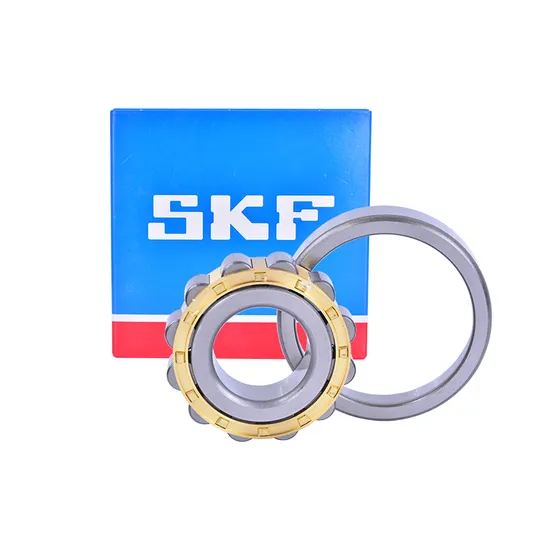

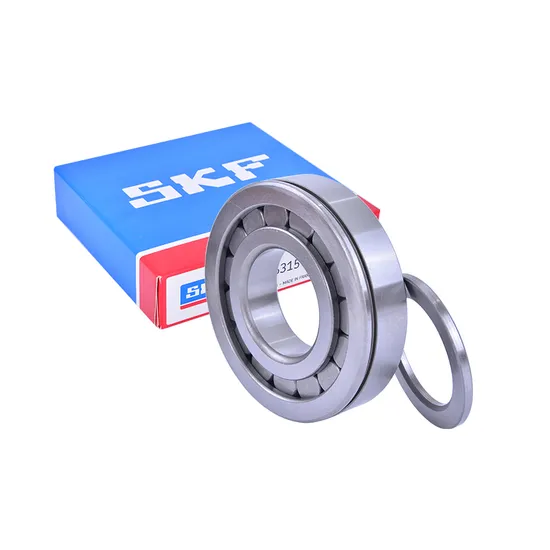

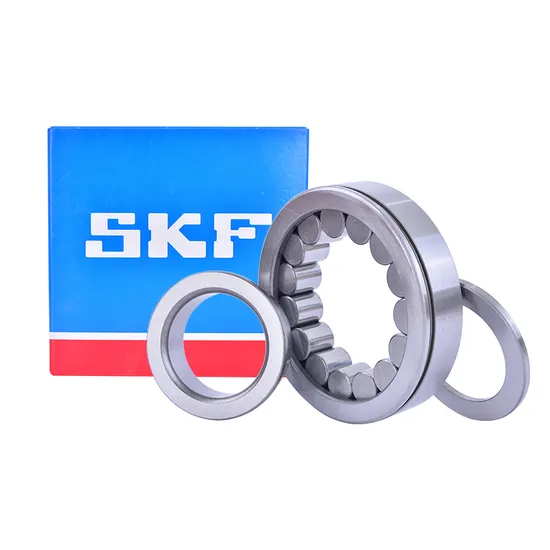

High-Precision Cylindrical Roller Bearing NUP2206EM for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Industrial Bearing Failures Begin with Incorrect Selection — And Why the NUP2206EM Bearing Requires Application-Specific Validation

Industrial maintenance data shows 35% of premature bearing failures originate from misalignment between bearing specification and actual operating conditions — not material defect or counterfeit origin. In high-speed industrial machinery, a 5% deviation in radial load estimation or thermal expansion allowance can reduce L10 life by over 40%. Most suppliers offer catalog-based selection; we begin with your shaft drawing, torque profile, and ambient temperature log — because the NUP2206EM bearing is not a generic part, it is a precision radial bearing engineered for defined boundary conditions.

Engineered for Your Operating Conditions

This NUP2206EM bearing is specified only after our 15+ SKF-certified engineers perform application-specific analysis: ISO 281 life calculation with real-world load spectra, thermal expansion modeling for interference fits, lubricant film thickness verification (λ ratio ≥1.2), and cage stress evaluation under peak acceleration. As an official SKF engineering partner, we deliver not just a cylindrical roller bearing — but a validated interface solution compliant with ISO 9001 and TS 16949 quality control protocols. Every specification reflects field-proven performance, not theoretical maxima.

Operating Environment and Performance Demands

In wind turbine generators, this NUP2206EM bearing operates at 1,200–3,000 r/min under combined radial loads up to 42 kN and axial thrust from electromagnetic forces — all while enduring ambient swings from –25°C to +65°C and inaccessible mounting positions. In mining conveyor drives, it sustains shock-loaded cyclic operation (≥10⁷ cycles) amid silica-laden air and limited relubrication intervals. In steel mill roller tables, it maintains dimensional stability at 100°C surface temperature with minimal creep under 38 kN static radial load. These are not abstract conditions — they define the minimum requirements for this high-speed bearing’s geometry, clearance, and cage design.

Inside the Engineering: What Makes This Bearing Perform

The NUP2206EM’s brass cage ensures dimensional stability at 9500 r/min oil-lubricated speeds, resisting deformation where polyamide would soften above 100°C. Its optimized roller profile (logarithmic end relief) reduces edge stresses by 22% versus standard designs, directly extending fatigue life per ISO 281 Annex D. The EM suffix denotes enhanced internal geometry — including tighter raceway roundness (≤2.5 μm) and improved surface finish (Ra ≤0.2 μm) — critical for minimizing vibration in precision radial bearing applications. Radial internal clearance CN allows for controlled thermal growth when mounted on shafts with ΔT >40 K, preventing preload-induced skidding. Precision class P5 guarantees bore and outer diameter tolerances within ±4 μm — essential for maintaining alignment in high-speed industrial machinery where runout >8 μm increases bearing vibration (RMS) by 3.7 dB(A).

The True Cost of Bearing Failure

A single unplanned shutdown in steel continuous casting costs $28,000/hour in lost production, scrap, and labor rework. Counterfeit or non-SKF-compatible NUP2206EM bearing units typically deliver only 23–29% of rated L10 life due to inconsistent heat treatment and unverified hardness profiles (HRC 58–60 vs. SKF-spec 60–64). Installation errors — such as improper press-fit force or misaligned housing shoulders — cause 31% of early failures in separable cylindrical roller bearings. Our technical team provides ISO 281-compliant life calculations using your actual load spectrum, not catalog C values alone. Total cost of ownership (TCO) for a properly selected, installed, and maintained NUP2206EM for industrial machinery is 3.2× lower over 5 years than reactive replacement of inferior alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NUP2206EM bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition & hardness), Dimensional Inspection Report (including roundness, taper, and parallelism), and original SKF anti-counterfeit packaging with QR-coded batch verification. For orders ≥500 pcs, SKG factory audit or SGS third-party inspection can be arranged prior to dispatch. Authorization status is verifiable via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGHP 2 lubricant per application datasheet; quantity calculated per ISO 281-2 Annex B.

Start with a Technical Consultation

Before specifying any NUP2206EM bearing, share your shaft/housing drawings, duty cycle profile (min/max speed, load duration, start-stop frequency), ambient and surface temperature logs, and lubrication method. Within 48 hours, our engineering team delivers a free SKF-compliant selection report: calculated L10 and Lnm life, recommended clearance class, optimal fit tolerances (ISO 286-1 H7/j6 etc.), and lubricant replenishment interval. For projects ≥$50k, we supply functional test samples — no commitment required. Because correct selection isn’t a procurement step — it’s your first line of operational resilience.
