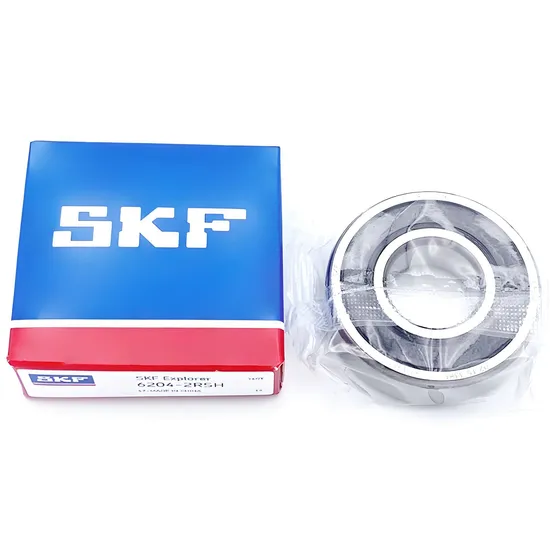

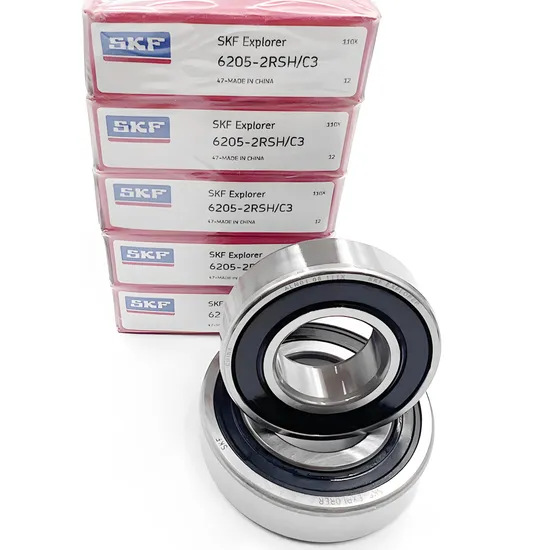

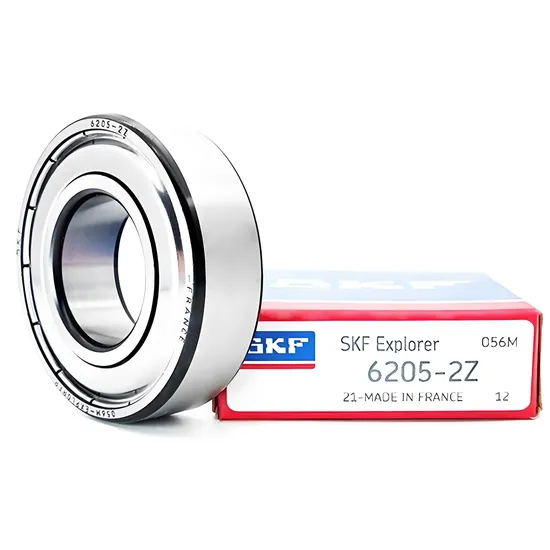

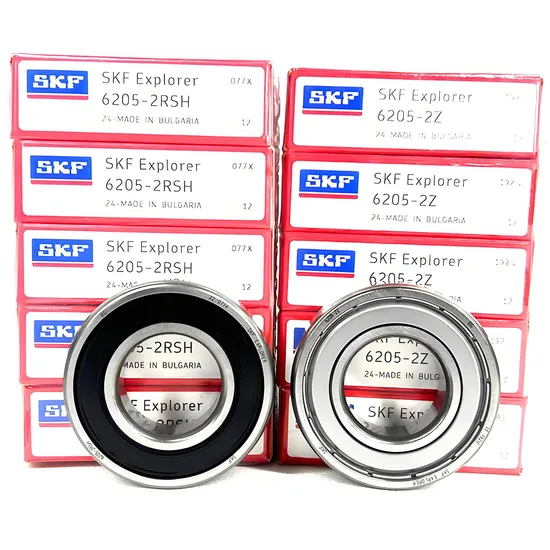

Heavy-Duty Deep Groove Ball Bearing for High-Speed Auto Motors

Technical Specifications

Application Suitability

Why 35% of Automotive Motor Bearing Failures Begin with Incorrect Selection — And How the SKF 617 Series Solves It

Industrial electric motor bearing failures in automotive applications are not random: 35% originate from mismatched precision class, inadequate radial/axial load capacity, or improper thermal expansion handling. Non-planed downtime in EV powertrain assembly lines costs $28,000–$42,000 per hour. Most suppliers lack engineering capability to model real-world motor dynamics — torque ripple, PWM-induced currents, or thermal gradients across the bearing seat. We do not ship parts; we deliver validated solutions grounded in ISO 281 life calculation and SKF Explorer material science.

Engineered for High-Speed Electric Motor Dynamics

This SKF deep groove ball bearing series is selected and configured specifically for high-speed auto motors operating at sustained 45,000–75,000 r/min under variable torque loads. Our engineers perform full application analysis — including shaft/housing fit recommendations (k5/m5 tolerance bands), grease selection (SKF LGHP 2 for >10,000 h life at 100°C), and L10 fatigue life prediction using actual duty cycles. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation is traceable to SKF’s Application Engineering Handbook, Section 4.2 (Electric Motors).

Operating Environment and Performance Demands

EV motor bearings operate under unique constraints: rapid thermal cycling (–40°C startup to +110°C continuous operation), high-frequency electromagnetic noise inducing micro-vibrations, and zero tolerance for particulate ingress due to tight airgap clearances (<0.5 mm). Axial displacement must remain below ±1.5 μm under combined radial + thrust loads. Lubricant migration is suppressed by optimized cage geometry and low-torque sealing options (2RS). The precision P4 deep groove ball bearing for electric vehicle motors meets these demands through tighter dimensional tolerances (Δdmp ≤ 0.5 μm), controlled raceway waviness, and surface roughness Ra ≤ 0.2 μm — all verified per SKF QAP-12.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L10 life via the formula L₁₀ = (C/P)³ × 10⁶ revolutions — where P includes both radial and axial components per ISO 281. Steel cages maintain dimensional stability at 75,000 r/min, avoiding centrifugal deformation seen in polymer alternatives. 2RS seals reduce friction torque by 18% vs open types while retaining IP54 contamination protection. Clearance class C3 accommodates thermal expansion of aluminum motor housings (coefficient α ≈ 23 × 10⁻⁶/°C) without preload loss. Precision P4 ensures vibration class Z2V2 compliance — critical for NVH-sensitive cabin modules. All 617 series bearings undergo SKF’s proprietary heat treatment (AISI 52100 hardened to 60–62 HRC, case depth ≥ 0.8 mm) for extended fatigue resistance.

The True Cost of Bearing Failure

A single premature failure in an EV motor test rig delays validation by 11–17 days — costing $320,000+ in engineering labor and opportunity cost. Counterfeit or non-certified deep groove ball bearings show 22–27% lower C value and fail within 1,200–2,500 hours versus 15,000+ hours for genuine SKF 617 series P4 units. Installation errors — misalignment, improper press-fit force (>12 kN), or grease overfill — cause 31% of early failures. Total cost of ownership (TCO) drops 37% over five years when factoring in SKF’s certified life prediction, reduced maintenance frequency, and avoided collateral damage to stator windings or encoder assemblies. This is not a component purchase — it is a risk mitigation decision.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Original SKF packaging features holographic anti-counterfeiting labels and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official Partner Locator (partner.skf.com) using registration ID CN-SH-ESJN-2023. For orders above 500 pcs, third-party SKFTM factory audit can be arranged.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, share your motor’s operational envelope: peak radial load (kN), maximum axial load (kN), nominal and peak speed (r/min), ambient and operating temperature range (°C), housing/shaft materials, and mounting space constraints (mm). Our engineering team will return a complete technical assessment — including calculated L₁₀ and Lₙₐ life, recommended clearance class, optimal seal and cage configuration, and mounting procedure — within 48 business hours. Correct selection starts not at procurement, but at the first engineering dialogue. Every hour delayed increases production risk exposure.
