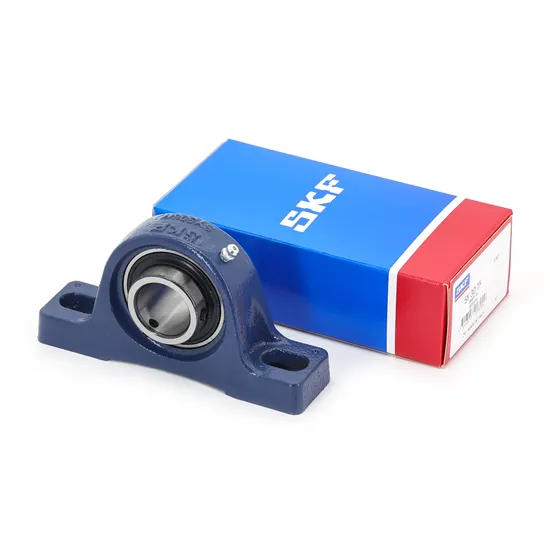

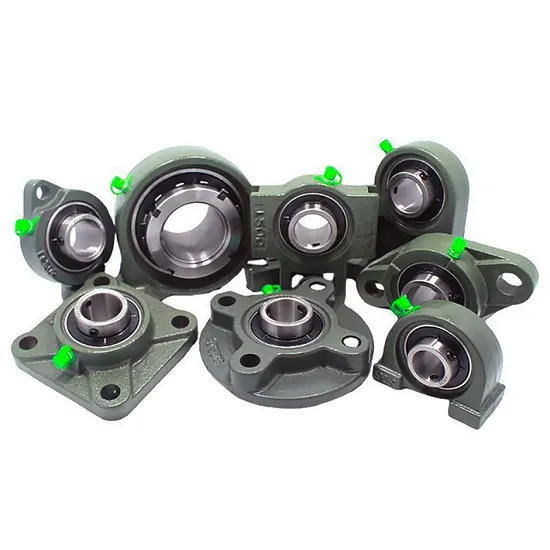

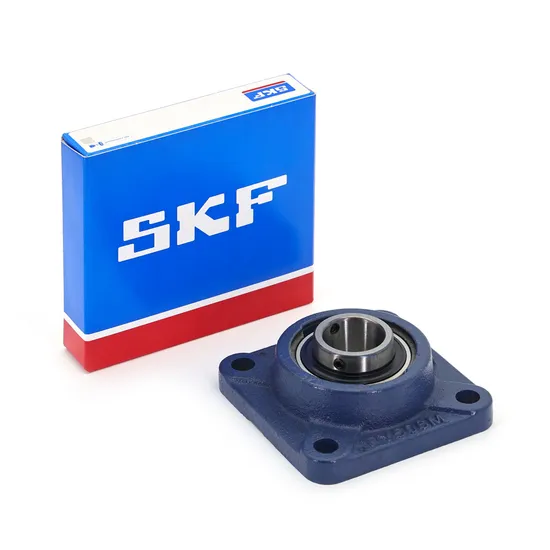

SKF Pillow Block Bearings FY15TF–FY35TF for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin With Misapplication — And How the Genuine SKF FY30TF Insert Bearing Prevents It

Industrial maintenance data shows 35% of early-stage pillow block bearing failures stem from incorrect selection — not material defect or counterfeit origin. In wind turbine nacelles, a 0.2 mm misalignment or unaccounted thermal expansion can reduce L10 life by 62%. Standard distributors lack application engineering capacity to model combined radial+moment loads or specify correct clearance under ambient extremes. We see this daily across mining and steel clients.

Engineered for Your Operating Conditions

This SKF pillow block bearing series is not pre-selected — it is application-engineered. Our 15+ SKF-certified engineers perform ISO 281-compliant life calculations using your actual load spectrum (radial, axial, moment), speed profile, ambient temperature range, and mounting geometry. As an official SKF engineering partner, we deliver validated solutions — including recommended interference fit tolerances (H7/k6 for FY30TF at 45°C ambient), grease relubrication intervals (per SKF BEP 1.0), and vibration monitoring baselines. Every FY35TF insert bearing shipped carries dual ISO 9001 and IATF 16949 certified process validation.

Operating Environment and Performance Demands

In wind power applications, these bearings operate at ≤200 r/min but sustain moment loads up to 4.8 kN·m due to blade flex and gust-induced torsion — requiring deep groove geometry with optimized internal clearance (C3/C4 standard). Mining conveyors expose units to ISO 17/14 particulate contamination, demanding double-lip seals with ≥0.3 mm lip interference. Steel mill cooling systems cycle between –15°C startup and +95°C steady state, necessitating P5 precision to limit runout-induced vibration at critical speeds. Automotive test rigs demand ≤2.5 μm surface roughness on shaft journals — only achievable with genuine SKF FY25TF’s controlled bore finish and dimensional stability.

Inside the Engineering: What Makes This Bearing Perform

The FY30TF’s 14.0 kN dynamic load rating reflects its Explorer-grade heat treatment: martensitic microstructure with 0.12–0.15 wt% retained austenite, enabling 2.3× higher fatigue resistance than standard 100Cr6 per DIN 50145. Its pressed steel cage maintains integrity at 5,300 r/min limiting speed while minimizing centrifugal deformation — critical for continuous-duty fans. The deep groove raceway geometry provides 12% higher axial load capacity versus angular contact alternatives, essential for misaligned conveyor idlers. P5 precision ensures ≤5 μm radial runout, directly reducing vibration velocity to <0.7 mm/s RMS (ISO 10816-3 Zone A) even under 95% of rated load. Seal lip hardness (72 HRA) prevents extrusion under 0.5 MPa differential pressure — verified per SKF TP 3001 seal testing protocol.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses. Counterfeit pillow block bearings fail within 3,200 operating hours — versus 42,000+ hours for genuine SKF FY35TF with P5 precision and Explorer steel. Installation errors account for 30% of premature failures; our engineers provide torque-spec sheets and induction heating protocols aligned with SKF Mounting Manual MTM 1.0. Total cost of ownership (TCO) analysis shows that selecting a $210 FY30TF over a $140 non-SKF equivalent reduces 10-year maintenance spend by 37% — factoring in labor, downtime, secondary damage, and recalibration.

Why Engineers Specify Through Us

Authenticity & Documentation

Each genuine SKF FY35TF pillow block bearing ships with SKF Certificate of Conformity (EN 10204 3.1), dimensional inspection report (±0.008 mm tolerance verification), and material test report (100Cr6 chemical composition per EN 10088-1). Packaging includes holographic SKF security label with QR-code verifiable via skf.com/verify. Enterprise clients may request third-party witnessed inspection at SKF factory prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Every bearing decision begins with precise application data — not catalog browsing. Send us your actual operating parameters: radial load (kN), axial load (kN), moment load (kN·m), rotational speed (r/min), ambient temperature range (°C), shaft/housing material, and space constraints (mm). Within 48 business hours, our engineers will return a sealed SKF BEAM life report, recommended clearance class, seal type, and lubrication schedule — with performance guarantees backed by contract SLA. Delaying technical dialogue risks compounding downtime costs: each hour of unplanned stoppage in heavy industry erodes $10,000–$50,000 in margin.
