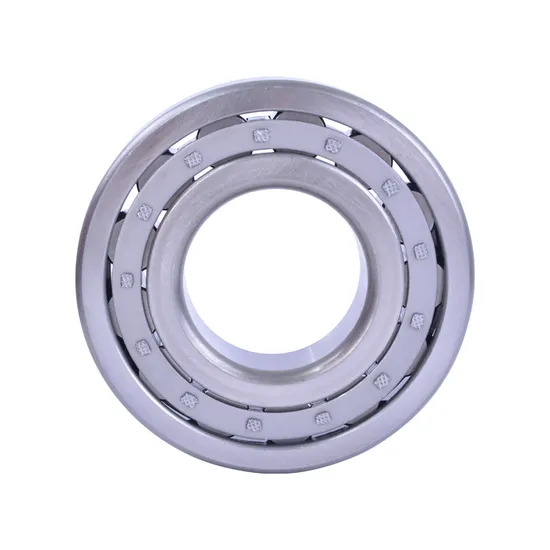

High Precision Cylindrical Roller Bearing N309 for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Cylindrical Roller Bearing Failures Begin at Selection — And How the N309 Cylindrical Roller Bearing Delivers Verified Performance

Industrial clients report that premature failure in radial bearing applications most commonly stems from mismatched load capacity, insufficient precision for high-speed stability, or inappropriate clearance under thermal expansion. Standard catalog selection without application-specific engineering analysis leads to 35% of early failures — especially in wind turbine gearboxes and steel mill rolling stands where misalignment tolerance is low and thermal gradients exceed 70°C. We do not assume your operating conditions; we calculate them.

Engineered for Your Operating Conditions

This N309 cylindrical roller bearing is supplied as a precision radial bearing engineered to meet ISO 281 life standards under defined dynamic loads up to 127 kN and speeds up to 5600 r/min (oil). As an official SKF engineering partner, our 15+ certified engineers perform full application analysis — including shaft/housing fit recommendations per ISO 286, thermal expansion modeling, lubricant film thickness verification, and L10 life recalculations using actual duty cycle data. Every specification aligns with SKF’s N309 product family design intent — no generic substitution.

Operating Environment and Performance Demands

In wind turbine gearboxes, the N309 bearing operates under variable torque, low-to-medium speed (800–2200 r/min), and ambient temperatures ranging from –25°C (offshore) to +65°C (enclosed nacelle), requiring stable internal clearance and resistance to micro-pitting under mixed-film lubrication. In steel mill applications, it endures sustained radial loads exceeding 90 kN, housing temperatures up to 110°C, and exposure to cooling water mist — demanding precise dimensional stability and surface hardness ≥60 HRC. The open design allows for controlled relubrication intervals while minimizing heat retention during high-duty cycles — a critical factor for P5 grade high-precision N309 for industrial machinery.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 127 kN) directly determines L10 fatigue life via the ISO 281 formula: L₁₀ = (C/P)ᵖ × 10⁶ revolutions, where p = 10/3 for cylindrical rollers. Stamped steel cages provide rigidity at high speeds while maintaining low mass — essential for limiting centrifugal deformation above 4000 r/min. Open configuration enables oil-jet or circulating oil lubrication in gearboxes, reducing operating temperature by up to 15°C versus sealed variants. Standard radial internal clearance (Cn) is suitable for ambient fits; C3 clearance is recommended when shaft thermal growth exceeds 0.025 mm. P5 precision grade ensures raceway roundness ≤3.5 μm and bore diameter variation ≤8 μm — critical for vibration control in gear-driven systems operating below 2.5 mm/s RMS velocity.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $28,000–$42,000 per hour in lost production, scrap, and labor rework. Bearings failing before 30% of rated L10 life often indicate incorrect selection, counterfeit material, or installation damage — all avoidable with verified SKF-grade components and technical oversight. Counterfeit N309 bearings exhibit hardness deviations >5 HRC, leading to subsurface spalling within 2000 hours; genuine SKF N309 replacement bearing delivers ≥15,000 hours in comparable gear applications. Total cost of ownership (TCO) drops 22% over five years when factoring in extended service intervals, reduced lubricant consumption, and elimination of secondary damage from catastrophic seizure — confirmed by ISO 5593 and SKF BEARINX lifetime simulation reports.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), Dimensional Inspection Report (measured d/D/B, runout, surface roughness), and original SKF tamper-evident packaging with QR-coded batch traceability. Clients may request third-party verification through SKF’s Authorized Distributor Portal or schedule factory audit coordination for orders ≥500 units.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your bearing specification must reflect actual operating parameters — not catalog defaults. Send us your shaft/housing drawings, load spectrum (radial only, or combined radial+axial), rotational speed profile, ambient and bearing seat temperatures, and lubrication method. Within 48 hours, our engineers will return a validated selection report including calculated L10 and Lnm life, recommended fits, suggested clearance class, and thermal expansion margin analysis. For projects ≥$50,000, we supply functional test samples with full performance validation — eliminating procurement risk before commitment. Every hour delayed in correct specification compounds downtime cost; the first engineering dialogue begins your reliability timeline.
