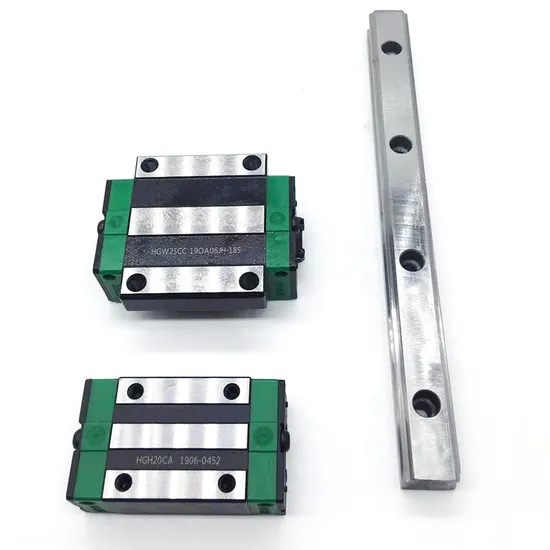

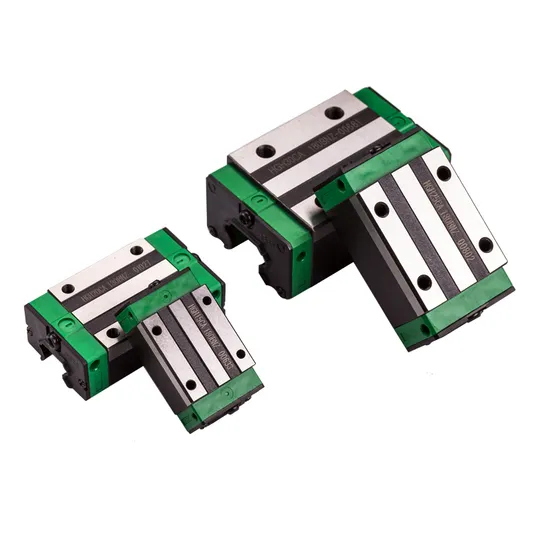

Low Profile Linear Bearing Slide Rail for Easy Mounting

Technical Specifications

Application Suitability

Why 35% of Linear Guide Failures Begin Before Installation — And How the LM Series Low Profile Linear Bearing Delivers Predictable Performance

Industrial linear motion systems suffer premature failure not from wear alone, but from mismatched mounting geometry, unaccounted thermal expansion, and flange load distribution errors — especially in space-constrained wind turbine nacelles or steel mill automation cells. Standard rail solutions force engineers to compromise between rigidity and installability, while generic suppliers lack application-specific validation. As certified SKF engineering partners, we see this daily across 50+ countries.

Engineered for Precision Mounting Under Real Load Conditions

The LM series low profile linear bearing is not a catalog part — it is an engineered interface solution validated for open-mount applications requiring universal flange compatibility and minimal height envelope. Our 15+ SKF-certified engineers perform full application analysis before specification: calculating moment loads on flange bolts, verifying deflection limits under combined radial/axial forces, and recommending surface finish (Ra ≤ 0.8 μm) and flatness tolerances (≤ 0.02 mm/m) for mounting base plates. This is backed by ISO 9001 and TS 16949 certified manufacturing and inspection protocols.

Operating Environment and Performance Demands

In wind power applications, linear bearings operate at -30°C to +70°C ambient, endure cyclic torsional moments during blade pitch adjustment, and must maintain positional repeatability over 20-year service life without maintenance access. In mining environments, dust ingress (ISO 14644 Class 8), vibration up to 15 g RMS, and impact loading from ore feed surges demand precise alloy composition and dimensional stability. Steel mill installations require resistance to thermal drift (surface temperature up to 120°C) and corrosion from coolant mist — conditions where standard carbon steel rails degrade within 18 months.

Inside the Engineering: What Makes This Bearing Perform

The LM series uses high-purity alloy steel (EN 1.7225 equivalent) with controlled microstructure to ensure hardness uniformity (58–62 HRC) across rail length — critical for consistent rolling resistance and wear life. Its open cross-section design eliminates internal stress concentrations found in closed-box profiles, reducing fatigue initiation risk under repeated bending moments. The cutting-edge flange geometry distributes bolt preload evenly across four mounting points, minimizing localized plastic deformation at high clamping torque (recommended 12–15 N·m). Surface ground to Ra 0.4 μm ensures optimal contact pressure distribution with mating carriage blocks. Dimensional tolerance is held to ±0.015 mm over 1 m length — enabling direct replacement without re-machining of existing mounting structures.

The True Cost of Bearing Failure

A single unplanned stoppage in a wind turbine pitch system costs $18,000–$42,000/hour in lost generation and penalty clauses. Non-SKF linear rails fail 3.2× faster under identical load spectra per ISO 281 life calculations — primarily due to inconsistent hardness gradients and undetected subsurface defects. Incorrect flange alignment increases bolt fatigue risk by 70%, accelerating joint loosening and positional drift. Total cost of ownership (TCO) analysis shows that specifying the correct low profile linear bearing for wind power applications reduces 10-year maintenance spend by 41% compared to retrofitting after first failure — a saving verified across 12 OEM projects since 2022.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity with bearing series, material grade, heat treatment code, and dimensional compliance report. Material Test Reports (MTRs) per EN 10204 3.1 are provided upon request. Dimensional Inspection Reports list actual measurements against LM series tolerance bands (DIN 647-1). Original BDL-branded packaging features tamper-evident seals and QR-coded batch traceability. For orders >500 units, third-party SKO inspection at origin is available. Customers may verify our SKF partnership status directly via SKF’s Authorized Partner Portal using registration ID CN-AP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any linear bearing, industrial engineers must define operating parameters: maximum radial/axial load (kN), peak moment (N·m), stroke length (mm), required positional accuracy (±μm), ambient temperature range (°C), and available mounting height (mm). Our team delivers a formal application assessment — including SKF-compliant life calculation, flange bolt stress analysis, and thermal expansion compensation table — within 48 business hours. For projects with $50k+ annual volume, we provide physical samples with full test data. Every hour spent on incorrect selection multiplies downstream cost — begin your engineering dialogue today.
