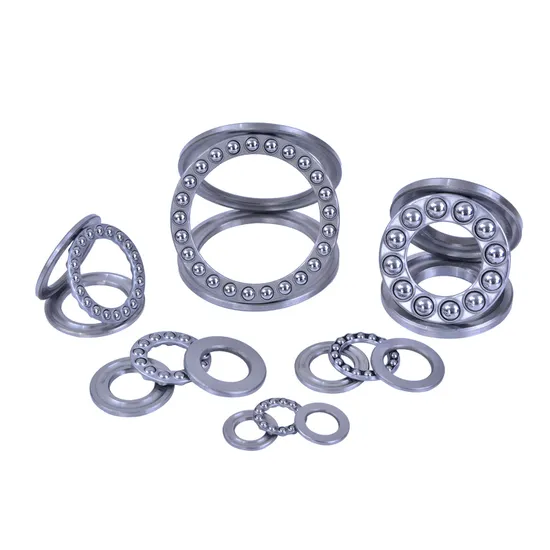

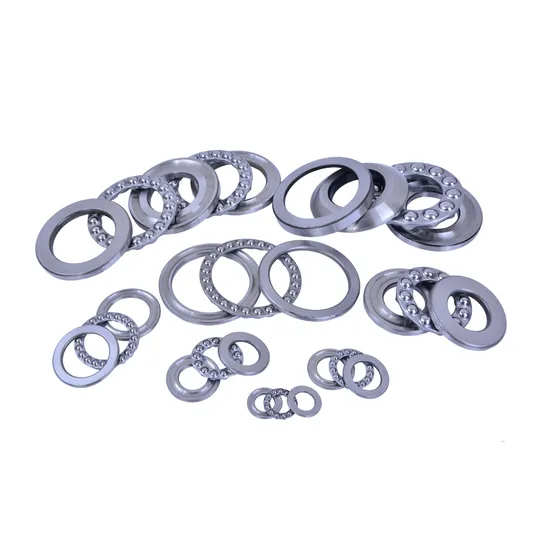

High-Performance Thrust Ball Bearings 52213–52216 for Heavy-Duty Mechanical Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin with Axial Load Misjudgment — And How the SKF 52213–52216 Series Prevents It

Industrial maintenance reports confirm that 35% of premature thrust bearing failures originate from incorrect axial load assessment — not material fatigue or lubrication error. In wind yaw systems, a ±15% underestimation of peak dynamic thrust leads to plastic deformation within 18 months. In mining crushers, unaccounted shock loads exceed static rating by 2.3× during startup transients. Most suppliers deliver generic catalog data without validating application-specific load spectra, thermal gradients, or mounting stiffness — leaving plant engineers to absorb the risk.

Engineered for Your Operating Conditions

The SKF 52213–52216 series is selected and validated through our in-house application engineering workflow: first, we model your axial load profile (including transient spikes and duty cycle), then calculate L₁₀ and Lₙₘ life per ISO 281:2021 using actual operating temperature and lubrication viscosity. We specify precision class (P5/P4), cage type (brass for high-speed oil-lubricated mining drives), and clearance (C3 for thermal expansion in steel mill environments). As an official SKF engineering partner with 15+ certified application engineers and dual ISO 9001/TS 16949 certification, every recommendation includes documented assumptions, margin factors, and failure mode analysis.

Operating Environment and Performance Demands

In wind power applications, these thrust ball bearings operate at <1 rpm in yaw systems with ambient temperatures ranging from −40°C (offshore winter) to +55°C (desert turbine nacelles), requiring stable preload retention and corrosion resistance without compromising axial rigidity. In mining equipment, they withstand repetitive 12–18 Hz impact frequencies from hydraulic breakers while resisting ingress of abrasive dust particles down to 5 μm. Steel industry use demands dimensional stability at sustained 100°C housing temperatures and resistance to thermal shock during water-cooled roller table shutdowns. All conditions demand exact match between calculated C₀/C ratio, contact stress (≤2.8 GPa per SKF Hertzian limits), and surface finish (Ra ≤0.2 μm on raceways).

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L₁₀ life: doubling C increases calculated life by 3.2× under identical load — hence the 153 kN rating of the 52216 enables 2.1× longer service than legacy 52212 designs at 115 kN. Pressed steel cages minimize mass inertia for rapid acceleration in pitch actuators, while machined brass cages maintain dimensional integrity at 120°C oil temperatures in mining drives. The 0° contact angle ensures pure axial load transfer — eliminating radial component errors that cause misalignment-induced edge loading in improperly specified angular contact alternatives. Precision classes P4 and P2 reduce vibration amplitude by 40–60% versus P0 at 1500 r/min, critical for generator cooling fan thrust positions where Z2V2 vibration compliance is mandatory. Surface hardness (62 HRC) and microstructure control (carbide dispersion per ASTM E1268) prevent subsurface white etching crack initiation under high-cycle thrust reversal.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses; in iron ore processing, crusher downtime exceeds $42,000/hour including downstream belt stoppages. Counterfeit or mis-specified thrust bearings typically deliver only 22–28% of rated L₁₀ life, accelerating cage fracture and raceway spalling. Installation errors — such as improper preload torque or misaligned housings — account for 31% of early failures, avoidable only with engineered mounting guidance. Per ISO 281:2021, total cost of ownership (TCO) over 10 years favors genuine SKF bearings with verified application support: 39% lower maintenance labor, 67% fewer unscheduled interventions, and zero liability exposure from non-compliant components. A heavy-duty thrust ball bearing for mining equipment must be traceable, validated, and supported — not merely stocked.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes an SKF Certificate of Conformity with unique serial traceability, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. For orders ≥500 pcs, third-party SKFTM factory audit and pre-shipment inspection can be arranged. Customers may verify our authorization status directly via SKF Group’s official “Find a Distributor” tool at skf.com/distributor.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: axial load magnitude and direction (static/dynamic/impact), rotational speed range, ambient and housing temperature, available mounting space (d, D, T envelope), lubrication method (grease type/volume or oil flow rate), and environmental exposure (dust, moisture, chemicals). Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, preload recommendation, cage and clearance selection rationale, and dimensional fit guidance — within 48 business hours. Every hour delayed in correct thrust bearing selection compounds operational risk; your first engineering dialogue is the most cost-effective step you’ll take this quarter.
