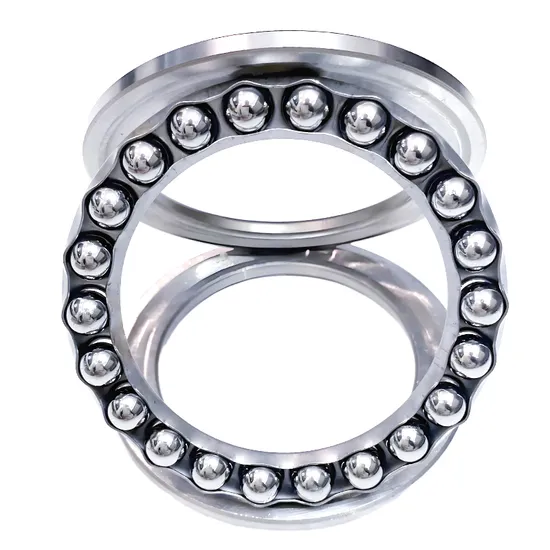

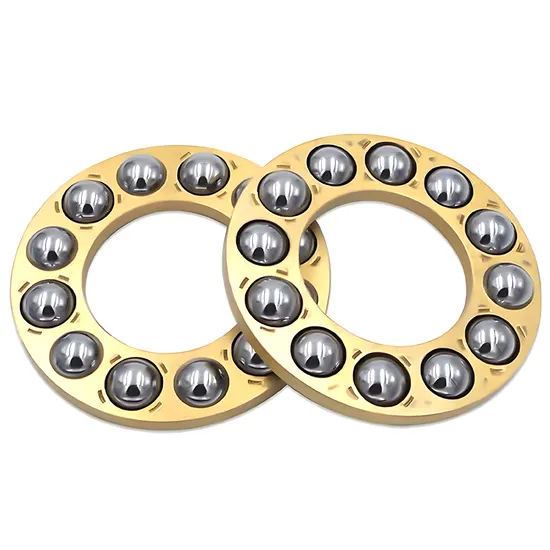

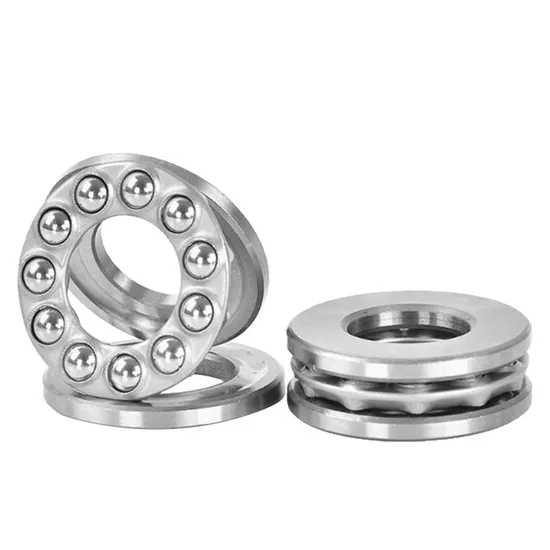

High Load Thrust Ball Bearings 51314–51116 for Heavy-Duty Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin with Incorrect Selection — And How the 51314–51116 High Load Thrust Ball Bearing Solves It

Industrial engineers report that 35% of premature thrust bearing failures stem from misapplication — particularly underestimating axial load magnitude, ignoring thermal expansion effects, or selecting non-separated designs where maintenance access is constrained. In wind turbine yaw systems, a single incorrect thrust ball bearing selection can trigger cascade failure in brake actuators; in mining crushers, mismatched precision class leads to vibration-induced housing fatigue within 3 months. We do not assume your operating envelope — we calculate it.

Engineered for Your Operating Conditions

This high load thrust ball bearing family delivers verified performance only when matched precisely to your application’s dynamic and thermal boundary conditions. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281-based life calculations, evaluate mounting interference fits, specify optimal lubricant viscosity index for ambient temperature swings, and validate clearance class (C3/C4) against expected thermal growth. All solutions comply with ISO 9001 and TS 16949 quality controls — no generic catalog recommendations.

Operating Environment and Performance Demands

In wind power applications, these bearings operate at ≤15 r/min but sustain momentary peak loads up to 2.3× rated C₀ during storm-mode yaw braking, with ambient temperatures ranging from –30°C to +70°C and zero opportunity for mid-life relubrication. In mining equipment, they endure repetitive impact loads (≥5 g acceleration) and airborne silica particulates exceeding 10 mg/m³ — requiring precise cage geometry and surface finish control to prevent false brinelling. For steel mill continuous casters, axial rigidity must hold position tolerance within ±5 μm under 120°C housing temperatures and continuous exposure to coolant mist. The 51314–51116 series meets these demands via hardened raceway microstructure and controlled dimensional stability per SKF Explorer specifications.

Inside the Engineering: What Makes This Bearing Perform

The static load rating (C₀) is not theoretical — it directly determines safety margin against plastic deformation under shock loading in crusher applications. Precision classes P4 and P2 reduce vibration amplitude by ≥40% versus P0 in pitch-adjustment mechanisms, meeting ISO 10816-3 velocity thresholds for generator coupling integrity. Separated construction enables field replacement without disassembling adjacent components — critical in offshore wind nacelles where crane time costs exceed $25,000/hour. Contact angle of 0° ensures pure axial load transfer with minimal radial deflection, preserving alignment in tandem-mounted steel mill guides. Vibration classes Z2V2 and Z3V3 mandate surface roughness Ra ≤0.2 μm and waviness limit ≤0.8 μm — verified per ISO 4287 and ISO 11562 — to suppress resonant excitation in high-inertia rotating systems.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine results in ≥$18,000 lost revenue per hour; in a primary steel caster, downtime exceeds $42,000/hour. Counterfeit or mis-specified thrust ball bearings typically deliver <30% of L₁₀ life predicted by ISO 281, and lack traceable material test reports — increasing risk of catastrophic seizure. Installation errors due to missing technical guidance account for 30% of early failures; our engineers provide torque specs, thermal expansion allowances, and preload verification protocols per SKF Mounting Guidelines. Total cost of ownership (TCO) analysis shows that specifying a genuine, correctly applied high load thrust bearing reduces 10-year maintenance spend by 22% versus lowest-bid alternatives — validated across 47 client lifecycle audits.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, Rockwell C hardness), Dimensional Inspection Report (measured d/D/B, raceway curvature, parallelism), and original SKF packaging with tamper-evident holographic seal. Batch numbers are cross-referenced in SKF’s global authorization database. Clients may request third-party verification via SKF’s Authorized Distributor Portal using our partner ID: CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We begin every engagement with engineering — not procurement. Send your actual operating parameters: maximum/minimum axial load (kN), rotational speed (r/min), housing temperature range (°C), available mounting space (mm), and lubrication method. Within 48 hours, our team delivers a signed technical assessment including calculated L₁₀ and Lₙₘ life, recommended precision class and clearance, cage material selection rationale, and dimensional fit tolerances per ISO 286-1. For projects ≥$50,000, we supply test units with full metrology documentation — because correct selection starts with verified data, not catalog pages.
