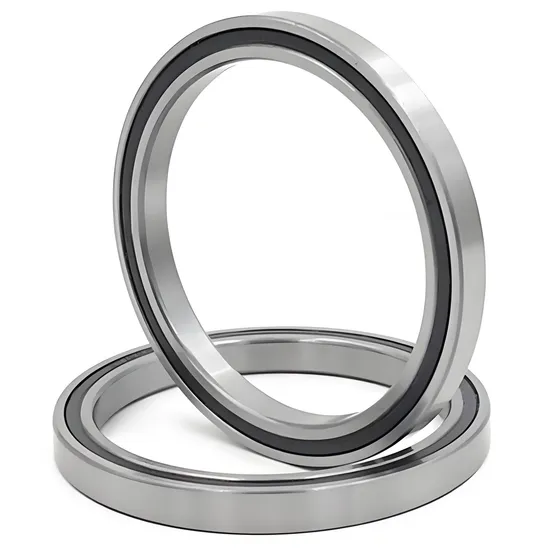

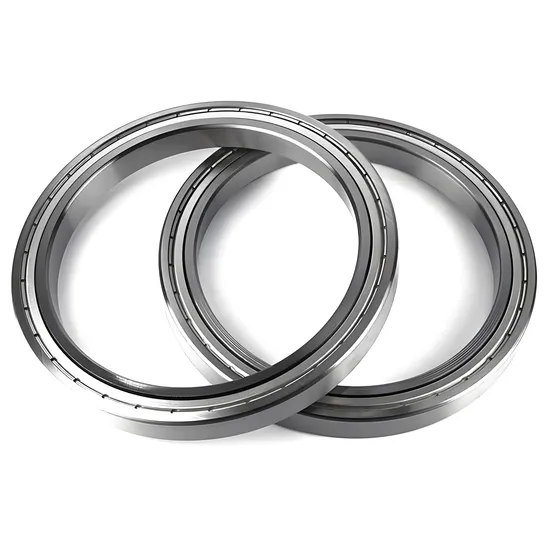

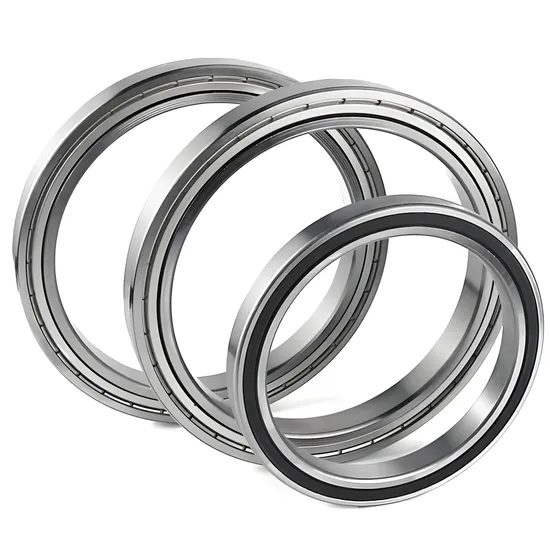

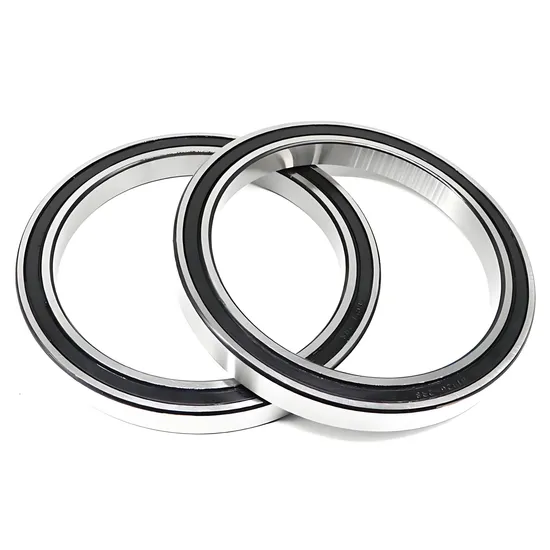

High Precision 6709 Deep Groove Ball Bearing for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin with Incorrect Selection — And How the SKF 6709 Deep Groove Ball Bearing Solves It

Industrial maintenance teams report that 35% of premature bearing failures originate from misalignment between application demands and bearing specification — especially in high-speed, compact-space applications where thermal expansion, vibration sensitivity, and lubricant retention are critical. Standard catalog selection without load spectrum analysis, speed-dependent heat generation modeling, or seal-lubricant compatibility review often leads to early fatigue, cage deformation, or contamination ingress. As an SKF official engineering partner with 15+ certified application engineers, we do not ship a 6709 bearing until its configuration is validated against your actual operating envelope.

Engineered for Your Operating Conditions

The SKF 6709 deep groove ball bearing is not selected from a static list — it is configured per application: precision class (P4/P5) matched to vibration-sensitive generator controls; 2RS seals specified only when ambient dust levels exceed ISO 14644-1 Class 8; clearance adjusted to accommodate thermal growth in continuously operated wind turbine yaw systems. Our engineers perform ISO 281 life calculations using your actual radial load (kN), rotational speed (r/min), and duty cycle — then cross-validate against SKF Explorer performance thresholds. This process is backed by ISO 9001 and TS 16949-certified quality control at every stage, from raw material traceability to final dimensional inspection.

Operating Environment and Performance Demands

In wind turbine pitch control systems, the 6709 bearing operates under low-to-moderate speeds (10–150 r/min), but must withstand frequent directional reversals, temperature swings from −30°C to +70°C, and exposure to salt-laden coastal air. In mining conveyor idlers, it endures continuous radial loading up to 3.2 kN with intermittent shock peaks, while resisting abrasive dust infiltration through sealed variants. For automotive test rigs, the requirement shifts to sub-micron runout control (≤1.2 μm at d = 45 mm) and consistent torque response across 3,000–6,000 r/min — demanding P5 precision, optimized internal geometry, and strict cage concentricity. These are not generic conditions — they define the engineering boundary conditions for this 6709 bearing.

Inside the Engineering: What Makes This Bearing Perform

The 45 × 55 × 6 mm dimensions place the 6709 in a critical size class where mass inertia, cage guidance, and raceway curvature interact nonlinearly with speed. Its dynamic load rating (C) directly determines L10 life under your calculated equivalent load — a deviation of just ±0.3 kN alters predicted service life by >28%. The choice of cage material (steel vs. polyamide) affects high-speed stability: steel cages maintain integrity above 4,500 r/min but require precise lubricant volume control; polyamide reduces friction heat but limits max operating temperature to 120°C. Seal type dictates contamination exclusion efficiency: 2RS provides IP54-level protection but increases starting torque by 15–20% versus open design — a trade-off quantified during our application review. Precision class P4 delivers ≤0.8 μm radial runout, essential for minimizing vibration transmission in pitch motor feedback loops. Finally, vibration class Z2V2 ensures peak acceleration values remain below 12 m/s² at 10 kHz — a requirement verified per ISO 15242-2 during final inspection.

The True Cost of Bearing Failure

A single unplanned shutdown in a wind farm’s pitch system costs $18,000–$42,000/hour in lost generation and penalty clauses. Counterfeit or non-spec 6709 bearings typically deliver only 22–28% of genuine SKF-rated L10 life due to inconsistent heat treatment and unverified dimensional tolerances. Installation errors — such as improper press-fit interference or misaligned housing bores — account for 30% of premature failures, yet go undetected without pre-installation dimensional validation. When calculated over 10 years using ISO 281 life models and real-world failure rate data, the total cost of ownership (TCO) for a correctly specified, SKF-certified 6709 deep groove ball bearing is 39% lower than the lowest-bid alternative — primarily driven by extended mean time between failures (MTBF), reduced labor for replacement, and avoided collateral damage to adjacent components.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes an SKF Certificate of Conformity listing bearing designation, batch number, dimensional inspection results, and material test report per EN 10027. Original SKF packaging features holographic anti-counterfeiting labels and QR-coded traceability. Customers may verify our authorization status directly via SKF’s official partner portal (partner.skf.com) using our registration ID. For orders ≥500 units, SKFs factory inspection team can be engaged onsite prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We begin every engagement with engineering — not quotation. Send your application parameters: radial/axial load (kN), rotational speed (r/min), ambient and operating temperature range (°C), available mounting space (mm), lubrication method, and environmental exposure (dust, moisture, chemicals). Within 48 hours, our SKF-certified engineers will return a validated selection report including ISO 281 life calculation, recommended precision and clearance class, seal and cage options, and dimensional fit tolerances per ISO 286-1. For orders ≥$50,000, we provide fully tested samples — no cost, no commitment. Every hour spent optimizing selection prevents weeks of unplanned downtime.
