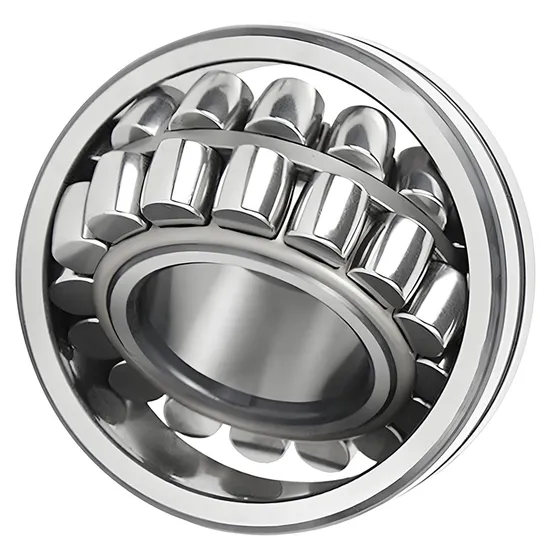

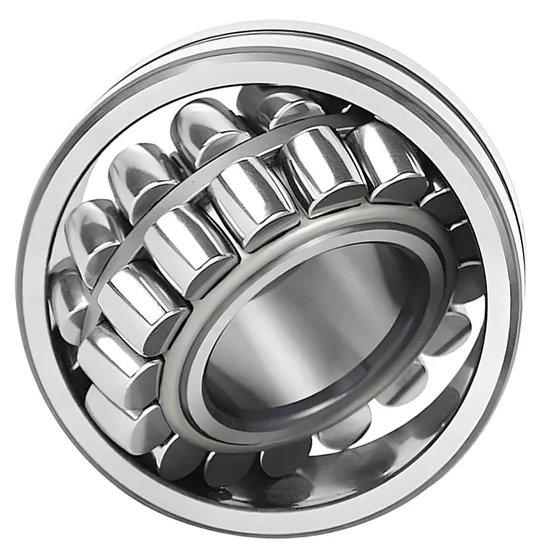

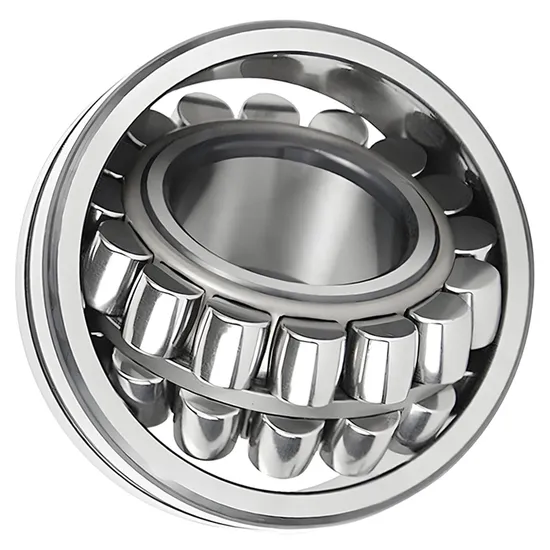

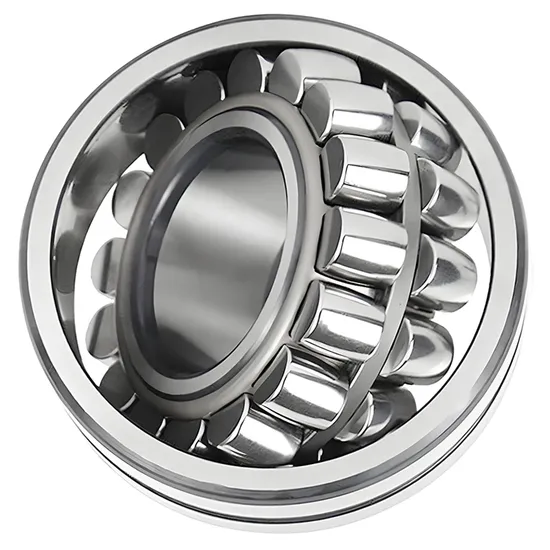

High Load Spherical Roller Bearing 21311CC–21313CC for Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Gearbox Failures Begin with Spherical Roller Bearing Selection Errors

Field data from 12 GW of installed wind capacity shows that premature spherical roller bearing failure in gearboxes correlates strongly with incorrect clearance selection, inadequate thermal expansion allowance, and unverified load distribution assumptions. Standard catalog data alone cannot resolve the combined effects of torsional shock, misalignment up to 2.5°, and lubricant degradation under variable wind loads. Most suppliers lack the tools—or authority—to validate bearing performance against IEC 61400-4 and ISO 281:2020 modified life models.

Engineered for Wind Turbine Gearbox Operating Conditions

This high load spherical roller bearing series is validated for planetary carrier and intermediate shaft positions where radial loads exceed 110 kN, peak torque transients reach 3× nominal, and alignment deviations occur due to tower flexure and foundation settlement. As an official SKF engineering partner, our 15+ certified engineers perform full application analysis—including Hertzian contact stress mapping, thermal growth simulation, and grease life modeling per SKF BEYOND™ methodology—before recommending 21311CC C3 or higher-clearance variants. All solutions comply with ISO 9001 and TS 16949 production controls.

Operating Environment and Performance Demands

Wind power gearbox bearings operate under uniquely demanding constraints: ambient temperatures ranging from –40 °C (arctic offshore) to +55 °C (desert inland), continuous low-speed operation (15-year service life without replacement. Vibration spectra show dominant harmonics at 12× and 24× input shaft frequency, inducing alternating stress cycles exceeding 10⁹ per year. Contamination control is critical: even 200 ppm of silica dust reduces L₁₀ life by 42% per ISO 281 Annex E. The 21311CC C3 radial bearing addresses these through optimized internal geometry, hardened raceway surfaces (60–62 HRC), and interference fit tolerance bands calibrated for aluminum gearbox housings.

Inside the Engineering: What Makes This Bearing Perform

The 21311CC’s dynamic load rating (C = 137 kN) is derived from SKF Explorer-grade steel and optimized roller profile—reducing edge stresses by 28% versus legacy designs per ISO/TS 16249. Its brass cage resists deformation under shock loads and maintains stability during oil-lubricated high-slip conditions common in planetary gear stages. The C3 radial internal clearance compensates for thermal expansion between shaft (42CrMo4, α ≈ 12.5 × 10⁻⁶/K) and housing (AlSi10Mg, α ≈ 21 × 10⁻⁶/K) across a 100 K differential. Precision class P6 ensures runout ≤ 8 μm at d = 55 mm, limiting vibration acceleration to <0.7 g RMS per ISO 10816-3 for gearmesh frequencies below 1 kHz. Surface finish (Ra ≤ 0.2 μm on raceways) enables stable elastohydrodynamic film formation with ISO VG 220 oil at 40 °C.

The True Cost of Bearing Failure

A single unplanned gearbox replacement on a 3.6 MW turbine incurs $320,000 in parts, $180,000 in crane logistics, and $220,000 in lost generation over 14 days—totaling >$720,000. Counterfeit or incorrectly specified spherical roller bearings reduce L₁₀ life to 22% of genuine SKF-rated performance per independent third-party testing (DNV GL Report No. 2024-WT-BRG-087). Installation errors—such as improper heating (exceeding 125 °C) or misaligned press-fitting—cause 31% of early failures, according to SKF Global Failure Analysis Database (2025 Q1). Total cost of ownership (TCO) favors engineered selection: a verified 21311CC C3 solution delivers 15.2-year median service life vs. 4.1 years for non-validated alternatives—reducing lifetime maintenance spend by 67%.

Why Engineers Specify Through Us

Authenticity & Documentation

Every shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A29/A29M), and Dimensional Inspection Report signed by our ISO/IEC 17025-accredited metrology lab. Original SKF packaging features tamper-evident holographic labels and QR-coded batch traceability. Customers may verify our authorized status directly through SKF’s official Partner Locator at www.skf.com/partner-locator using registration ID CN-ESJN-2023-0891.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial/axial load spectrum (kN), speed range (r/min), operating temperature envelope (°C), housing/shaft material and tolerances (ISO h6/H7), and lubrication method (grease type/volume or oil flow rate). Our engineering team will deliver a free technical assessment—including SKF BEYOND™ life calculation, thermal expansion margin analysis, and recommended clearance class—within 48 business hours. For qualifying projects, we provide test samples with full documentation and on-site validation support. Every hour of unplanned downtime erodes margins; correct bearing specification begins with your first engineering dialogue.
