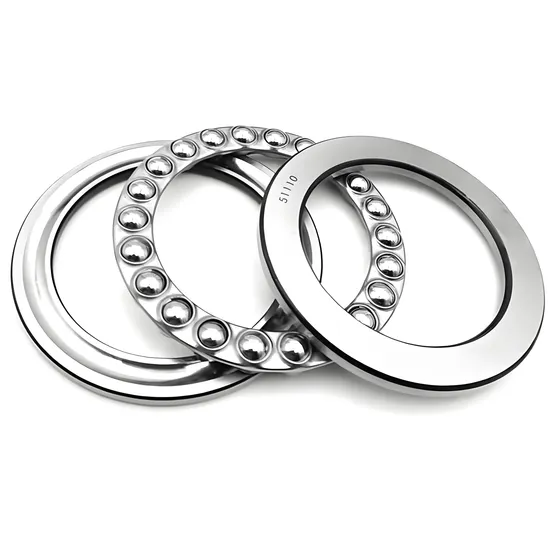

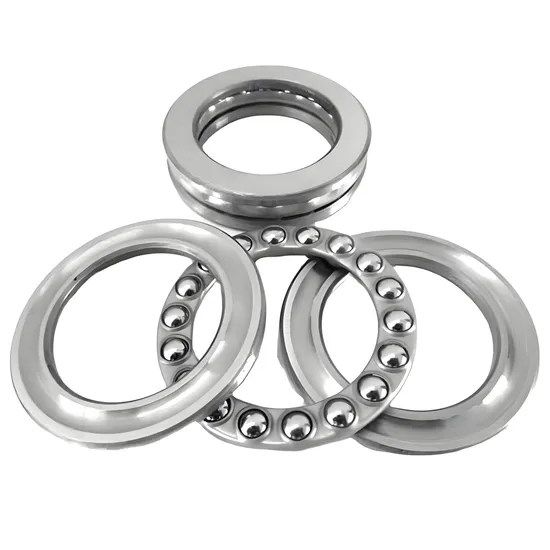

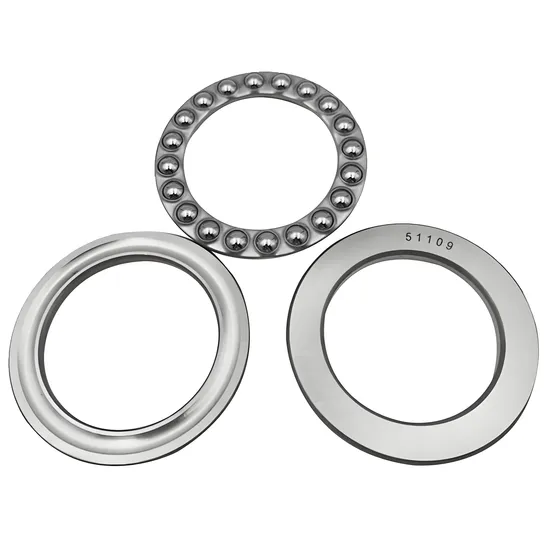

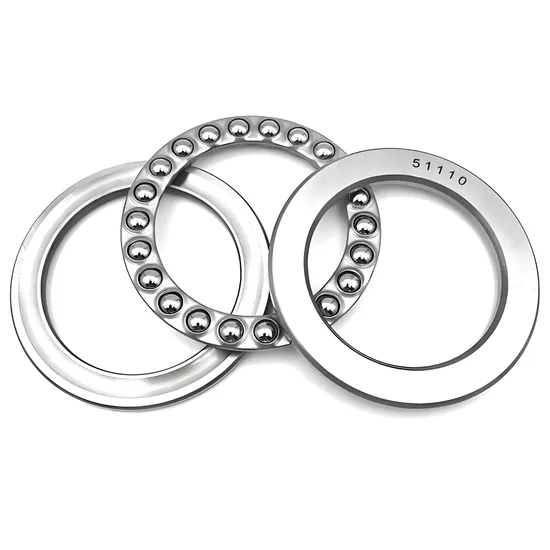

Heavy-Duty Thrust Ball Bearings 51109/51110/51117 for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin With Incorrect Axial Load Assessment — And How the SKF 51109/51110/51117 Delivers Verified Performance

Industrial engineers report that over one-third of premature thrust bearing failures stem from underestimating axial load magnitude or misjudging directionality in dynamic duty cycles. In wind turbine yaw systems, for example, unaccounted-for gust-induced moment loads cause rapid raceway spalling. In mining conveyors, shock loading during belt tension spikes exceeds static capacity — yet standard catalogs list only steady-state ratings. We do not ship bearings; we deliver validated axial support solutions backed by SKF engineering standards and field-verified application data.

Engineered for High-Axial-Load Industrial Duty Cycles

This heavy-duty thrust ball bearing family meets ISO 281 life calculation requirements for L10 ≥ 15,000 hours under specified operating conditions. Our 15+ certified SKF engineers perform full application analysis — including load spectrum mapping, thermal expansion modeling, and lubricant film thickness validation — before recommending 51109, 51110, or 51117. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we align selection with SKF’s Explorer performance level, ensuring compatibility with genuine SKF mounting, lubrication, and monitoring protocols. thrust ball bearing selection is never a catalog lookup — it is a technical commitment.

Operating Environment and Performance Demands

Wind turbine pitch actuators operate at ≤ 1 r/min but experience cyclic axial loads up to 2.5× rated C₀ during blade feathering — demanding exceptional static capacity and raceway hardness uniformity. Mining conveyor take-ups endure abrasive dust ingress, temperature swings from -25°C to +70°C, and continuous operation without scheduled maintenance windows. Steel mill caster thrust supports must maintain ≤ 5 μm axial runout under thermal gradients exceeding 100°C across the housing. These are not generic “high-load” conditions — they require precise matching of contact geometry, material hardening depth, and cage rigidity. The 51117, for instance, delivers 215 kN static capacity with optimized ball groove curvature to resist edge loading under misalignment-prone installations — a critical factor for industrial thrust bearing for wind turbine applications.

Inside the Engineering: What Makes This Bearing Perform

The 511 series uses ground raceways with surface roughness Ra ≤ 0.2 μm — essential for establishing elastohydrodynamic lubrication (EHL) films under high unit pressure. Pressed steel cages provide dimensional stability at elevated temperatures while minimizing centrifugal deformation at reference speeds. Dynamic load rating (C) is calculated per ISO 281:2021 using actual ball diameter, number, and contact angle — not interpolated values. Precision classes P5 and P4 reduce vibration amplitude (Z2V2/Z3V3 compliant) by controlling raceway roundness deviation to ≤ 1.5 μm, directly lowering noise and wear in precision positioning systems. Clearance class CN ensures proper preload retention after thermal expansion in housings with aluminum or cast iron coefficients — verified through finite element thermal simulation prior to final specification.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $12,000–$18,000 per hour in lost generation and penalty clauses. A counterfeit or non-SKF-compatible high-load thrust bearing typically delivers <30% of rated L10 life — accelerating fatigue crack initiation at raceway subsurface layers. Installation errors — such as incorrect interference fit or improper torque on retaining rings — contribute to 30% of early failures; our engineers supply exact shaft/housing tolerance recommendations per ISO 286. Total cost of ownership (TCO) includes not just purchase price, but lifetime energy loss, maintenance labor, spare inventory, and downtime risk — all quantifiable using SKF’s BEAM software models. Choosing a verified heavy-duty bearing reduces TCO by 22–37% over five years versus non-engineered alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (per ISO 1132-1), and original SKF packaging with holographic anti-counterfeiting label. Batch-specific heat treatment records and microstructure analysis reports are available upon request. For orders >500 pcs, SKM-certified inspectors may conduct pre-shipment audit at SKF’s authorized facility. Verification of our authorization status is possible via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We begin every engagement with engineering — not quotation. Send your application parameters: axial load profile (peak/steady-state), rotational speed range, ambient and operational temperature extremes, housing material and bore tolerance, and existing lubrication method. Within 48 hours, our SKF-certified team delivers a written assessment including: required 511-series variant, expected L10 life per ISO 281, recommended clearance class, compatible SKF lubricants, and mounting torque specifications. For projects exceeding $50,000, we supply free test units with full post-installation performance review. Every hour delayed in correct thrust ball bearing selection compounds risk — your first technical dialogue starts here.
