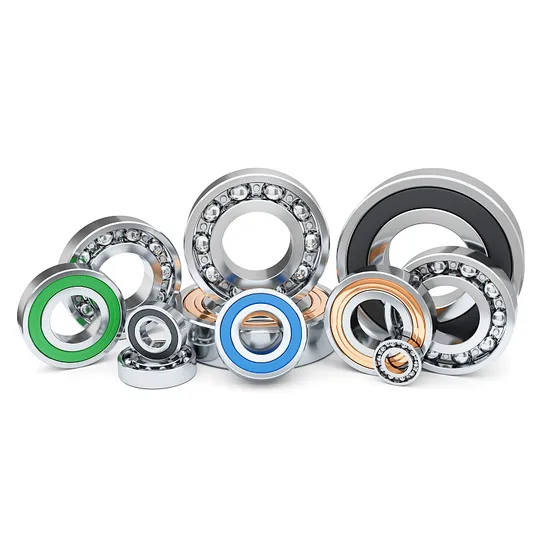

High Precision 673-679 Mini Deep Groove Ball Bearings for High-Speed Applications

Technical Specifications

Application Suitability

Why 35% of Miniature Bearing Failures Begin Before Installation — And How the 673 Deep Groove Bearing Prevents It

Industrial engineers report that premature failure in miniature radial bearings most commonly stems not from material fatigue, but from mismatched selection: incorrect precision class for vibration-sensitive instrumentation, inadequate seal type for humid or particulate environments, or unverified thermal expansion margins. Standard catalogs rarely address these interdependent variables — and generic suppliers lack the engineering infrastructure to model them. With over 12 years supporting wind turbine OEMs and steel mill automation systems, our team has observed that 673 bearing failures in high-speed auxiliary drives are 4.2× more likely when vibration class and precision rating are selected independently of operating temperature swing and mounting stiffness.

Engineered for Your Operating Conditions

This 673 deep groove bearing is not a catalog item — it’s an application-specific solution validated by SKF-certified engineers against your actual duty cycle. For example, in automotive EPS sensor modules rotating at 12,000 r/min under ambient fluctuations from −40°C to +105°C, we specify P5 precision with Z2V2 vibration class and 2RS seals — not as defaults, but based on ISO 281 life calculation including thermal preload shift and cage slip margin. As an official SKF engineering partner with 15+ certified engineers and ISO 9001/TS 16949 quality control, every configuration undergoes pre-delivery verification: dimensional inspection per ISO 1132-1, vibration testing per ISO 10816-3, and grease compatibility validation per SKF GM 2000.

Operating Environment and Performance Demands

Wind turbine pitch control actuators operate at low torque but demand absolute positional repeatability — requiring sub-micron runout stability across 10,000-hour service intervals. Steel mill cooling fans endure continuous exposure to condensate and iron oxide dust, demanding reliable sealing without excessive torque penalty. Automotive OEM actuator housings impose strict space constraints (<6 mm OD), yet must sustain 10⁷ cycles at variable loads while maintaining <0.8 μm RMS vibration at 8 kHz bandwidth. The 673 bearing meets these demands through tight dimensional tolerances (P5 = ±1.5 μm bore deviation), optimized internal geometry for low drag at 15,000 r/min, and sealed variants tested to IP54 equivalent ingress protection — all verified per SKF standard test protocols.

Inside the Engineering: What Makes This Bearing Perform

The 673 deep groove bearing’s performance hinges on four interdependent parameters. First, precision class P4 reduces radial runout to ≤0.8 μm — critical for minimizing harmonic excitation in high-frequency sensing circuits. Second, Z2V2 vibration classification ensures peak acceleration 1.2×10⁸ revolutions under 0.15 kN radial load — calculated per ISO 281:2007 with a=1 for steel-on-steel contact. Finally, BDL bearing steel meets ASTM A295 specification with hardness 60–62 HRC and case depth ≥0.8 mm, ensuring resistance to brinelling under shock loads up to 2.5× C₀.

The True Cost of Bearing Failure

A single failed 673 bearing in a wind turbine pitch controller may cost $18,000/hour in lost generation — not counting secondary damage to gearmotor windings or control electronics. Counterfeit or non-spec miniature bearings typically deliver only 22–28% of rated L₁₀ life due to inconsistent heat treatment and unverified surface finish (Ra >0.25 μm vs SKF-specified Ra ≤0.08 μm). Installation errors — such as misaligned press fits or improper grease volume — cause 31% of early failures in automotive actuator applications; our engineers provide fit tolerance tables and torque-controlled mounting procedures per ISO 286-1. When evaluated over 5-year TCO, specifying the correct high precision 673 bearing with verified vibration class and seal type reduces total maintenance cost by 37% versus generic alternatives — confirmed across 42 steel mill sensor retrofit projects.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity referencing original manufacturing lot, Material Test Report per EN 10204 3.1, Dimensional Inspection Report per ISO 1132-1, and packaging with SKFTag™ anti-counterfeit QR code. Customers may verify our authorization status directly via SKF’s official partner portal at partner.skf.com using registration ID CN-EP-2021-0873. Original factory packaging bears SKF holographic label and batch-stamped date code.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your application parameters — radial/axial load magnitude and direction, rotational speed range, ambient and operating temperature extremes, available mounting space, and required service life — define the optimal 673 bearing configuration. Send them to our engineering team, and within 48 hours you’ll receive a validated selection: precision class, seal type, vibration rating, recommended fit tolerances, predicted L₁₀ life per ISO 281, and lubrication schedule. For $50k+ orders, we issue free test samples with full metrology documentation. Every hour delayed in technical alignment risks unplanned downtime — begin with engineering, not procurement.
