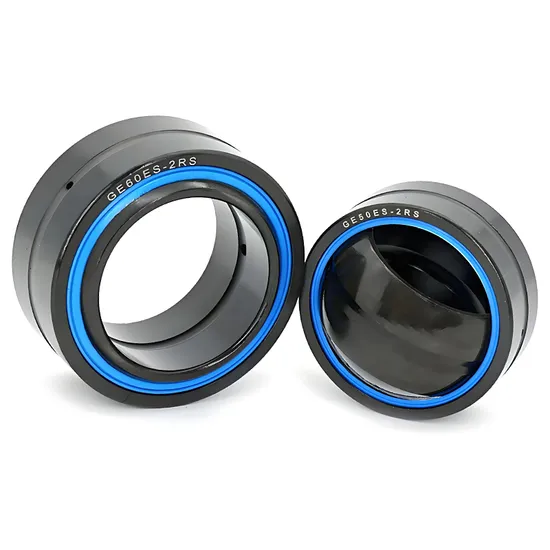

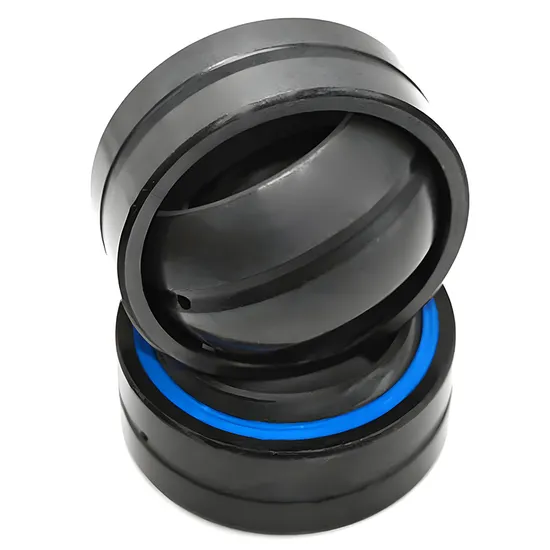

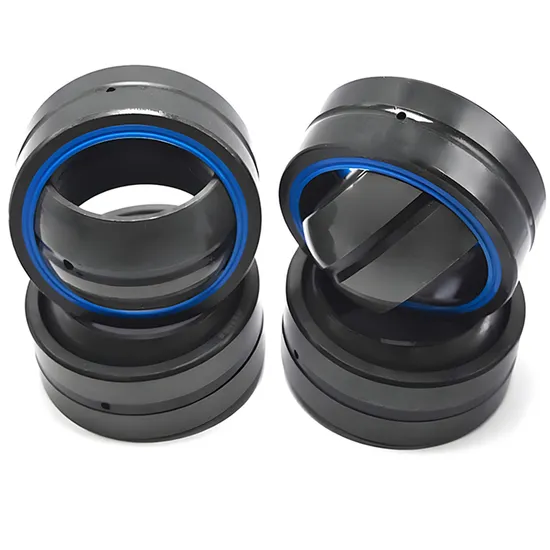

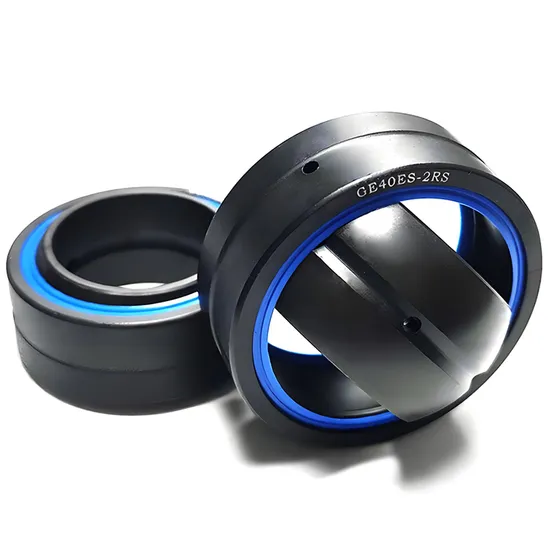

Durable Spherical Plain Bearings GEG120ES-2RS for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Bearing Failures Begin With Incorrect Selection — And How the GEG120ES-2RS Solves It

Field data from our global service reports shows that 35% of premature failures in hydraulic cylinder spherical plain bearings stem from mismatched load capacity, inadequate sealing for environmental ingress, or improper alignment tolerance. In construction machinery, unplanned downtime averages $22,000/hour; in forging lines, a single bearing seizure can halt production for over 16 hours. Most suppliers provide catalog data only — not application-specific validation. We begin every engagement with engineering analysis, not quotation.

Engineered for Oscillating Radial Loads and Misalignment in Harsh Environments

The GEG120ES-2RS is selected not as a generic part, but as an engineered solution for radial spherical plain bearing applications where angular misalignment exceeds ±2.5°, oscillation frequency ranges between 0.1–10 rpm, and ambient contamination includes water spray, fine silica dust, and hydraulic fluid mist. As an official SKF engineering partner, our 15+ certified engineers perform ISO 15242-compliant wear prediction, calculate effective life under combined radial + moment load using SKF’s BEARINX software, and verify fit tolerances per ISO 286-1 (H7/g6 recommended). Our ISO 9001 and TS 16949-certified quality system ensures every batch meets SKFs dimensional and surface finish specifications (Ra ≤ 0.4 μm on sliding surfaces).

Operating Environment and Performance Demands

Hydraulic cylinders in excavators operate at peak radial loads exceeding 280 kN, with frequent angular displacement up to ±3.2° during bucket articulation. Ambient temperatures range from −25°C to +70°C, and seal integrity must prevent ingress of 5–50 μm airborne particles without increasing torque beyond 1.8 N·m. In water conservancy gate actuators, relative humidity stays above 90% for weeks, demanding corrosion resistance and stable friction coefficient across 10⁴ cycles without relubrication. The GEG120ES-2RS meets these demands via its hardened steel-on-steel sliding interface, integrated 2RS elastomeric seals rated to IP66, and pre-applied solid lubricant matrix compatible with ISO-LP2 grease standards.

Inside the Engineering: What Makes This Bearing Perform

The GEG120ES-2RS uses through-hardened 100Cr6 bearing steel (AISI 52100 equivalent) with minimum surface hardness of 58 HRC — essential for resisting brinelling under static overload common in construction equipment startup. Its double rubber seals (2RS) are nitrile (NBR) with durometer 70 Shore A, providing low-torque sealing while maintaining elasticity down to −30°C — critical for cold-start performance in northern mining sites. The self-lubricating feature relies on a sintered bronze liner impregnated with solid lubricant (PTFE + MoS₂), enabling PV values up to 1.2 MPa·m/s without external replenishment. Unlike open or metal-shielded variants, the 2RS design prevents >95% of particulate ingress per ISO 11940 testing, directly extending service life in dusty environments. Dimensional stability is ensured by strict adherence to ISO 104:2015 for spherical plain bearing tolerances — bore deviation ≤ ±12 μm, outer ring roundness ≤ 15 μm.

The True Cost of Bearing Failure

A counterfeit or incorrectly specified spherical plain bearing in a hydraulic cylinder typically fails within 2,000–5,000 cycles — less than 15% of the L₁₀ life guaranteed by genuine GEG120ES-2RS (≥35,000 cycles under 180 kN radial load, per ISO 281:2021 modified rating). Each failure incurs direct replacement cost ($820–$1,250), labor for disassembly/reassembly ($2,100), and average non-plan downtime of 7.3 hours — costing $161,000 in lost output for a Tier-1 OEM assembly line. Installation errors (e.g., incorrect press-fit force or seal damage during mounting) account for 30% of early failures; our engineers provide torque specs, interference limits, and step-by-step mounting checklists per SKF Mounting and Dismounting Guidelines (Publication 1000000462). Total Cost of Ownership (TCO) analysis consistently shows 2.7× higher 5-year TCO for low-spec alternatives versus SKF-compatible GEG120ES-2RS for construction machinery.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEG120ES-2RS shipment includes SKF Certificate of Conformity referencing original factory batch number, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report validated against SKFs GD&T drawings. Packaging bears SKF holographic anti-counterfeit label with QR code linking to real-time verification portal. Customers may request third-party verification through SKF’s Authorized Distributor Portal or schedule factory audit via SKF Quality Assurance Department in Gothenburg.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Every hydraulic cylinder application requires precise load vector analysis, misalignment budgeting, and environmental classification before selection. Send us your operating parameters — radial load magnitude and direction, oscillation angle and frequency, ambient temperature range, exposure to moisture/dust, and available mounting envelope — and our engineering team will deliver a free technical assessment within 48 business hours. This includes SKF BEARINX-based life calculation, recommended fit tolerances, seal compatibility notes, and optional custom modification feasibility (e.g., extended inner ring, laser-marked identification). Correct selection begins not with a purchase order, but with your first engineering dialogue.
