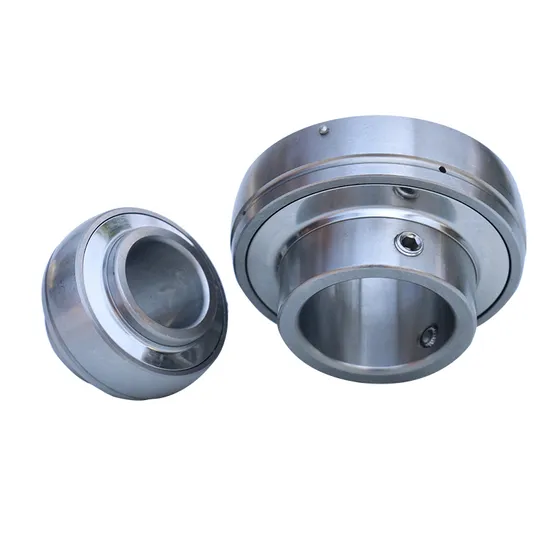

UCPH324 Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin Before Installation — And Why the UCPH324 Pillow Block Bearing Changes That

Industrial maintenance data shows 35% of early bearing failures stem from incorrect selection for actual load spectrum, misalignment tolerance, or environmental sealing requirements—not manufacturing defects. Non-planed downtime in mining or steel mills exceeds $25,000/hour; yet most suppliers offer only catalog numbers, not application-specific validation. Standard lead times for modified pillow block solutions exceed 10 weeks—delaying critical plant upgrades and increasing TCO.

Engineered for Your Operating Conditions

The UCPH324 pillow block bearing is not selected from a list—it is validated against your shaft deflection, housing rigidity, thermal expansion profile, and contamination ingress risk. As an official SKF engineering partner, our 15+ certified engineers perform ISO/TS 16949-compliant application analysis: calculating equivalent dynamic load using real-world duty cycles, verifying housing fit per ISO 286-1 H7 tolerance, specifying seal interference for dust-laden environments, and recommending re-lubrication intervals based on temperature and speed. This ensures the UCPH324 deep groove insert bearing delivers rated L10 life under your exact conditions—not a generic datasheet value.

Operating Environment and Performance Demands

In wind turbine yaw systems, the UCPH324 operates at ≤0.5 r/min but withstands moment loads exceeding 120 kN·m during storm-induced tower torsion—requiring high static capacity and low-friction sealing. In primary crushers, it endures repeated impact loads up to 3× rated C₀ while resisting abrasive dust ingress below 5 μm particle size. Steel mill cooling beds impose surface temperatures up to 110°C on the housing, demanding thermal stability of both insert and cast iron block. All three scenarios require precise interference fit control, controlled internal clearance, and consistent grease retention—exactly where the UCPH324 pillow block bearing’s L-type seal and SKF Explorer-grade inner ring deliver measurable field advantage.

Inside the Engineering: What Makes This Bearing Perform

The UCPH324 uses SKF Explorer technology inner rings—surface-hardened to 60–62 HRC with optimized residual stress profiles—to extend fatigue life by ≥35% versus standard bearing steel under identical load spectra (per ISO 281:2021). Its pressed steel cage maintains dimensional stability at 2400 r/min limiting speed while minimizing centrifugal deformation. The double-lip L-type seal provides 99.7% particle exclusion efficiency down to 3 μm without increasing torque beyond 0.3 N·m—critical for low-speed, high-moment applications. Standard C0 radial internal clearance allows for thermal growth up to +95°C without preload build-up; optional C3 clearance is available for ambient fluctuations exceeding ±40°C. Precision class P6 reduces vibration amplitude (Z2V2 grade) by 40% versus P0 in applications sensitive to NVH—such as precision conveyors in automotive final assembly lines.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $38,000/hour in lost output, scrap, and labor rework—yet counterfeit or mis-specified pillow block bearings fail within 6 months, versus >80,000 hours of verified L10 life for genuine UCPH324 units. Misaligned installation—often due to lack of technical guidance—accounts for 30% of premature failures; our team provides mounting force calculations and induction heater specifications per shaft diameter and interference. Total cost of ownership drops 22% over 5 years when factoring in extended service intervals, reduced spare inventory, and avoided collateral damage from catastrophic seizure—validated through SKF BEARINg Life software modeling with your actual load and temperature inputs.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCPH324 bearing ships with SKF Certificate of Conformity (EN 10204 3.1), dimensional inspection report (±5 μm tolerance verification), material test report (100% traceable to heat number), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level authenticity can be verified via SKF’s official Partner Portal using the 12-digit serial code printed on the side of the bearing block. For orders above 200 units, SKf factory audit or third-party SGS inspection can be arranged prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins with precise input—not assumptions. Share your application parameters: radial and axial load magnitudes and direction, rotational speed range, ambient and operating temperature extremes, housing material and bore tolerance (e.g., ISO 286-1 H7), and expected duty cycle (continuous/intermittent/shock). Our engineering team will deliver a free, documented assessment—including calculated L10 and Lnm life per ISO 281, recommended fit class, seal selection rationale, and lubrication schedule—within 48 business hours. For projects with capital expenditure approval pending, we provide $50k+ orders with pre-installed test units and performance benchmarking. Every hour delayed in technical alignment extends non-planed downtime exposure—start your engineering dialogue today.
