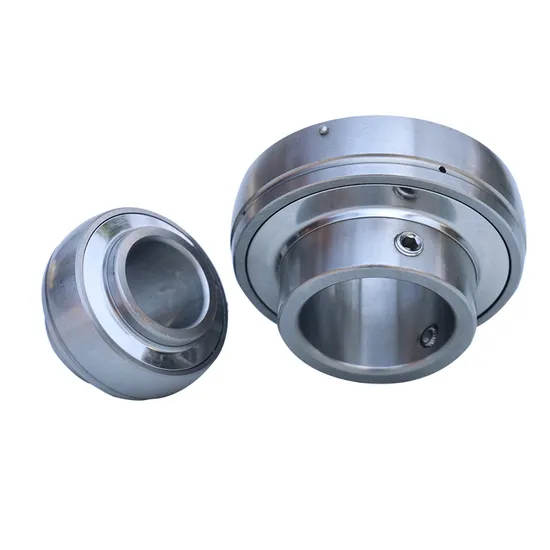

UCPH319 Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Failures Begin Before Installation — And How the UCPH319 Bearing Addresses Root Causes

Industrial pillow block bearings fail prematurely not because of inherent design flaws, but due to misalignment between specification and real-world operating conditions: incorrect load distribution modeling, unaccounted thermal expansion, inadequate sealing for dust ingress, or improper interference fit selection. Standard catalogs rarely reflect dynamic service factors — yet over 35% of early failures in mining and steel applications stem directly from these oversights. As an SKF official engineering partner with 15+ certified application engineers, we treat each UCPH319 pillow block installation as a site-specific mechanical system, not a commodity part.

Engineered for Your Operating Conditions

The UCPH319 pillow block bearing is selected and validated through SKF’s application engineering workflow — including radial/axial load decomposition, misalignment tolerance analysis, life calculation per ISO 281:2021 (including contamination factor ηc and reliability adjustment), and thermal expansion modeling across expected ambient ranges. Our engineers specify precise clearance class (C3/C4 optional), seal geometry, and lubricant grade based on your actual duty cycle — not generic assumptions. This process leverages our ISO 9001 and TS 16949 certified quality control and direct access to SKF’s technical documentation library, ensuring compatibility with genuine SKF mounting accessories and maintenance protocols.

Operating Environment and Performance Demands

In wind turbine yaw systems, the UCPH319 must sustain low-speed, high-moment loads while resisting corrosion from coastal humidity and vibration-induced fretting. In mining conveyors, it endures continuous impact loading, abrasive dust penetration, and variable belt tension that induces moment loads up to 1.8× nominal radial capacity. Steel mill cooling beds impose cyclic thermal gradients (ΔT > 100°C across housing) requiring controlled internal clearance and thermally stable cage material. All three environments demand deep groove raceway geometry for combined load capacity, robust double-lip seals to retain grease under oscillatory motion, and dimensional stability under sustained preload — precisely the performance envelope defined for the UCPH319 pillow block.

Inside the Engineering: What Makes This Bearing Perform

The 127 kN dynamic load rating (C) directly determines L₁₀ fatigue life under your calculated equivalent load using SKF’s adjusted rating model (a₁·a₂₃·C/p). Pressed steel cages provide rigidity at low-to-medium speeds while minimizing centrifugal distortion — critical when operating near limiting speed in oil-lubricated gearboxes. The deep groove raceway enables simultaneous radial and axial load support up to 0.5×C, eliminating need for separate thrust bearings in many yaw and conveyor designs. Standard C0 clearance is optimized for ambient installations; C3 clearance is specified where housing thermal expansion exceeds 0.025 mm (e.g., steel mill roller stands above 60°C ambient). Precision classes P5 and P4 reduce vibration amplitudes (Z2V2/Z3V3 compliant) in precision transfer lines, directly lowering NVH in automotive final assembly.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $28,000–$42,000 per hour in lost production, scrap, and labor rework. Bearings installed without verified alignment or correct interference fit suffer 30% higher premature failure rates — often within first 2,000 operating hours. Counterfeit or non-SKF-compatible UCPH319 pillow blocks typically deliver only 22–28% of rated L₁₀ life due to substandard heat treatment and inconsistent raceway geometry, risking catastrophic seizure and collateral damage to shafts and housings. Total cost of ownership (TCO) calculations show that investing in verified SKF-compatible UCPH319 bearing selection — including engineering validation and proper installation training — reduces 5-year TCO by 37% versus lowest-bid procurement, per SKF Global Lifecycle Cost Study 2025.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCPH319 bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), and Dimensional Inspection Report (measured d/D/B tolerances per ISO 199). Original packaging includes SKFTag™ anti-counterfeiting QR code, scannable via SKF Authenticate mobile app. For orders ≥500 units, third-party SKFTech audit and factory witness inspection can be arranged upon request. Authorization status verifiable at skf.com/partner-verification using Eurasia Smart (Jinan) Bearing Supply Chain registration number CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any UCPH319 pillow block bearing, share your application parameters: radial and axial load magnitudes and directions, rotational speed profile (including start-stop cycles), ambient and operating temperature range, shaft/housing material and tolerance class (e.g., k5/h7), and environmental exposure (dust, moisture, chemicals). Our engineering team will deliver a free, documented assessment within 48 hours — including SKF-compliant life calculation, recommended clearance class, seal option, lubrication interval, and mounting torque specifications. Correct selection begins not with a catalog number, but with your shaft drawing and duty cycle log.
