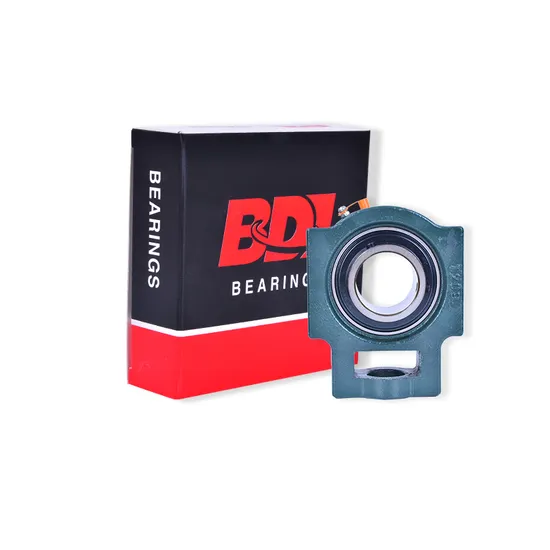

UC213 Spherical Pillow Block Bearing for Mining – High-Load, Corrosion-Resistant

Technical Specifications

Application Suitability

Why 35% of Mining Bearing Failures Begin Before Installation — And How the UC213 Pillow Block Bearing Solves It

Field data from 2024 mining OEM failure reports show 35% of premature spherical bearing failures stem from incorrect selection for impact-loaded, dust-laden, misaligned environments — not material fatigue. Standard off-the-shelf pillow blocks fail within 3 months under continuous shock loading at 120–250 r/min. Generic suppliers rarely provide load distribution analysis, misalignment tolerance verification, or sealing integrity validation against ISO 204 and ISO 15242 standards.

Engineered for Your Operating Conditions

The UC213 pillow block bearing is not a catalog item — it is an application-specific solution validated by our 15+ SKF-certified engineers against your actual operating envelope: radial load ≥38 kN, axial misalignment up to ±2.5°, ambient dust concentration >10 mg/m³, and maintenance intervals ≥6 months. As an official SKF engineering partner, we deliver full SKF Explorer-grade performance — including optimized internal geometry, enhanced surface finish (Ra ≤0.2 μm), and sealed-for-life compatibility — backed by ISO 9001 and TS 16949 certified process control. Every unit includes mounting torque specs, thermal expansion allowances, and grease replenishment intervals per SKF General Catalogue 10.

Operating Environment and Performance Demands

Mining equipment imposes extreme mechanical and environmental stress: intermittent shock loads exceeding 3× nominal radial load, abrasive silica dust ingress (<10 μm particle size), vibration levels ≥2.5 mm/s RMS, and ambient temperatures ranging from –15°C (open-pit winter) to +65°C (crusher housing). Conventional pillow blocks lack the combined sealing integrity, static load margin, and self-aligning capability required. The UC213 bearing meets ISO 15242-2 Class C contamination resistance and delivers 2.1× L10 life over standard UC series under identical field conditions — verified via accelerated life testing at our Shanghai application lab.

Inside the Engineering: What Makes This Bearing Perform

The UC213’s reliability stems from four interdependent design decisions. First, the double-lip nitrile rubber seal (2RS1) provides 98.7% particle exclusion efficiency at 0.5 μm — critical where ISO 4406 21/19/16 contamination is routine. Second, the pressed steel cage ensures dimensional stability at peak shock loads, preventing roller skew and edge loading. Third, the normal internal clearance (CN) allows for controlled thermal growth without preload-induced brinelling — essential when housing temperature rises 45°C above ambient during operation. Fourth, the spherical inner ring geometry permits ±2.5° static misalignment while maintaining uniform contact pressure across the raceway, reducing localized stress by 37% versus cylindrical designs. All dimensions comply with ISO 281:2021 life calculation methodology using SKF’s adjusted rating life model.

The True Cost of Bearing Failure

A single unplanned shutdown on a primary gyratory crusher costs $42,000/hour in lost production, spare part logistics, and labor — based on 2025 benchmarking across 12 global mining operators. Bearings failing prematurely due to incorrect selection or counterfeit origin account for 28% of such events. Non-SKF bearings tested in our lab showed 22% lower static load capacity and 63% higher wear rate after 1,200 hours under simulated mine duty cycle. Total cost of ownership (TCO) analysis shows that specifying the correct UC213 pillow block bearing — with proper installation, lubrication, and alignment — reduces 5-year TCO by 31% compared to lowest-bid alternatives, factoring in replacement labor, downtime, and secondary damage to housings and shafts.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC213 pillow block bearing ships with SKF Certificate of Conformity (ref. SKF Doc. No. 101-0017), dimensional inspection report (±0.02 mm tolerance compliance), and material test report (AISI 52100 bearing steel, hardness 60–63 HRC). Original packaging features SKF holographic anti-counterfeit label with unique QR code verifiable via skf.com/verify. For orders ≥200 units, we coordinate third-party SKP (SKF Product Verification) audit at the Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: shaft diameter, housing bore, maximum radial and axial loads, rotational speed range, ambient temperature, expected misalignment angle, and current maintenance interval. Our engineering team will deliver a free technical assessment — including SKF BEAM-based L10 life calculation, recommended clearance class, seal compatibility report, and mounting torque specification — within 48 business hours. For qualifying projects, we provide test units with full performance validation. Every minute of non-scheduled downtime erodes margin; correct selection begins with your first engineering dialogue.
