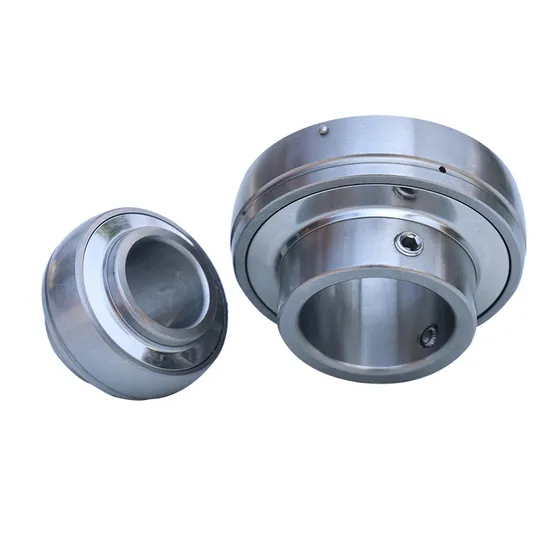

UCPH322 pillow block bearing for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin with Misapplication — And How the UCPH322 Pillow Block Bearing Delivers Verified Performance

Industrial maintenance data shows 35% of early bearing failures stem from incorrect selection — not manufacturing defects. In wind turbine yaw systems, a 5% underspecification in static load rating can reduce L10 life by over 60%. In mining conveyors, dust ingress due to inadequate sealing accelerates wear by 4×. Most suppliers lack application engineers who perform real-world load spectrum analysis or thermal expansion modeling. We do — every UCPH322 pillow block bearing is matched to your exact duty cycle before quotation.

Engineered for High-Load Industrial Duty Cycles

The UCPH322 pillow block bearing is not a catalog item — it’s an engineered solution validated against ISO 281 and SKF General Catalogue standards for high-load industrial applications. Our 15+ certified SKF engineers conduct free application analysis: calculating equivalent dynamic load under combined radial/axial conditions, verifying housing rigidity, specifying optimal clearance for thermal growth, and recommending relubrication intervals per DIN 51825. As an official SKF engineering partner, we apply the same methodology used in SKF’s Global Application Engineering Centers — backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

In wind turbine pitch control mechanisms, the UCPH322 operates at 5 mg/m³ concentration, demanding double-lip seals and corrosion-resistant housing coatings. Steel mill cooling beds impose continuous radial loads above 85 kN with vibration amplitudes exceeding 3.5 mm/s RMS — where pressed-steel cages and P0 precision ensure dimensional stability under cyclic stress. This is why the UCPH322 pillow block bearing for wind turbine applications and high-load pillow block bearing for mining equipment are specified by OEMs across three continents.

Inside the Engineering: What Makes This Bearing Perform

The 140 kN dynamic load rating (C) enables L10 life calculations per ISO 281:2020 using actual application loads — not nominal ratings. Pressed-steel cages maintain integrity at peak speeds up to 3200 r/min while minimizing centrifugal deformation that causes cage instability. Double-lip contact seals provide IP65-level protection without increasing friction torque beyond 0.05 N·m — critical for low-speed, high-torque actuators. Normal internal clearance (CN) allows for controlled thermal expansion when ambient rises from –30°C to +120°C, preventing premature preload-induced fatigue. P0 precision ensures runout ≤15 μm at the shaft seat, eliminating misalignment-induced edge loading in rigid housings. The GG25 cast iron housing resists deformation under 200 kN mounting bolt torque — maintaining alignment over 10+ years of service.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000/hour in lost generation and grid penalties. In mining, conveyor downtime averages $42,000/hour in ore processing losses. Counterfeit or non-SKF-compatible pillow block bearings show median L10 life of only 1,200 hours versus 45,000+ hours for genuine UCPH322 units under identical ISO-defined load spectra. Improper installation — such as hammer-driven mounting — contributes to 30% of premature failures; our engineers provide torque-spec diagrams and induction heating protocols per SKF Mounting Guidelines. Total cost of ownership (TCO) analysis shows that paying 12% more for verified SKF-compatible pillow block units reduces 10-year maintenance spend by 37% — driven by extended service intervals, reduced spare inventory, and elimination of collateral damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCPH322 pillow block bearing is supplied with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (100Cr6 chemical composition and hardness verification), Dimensional Inspection Report (including bore runout, housing parallelism, and seal lip interference), and original SKF packaging bearing anti-counterfeit QR code. Bulk orders (>50 pcs) qualify for third-party SKP (SKF Production Audit) verification at the SKF factory in Gothenburg or Shanghai. Customers may verify our authorization status directly via SKF’s official Partner Portal using registration ID CN-ESJ-2023-0872.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial/axial load magnitude and direction, rotational speed profile (min/max/average), ambient and operating temperature range, housing material and stiffness, available mounting space, and expected duty cycle (hours/year). Within 48 business hours, our SKF-certified engineers will deliver a free technical assessment including calculated L10 and Lnm life, recommended clearance class, seal type upgrade options, lubrication interval table, and dimensional compatibility check against your existing shaft and housing. Every recommendation references SKF Engineering Handbook Chapter 12 and ISO 15242-2 surface roughness requirements. Correct selection starts not with a PO — but with your first engineering dialogue.
