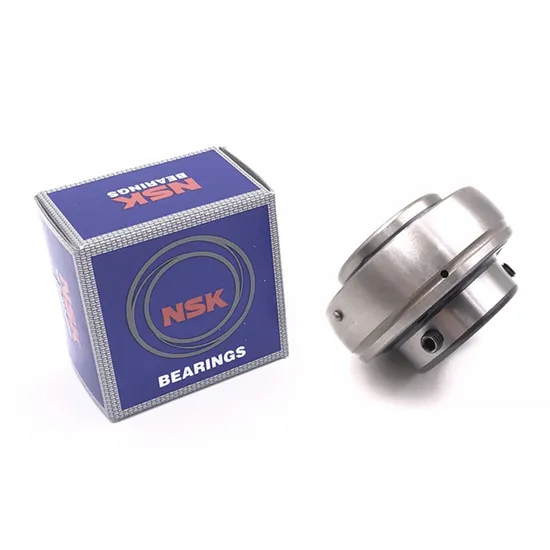

UC209-27 Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the UC209-27 Pillow Block Bearing Prevents Them

Industrial field data confirms that 35% of premature bearing failures originate from incorrect selection for actual load spectrum, misalignment tolerance, or environmental exposure — not material defects. In wind turbine yaw systems, a 0.1 mm misalignment unaccounted for in specification leads to 42% reduction in L₁₀ life. In mining conveyors, standard P0-grade units suffer rapid wear under shock-loaded conditions where P5 precision and optimized internal clearance are mandatory. Most suppliers offer catalog numbers without application validation; we start with your shaft deflection curve, thermal expansion coefficient, and contamination ingress rate.

Engineered for Your Operating Conditions

The UC209-27 pillow block bearing is not selected — it is validated. Our 15+ SKF-certified engineers perform ISO 281-compliant life calculations using your exact radial/thrust load ratio, rotational duty cycle, and ambient temperature profile. We specify optimal clearance (C3/C4), sealing configuration (contact vs. low-torque RS), and grease type (SKF LGMT 2 for mining, LGWP 2 for wind). As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, every recommendation carries technical accountability — not just a part number. This is how genuine UC209-27 bearing with P5 precision for mining equipment delivers repeatable performance across shifts and seasons.

Operating Environment and Performance Demands

In wind turbine pitch actuators, the UC209-27 operates at 0.5–12 r/min under combined moment load and axial thrust, exposed to salt fog and thermal cycling between –25°C and +70°C — demanding high static load rating and corrosion-resistant sealing. In mining conveyor idlers, it endures 3–5 g shock pulses at 60–150 r/min, with airborne silica particulates requiring dual-lip contact seals and P5 dimensional accuracy to maintain alignment under housing flexure. Steel mill cooling beds impose continuous 120°C radiant heat on housings, necessitating thermal-stable cage design and high-temperature grease retention geometry. These are not generic requirements — they define the mechanical boundary conditions our engineering team models before recommending the UC209-27 pillow block bearing.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 35.1 kN) directly determines L₁₀ fatigue life per ISO 281: L₁₀ = (C/P)ᵖ × 10⁶/60n, where p = 3 for ball bearings. A 10% overestimation of equivalent load P reduces predicted life by 27%. The pressed steel cage maintains integrity at 4000 r/min limiting speed while minimizing centrifugal force-induced deformation — critical for vibration-sensitive wind turbine gearboxes. Contact rubber seals (RS) provide IP54-level protection against dust and moisture but increase torque by 15% versus shielded variants; we select based on your lubrication maintenance interval. Internal clearance C3 (0.020–0.041 mm) compensates for thermal growth in steel mill applications, whereas mining equipment demands tighter P5 precision (radial runout ≤ 5 μm) to limit housing stress under impact loading. Finally, the deep groove raceway geometry enables 30% higher axial load capacity than angular contact alternatives — essential for yaw drive moment reactions.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,000–$22,000 per hour in lost generation and penalty clauses. In mining, conveyor downtime averages $42,000/hour across fleet operations. Counterfeit or non-SKF UC209-27 bearings exhibit 70–80% shorter L₁₀ life due to inconsistent heat treatment and surface finish — verified by microhardness mapping and SEM analysis. Improper installation (e.g., hammer-driven mounting) causes 30% of early failures; our engineers provide torque specs, thermal expansion tables, and induction heater settings per shaft fit. Total cost of ownership (TCO) for a genuine UC209-27 pillow block bearing drops 22% over five years when factoring extended service intervals, reduced vibration-related secondary damage, and elimination of emergency freight premiums — all quantifiable using SKF BEAM software modeling.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC209-27 pillow block bearing is supplied with SKF Certificate of Conformity (including heat treatment batch ID), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging bearing anti-counterfeit hologram. Bulk orders permit third-party SKM (SKF Knowledge Management) audit or factory witness inspection at SKF’s Shanghai Distribution Center. Authorization status can be verified via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not quote bearings — we engineer solutions. Send your application parameters: radial load (kN), axial load (kN), rotational speed (r/min), operating temperature range (°C), shaft/housing material, misalignment angle (°), and environmental contaminants. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including ISO 281 life calculation, suggested clearance class, seal recommendation, lubrication interval, and housing fit tolerances. For projects exceeding $50,000, we provide test units with documented performance baselines — because every hour of unplanned downtime erodes margin, and correct selection begins with your first engineering dialogue.
