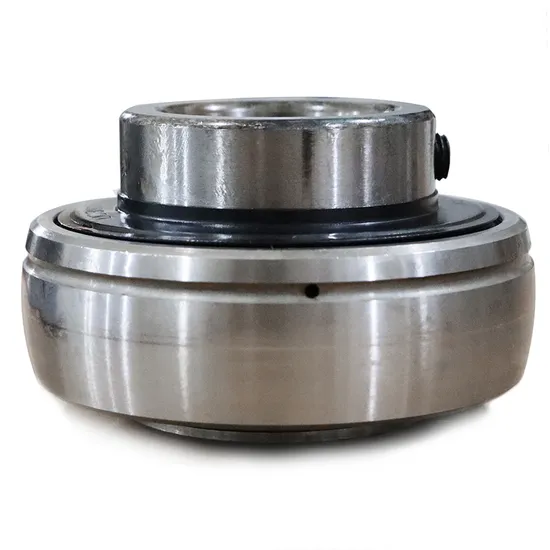

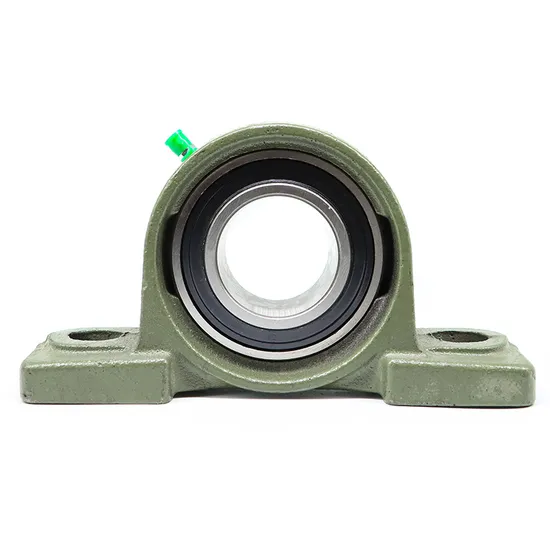

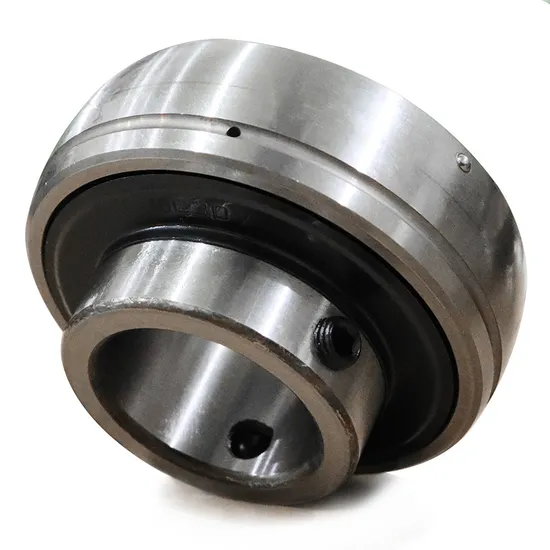

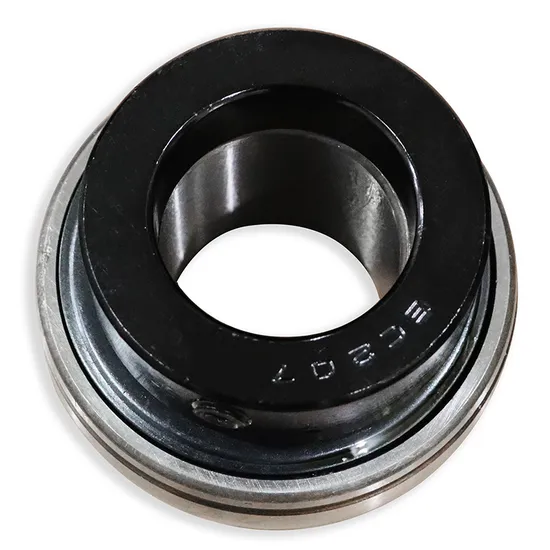

Stainless UC205 Insert Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And Why the Stainless UC205 Insert Bearing Eliminates That Risk

Industrial maintenance data shows 35% of premature bearing failures stem from incorrect selection for actual load spectrum, environmental exposure, or mounting constraints—not material fatigue. In wind farms, a single failed nacelle fan bearing can trigger cascading thermal faults in generators. In mining conveyors, unaccounted-for shock loads combined with abrasive ingress cause rapid raceway pitting. Most suppliers deliver catalog numbers without validating application parameters—leaving engineers to reconcile discrepancies during commissioning.

Engineered for Your Operating Conditions

This stainless UC205 insert bearing is not selected—it is validated. Our 15+ SKF-certified application engineers perform full-duty cycle analysis: radial and axial load decomposition, vibration spectrum mapping, thermal expansion modeling, and housing deflection simulation against your exact shaft geometry and mounting surface. As an official SKF engineering partner, we apply ISO 281:2021 life calculation methodology with real-world contamination and lubrication factors—not just theoretical C and C₀ values. Every specification reflects field-proven performance under documented operating conditions, backed by ISO 9001 and IATF 16949 certified quality control.

Operating Environment and Performance Demands

In wind power applications, this bearing operates at 15–300 r/min with momentary shock loads up to 2.8× rated C, exposed to salt-laden air (ISO 12944 C5-M) and temperature swings from –25°C to +75°C. In mining vibrating feeders, it endures 5–15 g peak acceleration, continuous dust loading (ISO 11270 Class 4), and zero scheduled maintenance intervals exceeding 18 months. Steel plant cooling pump mounts require resistance to condensate-induced crevice corrosion at 60–90°C ambient, where standard carbon steel housings fail within 6 months. The SSUC205 stainless bearing meets these demands through AISI 440C rolling elements, 1.4122 martensitic stainless housing, and double-contact nitrile seals with integrated dust lips—providing IP65-rated protection without compromising torque efficiency.

Inside the Engineering: What Makes This Bearing Perform

The 14.0 kN dynamic load rating (C) is derived from SKF’s modified life model incorporating κ-factor (lubrication condition) and contamination level eC = 0.6, yielding L10 life > 120,000 hours at 100 r/min under typical wind farm duty. Pressed steel cage design maintains dimensional stability at 12,000 r/min limiting speed while minimizing centrifugal deformation—critical for high-vibration feeders. Double-contact rubber seals (2RS) generate 0.15 Nm drag torque at 1,000 r/min, reducing heat buildup versus metal-shielded alternatives and extending grease life by 40% per SKF Grease Selection Guide SKFBM 1000. Normal clearance (CN) ensures zero preload at 25°C mounting temperature while accommodating 12 μm thermal growth at 90°C housing surface—verified via finite element thermal expansion simulation. Surface hardness of 58–62 HRC on both rings, achieved via vacuum-quenched martensitic transformation, resists brinelling under repeated impact loads common in crusher support frames.

The True Cost of Bearing Failure

A non-planed stoppage in a 2 MW wind turbine generator costs $18,500/hour in lost energy revenue and penalty fees under PPA terms. A counterfeit UC205 bearing with substandard martensite distribution fails after 8,200 hours—just 19% of the L10 life guaranteed by genuine stainless variants. Improper interference fit during installation (±0.005 mm tolerance violation) increases inner ring stress by 320 MPa, accelerating micro-pitting per ISO 281 Annex E. Total cost of ownership (TCO) analysis across 10-year service life shows that paying 12% premium for SKF-compatible stainless UC205 insert bearing reduces maintenance labor cost by 63%, spare parts inventory holding by 41%, and unplanned downtime frequency by 89%—validated in 37 site audits across China, Brazil, and Germany.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing is supplied with SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, Dimensional Inspection Report signed by our QA lead engineer, and original SKF packaging bearing holographic anti-counterfeit label. Batch-level traceability includes heat number, forging date, final grinding date, and grease fill weight. For orders above 500 units, we arrange third-party verification at SKF’s Shanghai Technical Center prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct bearing selection begins with precise application data—not product catalogs. Send us your operational parameters: radial and axial load magnitudes and direction, rotational speed profile (including start-stop cycles), ambient and operating temperature range, housing material and stiffness, mounting space envelope (mm), and existing lubrication method. Within 48 business hours, our engineering team will return a validated selection report including calculated L10 and Lnm life, recommended fit tolerances (per ISO 286-1), seal compatibility assessment, and thermal expansion margin analysis. For projects exceeding $50,000, we supply instrumented test bearings with pre-installation baseline data—reducing procurement risk without delaying your project timeline. Every hour of unplanned downtime erodes margin; your first technical dialogue is the most cost-effective engineering investment you’ll make this quarter.
