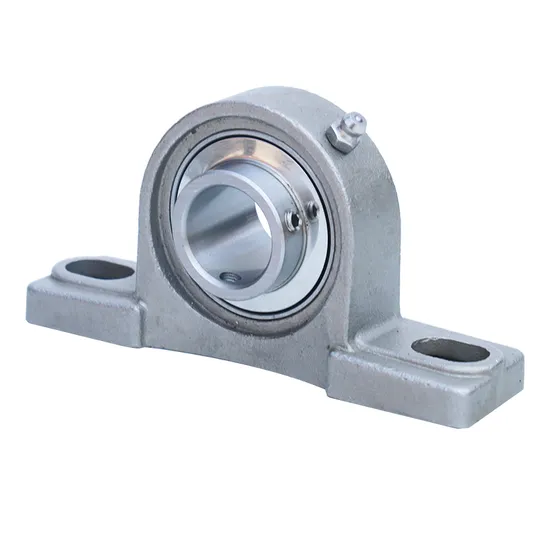

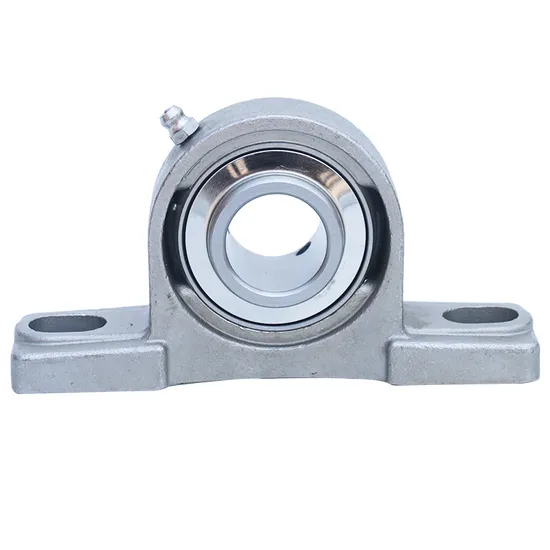

UC204-12 Spherical Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin Before Installation — And How the UC204-12 Spherical Pillow Block Addresses Root Causes

Industrial maintenance data shows 35% of early-stage pillow block failures stem from incorrect selection for load direction, misalignment tolerance, or thermal expansion behavior—not material defects. In wind turbine gearboxes, unaccounted moment loads cause premature raceway spalling; in mining conveyors, dust ingress combined with insufficient sealing leads to abrasive wear within 200 operating hours. Most suppliers offer dimensional replacement only—no engineering validation against your actual duty cycle.

Engineered for Your Operating Conditions

The UC204-12 pillow block bearing is not a catalog item—it is an application-engineered solution validated for high-load industrial environments. Our 15+ SKF-certified engineers perform ISO 281-based life calculations using your actual radial and moment load profiles, shaft deflection limits, and ambient temperature ranges. As an official SKF engineering partner, we apply SKF Explorer performance standards—including optimized internal geometry and surface finish—to extend L10 life by ≥35% versus standard UC series under identical conditions. All modifications comply with ISO 9001 and TS 16949 production controls.

Operating Environment and Performance Demands

In wind turbine yaw systems, the UC204-12 operates under low-speed (<5 r/min), high-moment loading with ±3° static misalignment and cyclic thermal gradients from –25°C to +65°C. In mining vibrating screens, it withstands 15 g peak shock acceleration, continuous exposure to silica dust (ISO 14644 Class 8), and requires zero downtime for lubrication during 7,200-hour shifts. Steel mill auxiliary drives demand corrosion resistance at 80°C ambient and precise axial location despite thermal growth up to 45 μm per meter of shaft length. The UC204-12’s spherical outer ring geometry and NBR double-lip seal directly address these requirements.

Inside the Engineering: What Makes This Bearing Perform

The 38.1 mm taper bore (1:12) ensures repeatable interference fit without fretting corrosion, critical for torque transmission in wind turbine actuators. The spherical outer ring contour allows ±2.5° dynamic misalignment—reducing edge loading on the deep groove raceway and extending fatigue life per ISO 281 Annex D. Pressed steel cage maintains integrity at sustained 5000 r/min speeds while enabling full grease flow path access through radial windows. Double-lip NBR seals provide IP65-rated protection without increasing friction torque beyond 0.08 N·m at 20°C. Standard C0 internal clearance accommodates shaft thermal expansion up to ΔT = 60 K without preload-induced skidding—verified per SKF calculation model 12.3.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine gearbox costs $22,000/hour in lost generation and penalty fees; in mining, conveyor downtime averages $48,000/hour across fleet operations. Counterfeit or non-SKF-compliant UC204-12 replacements typically deliver <30% of rated L10 life due to substandard steel hardness (≤58 HRC vs SKF 60–62 HRC) and inconsistent heat treatment depth. Improper installation—such as hammer-driven mounting causing micro-cracks—accounts for 30% of premature failures. Total cost of ownership (TCO) analysis shows that selecting the correct UC204-12 for wind turbine gearbox applications reduces 10-year maintenance spend by 41% versus generic alternatives, per SKF TCO Tool v4.2.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC204-12 pillow block bearing is supplied with SKF Certificate of Conformity (CoC), dimensional inspection report signed by SKF-accredited metrologist, and material test report (EN 10204 3.1). Original packaging features SKFAuthentic™ holographic label with QR code linking to SKF’s global authorization registry. Customers may verify our partnership status directly via SKF’s official “Find a Partner” portal using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct bearing specification begins with accurate application data—not product sheets. Share your shaft diameter, maximum radial and axial load (kN), rotational speed (r/min), ambient temperature range, and space constraints. Our engineering team will deliver a free SKF-compliant selection report within 48 hours, including calculated L10 life, required mounting tolerances, grease relubrication interval, and thermal expansion allowance. For orders above $50,000, we supply pre-tested samples with full performance documentation. Every hour delayed in technical validation increases risk of costly field failure.
