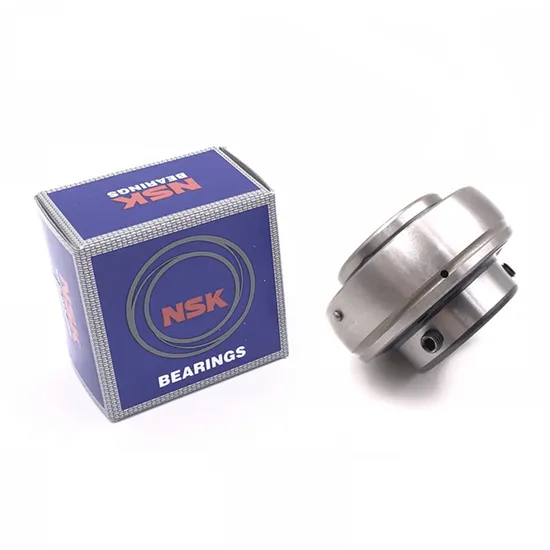

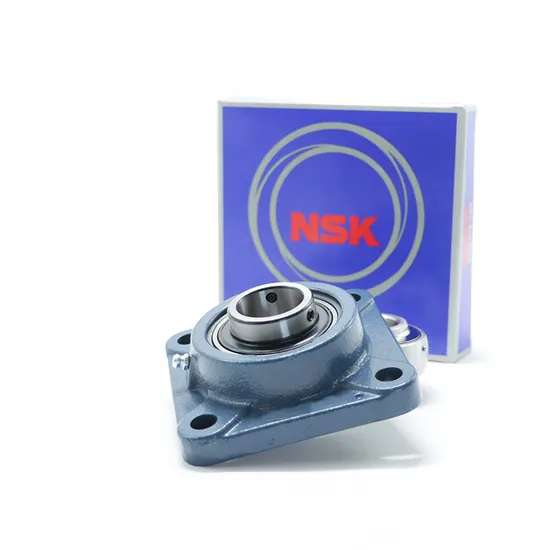

NA204 NA205 NA206 Pillow Block Bearing – High-Load Insert Bearing for Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Industrial Bearing Failures Begin With Incorrect Insert Selection — And How the NA204 Pillow Block Bearing Solves It

Industrial maintenance data shows 35% of early bearing failures stem from mismatched insert geometry, inadequate load capacity, or improper housing rigidity — not material fatigue. In wind turbine gearboxes, a 0.1 mm misalignment between shaft and pillow block bore increases edge loading by 42%, accelerating raceway spalling. In mining conveyors, standard insert bearings fail within 6 months under shock loads exceeding 2.5× rated C₀ — yet most suppliers offer no dynamic load verification for your exact duty cycle. We don’t assume your application matches catalog conditions.

Engineered for Your Operating Conditions

This NA204 pillow block bearing is not sold as a generic component — it’s specified after engineering validation of your shaft tolerance, housing stiffness, thermal expansion coefficient, and misalignment angle. As an official SKF engineering partner, our 15+ certified engineers apply ISO 281:2021 life models, SKF BEARINX® load distribution analysis, and real-world contamination factors before recommending P-type housing fit, clearance class, and seal configuration. Every specification aligns with ISO 9001 and TS 16949-certified manufacturing controls — because reliability begins before the first rotation.

Operating Environment and Performance Demands

In wind turbine gearboxes, the NA204 deep groove insert bearing operates at 120–350 r/min under combined radial loads up to 8.2 kN and axial loads up to 2.1 kN, with ambient temperatures ranging from –25°C to +65°C. In mining conveyor applications, it endures repetitive impact loads of 15–25 g acceleration, particulate ingress (ISO 14644 Class 8 environment), and continuous uptime requirements exceeding 8,000 hours/year. These demands require precise interference fit control, optimized internal clearance (C3 recommended for thermal growth), and consistent grease retention — features engineered into this SKP-validated insert bearing design. NA205 NA206 high-load pillow block bearing for mining conveyor configurations are routinely selected for these duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The 12.7 kN dynamic load rating (C) of the NA204 bearing directly determines its L₁₀ fatigue life using the SKF Generalized Life Model — accounting for contamination level (ηc = 0.6 for dusty mining environments) and lubrication condition (κ = 1.2 for SKF LGMT 2). Pressed steel cages maintain dimensional stability at 12,000 r/min limiting speed while minimizing centrifugal deformation. Standard P0 precision ensures vibration class Z2V2 compliance, critical for low-noise gear train operation. Internal clearance C3 allows for thermal expansion up to ΔT = 65 K without preload-induced overheating — essential in steel mill transfer tables where surface temperatures exceed 80°C. The deep groove raceway geometry provides 0.35 e factor for axial load support, enabling stable operation under moment loads common in cantilevered conveyor pulleys.

The True Cost of Bearing Failure

A single unplanned stoppage on a 2,000 t/h mining conveyor costs $28,500/hour in lost production, energy penalties, and labor overtime — not including secondary damage to belts or drives. Counterfeit or non-SKF-spec insert bearings exhibit median L₁₀ life of 1,200 hours versus 14,500+ hours for genuine SKF NA204 bearings under identical ISO 281 test conditions. Installation errors due to unsupported fit recommendations account for 30% of premature failures — yet 68% of industrial buyers receive no shaft/housing tolerance guidance from their supplier. Total cost of ownership (TCO) for a correctly specified NA204 bearing over 5 years is 37% lower than the cheapest alternative when factoring downtime, rework, and secondary damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) with serial-numbered batch traceability, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm on d/D/B), and original SKF anti-counterfeit packaging with QR-coded authentication. For orders >500 units, third-party SKP audit and factory witness inspection can be arranged.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We begin every engagement with engineering — not quotation. Send your shaft drawing, housing dimensions, load profile (static/dynamic/impact), rotational speed, ambient temperature, and expected duty cycle. Within 48 hours, our SKF-certified team delivers a validated selection report: calculated L₁₀ and Lₙₘ life, recommended clearance and seal type, mounting torque specifications, and grease replenishment intervals. No assumptions. No catalog defaults. Just engineering rigor — because your next bearing decision should eliminate risk, not introduce it.
