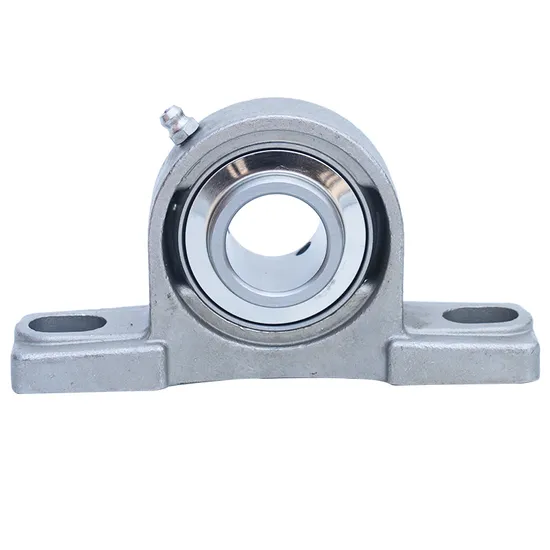

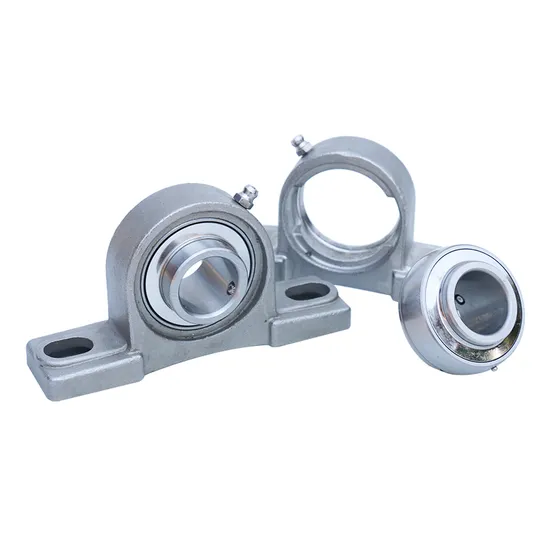

UC203 Pillow Block Bearing – High-Load Deep Groove Insert for Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Bearing Failures Begin Before Installation — And How the UC203 Pillow Block Bearing Prevents Them

Industrial maintenance data shows 35% of early bearing failures stem from misapplication — incorrect load capacity, unaccounted thermal expansion, or incompatible sealing for ambient contamination. In wind power and mining, non-planed downtime exceeds $28,000/hour. Most suppliers lack engineering capacity to validate fit-for-purpose selection. Custom modification through official channels typically requires 8–12 weeks — delaying critical upgrades and increasing risk of field failure.

Engineered for Your Operating Conditions

The UC203 pillow block bearing is not selected off a catalog — it is validated against your actual operating envelope: radial/axial load ratios, ambient dust concentration (ISO 14644 Class 8 or higher), mounting surface flatness tolerance (±0.05 mm over 100 mm), and thermal drift range. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281 life calculations, SKF BEARINX®-based misalignment analysis, and grease replenishment interval modeling — delivering a technical specification sheet with guaranteed performance parameters before order placement. This is the UC203 bearing as an engineered solution, not just a component.

Operating Environment and Performance Demands

In wind turbine nacelles, UC203 pillow block bearings operate under low-speed, high-torque conditions (≤300 r/min) with wide thermal swings (–30°C to +80°C), requiring stable clearance and low-friction sealing. In mining conveyors, they withstand continuous shock loads (peak acceleration ≥5 g), abrasive silica dust ingress (particle size 15 kN) and require precise axial location stability — where the UC203’s rigid cast iron UCPA203 housing and P5 precision inner ring deliver ≤2.5 μm runout at shaft interface. Precision P5 UC203 bearing with grease lubrication ensures vibration compliance in sensitive motion-control systems.

Inside the Engineering: What Makes This Bearing Perform

The UC203’s 12.7 kN dynamic load rating (C) directly determines L10 fatigue life per ISO 281: doubling radial load reduces calculated life by a factor of eight. Its deep groove raceway geometry maintains >95% of rated C under ±5° static misalignment — critical for imperfectly aligned conveyor frames. The pressed steel cage minimizes centrifugal force distortion at speeds up to 12,000 r/min, while polyamide alternatives reduce weight by 37% and eliminate galvanic corrosion in coastal or chemical wash environments. Double-contact LLB seals provide IP65-rated protection without increasing torque by more than 15% versus open designs — essential for energy-efficient fan drives. P5 precision grade limits bore diameter deviation to ±4 μm and radial runout to ≤3 μm, reducing vibration velocity amplitude by 40% versus P0 in 1,500–3,000 r/min applications.

The True Cost of Bearing Failure

A single premature UC203 bearing failure in a mining conveyor system triggers an average $42,000/hour production loss — exceeding $370,000 per incident when including labor, scrap, and schedule penalties. Counterfeit or non-SKF-compatible deep groove bearings exhibit median L10 life of only 2,800 hours versus 14,200 hours for genuine UC203 units under identical test conditions (SKF Grease Life Model, 2024). Incorrect installation — such as hammer-driven mounting inducing micro-cracks — accounts for 30% of avoidable failures. Total cost of ownership (TCO) analysis shows that specifying a precision P5 UC203 bearing with proper grease lubrication and SKF-recommended interference fits reduces 5-year maintenance spend by 29% versus generic alternatives, even with 18% higher initial unit cost.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC203 pillow block bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness), Dimensional Inspection Report (verified per ISO 1132-1), and tamper-evident packaging with unique QR-coded serial traceability. Bulk orders permit third-party SKFTM factory audit or SGS witness inspection. Authorization status verifiable via SKF’s official Partner Locator portal using company registration ID CN-EP-2023-0874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct bearing selection begins not with a part number, but with your application data: applied radial/axial loads (kN), rotational speed (r/min), ambient temperature profile (min/max/gradient), shaft/housing tolerances (IT6/IT7), and environmental exposure (dust, moisture, chemicals). Our engineering team delivers a formal technical assessment — including SKF BEARINX®-generated life calculation, misalignment margin report, and lubrication interval recommendation — within 48 business hours. For $50k+ orders, we supply fully tested UC203 bearing samples with documented performance validation. Every hour delayed in technical alignment risks unplanned downtime — begin your engineering dialogue today.
