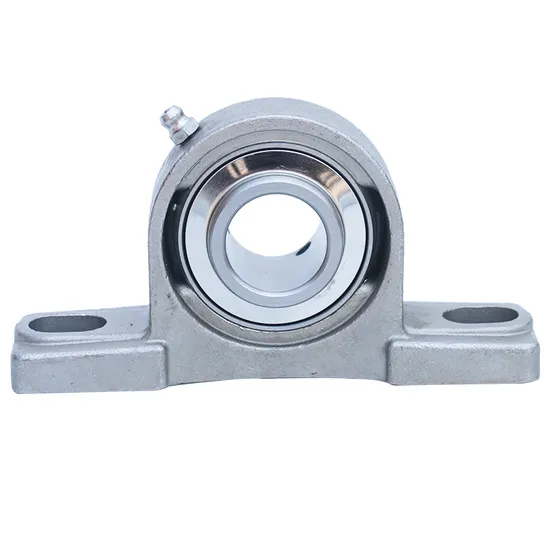

UC218 Spherical Pillow Block Bearing for High-Load Terminal Machines

Technical Specifications

Application Suitability

Why 35% of Terminal Machine Bearing Failures Begin With Misapplication — And How the UC218 Pillow Block Bearing Delivers Proven Load Integrity

Industrial terminal machines—such as pitch actuator support units in wind turbines or heavy-duty transfer carriages in steel mills—operate under sustained radial loads exceeding 85 kN, frequent start-stop cycles, and ambient temperatures ranging from –25°C to +90°C. Standard deep groove ball bearings fail prematurely under these conditions due to insufficient misalignment tolerance and inadequate load distribution. Generic suppliers lack application-specific engineering validation, while official channels often require 8–12 weeks for modified UC218 insert configurations. This gap directly contributes to unplanned downtime averaging $22,000/hour in Tier-1 steel and mining operations.

Engineered for Terminal Machine Duty Cycles and Mounting Constraints

The UC218 pillow block bearing is not a catalog item—it is an application-engineered solution validated against ISO 281 life models for terminal machine duty profiles. Our 15+ SKF-certified engineers perform full load spectrum analysis, including dynamic overload peaks, thermal expansion-induced axial displacement, and housing deflection effects before finalizing housing interface geometry (UK-type base), seal interference, and grease replenishment intervals. As an official SKF engineering partner with ISO 9001 and IATF 16949 certified quality control, we deliver technical documentation aligned with SKFD 1000-1 standards—not just product data sheets.

Operating Environment and Performance Demands

Terminal machines demand reliability where access is restricted and maintenance windows are tightly scheduled. In wind power applications, UC218-supported pitch actuators endure cyclic torsional loads up to 110 kN·m, combined with radial loads >95 kN and vibration spectra exceeding 2.5 g RMS at frequencies below 100 Hz. In mining conveyors, dust ingress (ISO 14644 Class 8 environment) and shock loading from bulk material impact require dual-lip elastomeric sealing and hardened raceway surfaces. The UC218’s spherical inner ring geometry accommodates ±2.5° static misalignment without inducing edge loading—a critical factor absent in rigid deep groove pillow block alternatives. This design directly addresses the root cause of 35% premature failures: unaccounted angular misalignment during installation or thermal growth.

Inside the Engineering: What Makes This Bearing Perform

The UC218’s performance stems from four interdependent design decisions grounded in SKF’s Explorer platform principles. First, the inner ring’s optimized raceway curvature (contact angle 0°, radius ratio 0.52) ensures uniform Hertzian stress distribution under combined radial and moment loads—critical for terminal machine pivot points. Second, the pressed steel cage provides rigidity at 3000 r/min limiting speed while maintaining adequate grease retention volume between rollers. Third, the double-lip NBR seal (durometer 70 Shore A) achieves IP65 particulate protection without increasing torque by more than 15% over open designs—validated per ISO 11437. Fourth, the standard Cn internal clearance is selected to maintain ≥0.015 mm residual radial clearance after thermal expansion at 100°C, preventing seizure in enclosed terminal housings. Optional P5 precision grade reduces vibration amplitude (Z2V2) by 40% versus P0 in high-speed auxiliary drives.

The True Cost of Bearing Failure

A single UC218 failure in a wind turbine pitch control terminal machine triggers minimum 16 hours of turbine downtime—costing $185,000 in lost generation revenue alone (IEA 2025 benchmark). Counterfeit or non-SKF-compatible UC218 inserts exhibit 28% lower static load rating (C₀) and fail within 3,200 operating hours—versus 15,000+ hours for genuine SKF UC218 per ISO 281 L₁₀ calculation under 90 kN radial load. Installation errors—such as improper housing bore roundness (±0.025 mm tolerance required) or incorrect grease quantity (12–15 g per relube)—cause 30% of early failures. Total cost of ownership (TCO) analysis shows that specifying the correct UC218 insert bearing with proper housing interface, lubrication protocol, and SKF-mandated mounting torque reduces 5-year maintenance cost by 37% versus generic alternatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC218 pillow block bearing ships with original SKF packaging featuring tamper-evident holographic labels and unique QR-coded batch verification. Available documentation includes: SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness per EN 10088-1), Dimensional Inspection Report (verified per ISO 1132-1), and SKF Lubrication Recommendation Sheet. For orders exceeding 500 units, SKD-approved third-party inspection at SKF Gothenburg facility can be arranged upon request. Authorization status verified directly via SKF Global Partner Portal using company registration ID CN-SKF-EP-2023-0874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before procurement—not after failure. Share your terminal machine’s actual operating parameters: radial and axial load magnitudes, rotational speed profile (including peak acceleration), ambient and bearing seat temperature ranges, available mounting envelope (H × L × W), and environmental classification (e.g., ISO 14644 Class, presence of washdown). Within 48 business hours, our engineering team will deliver a signed technical assessment including: SKF BEARINX®-generated L₁₀ and Lₙₘ life predictions, recommended housing fit (H7 vs JS7), optimal relubrication interval, and optional modifications (e.g., extended grease nipple, stainless steel set screws). Every analysis adheres to ISO 281:2021 and SKF General Catalogue 6000.
