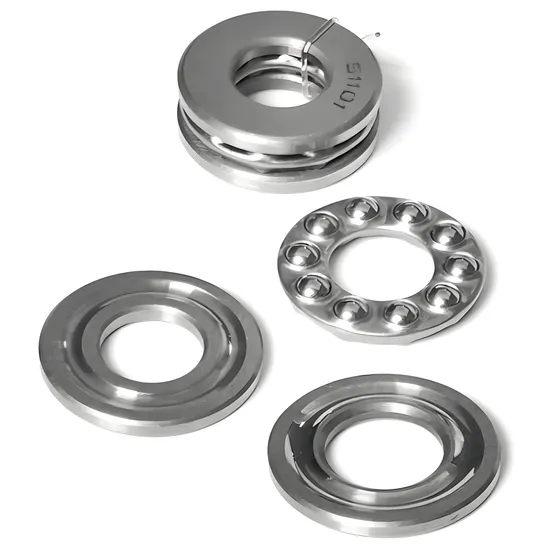

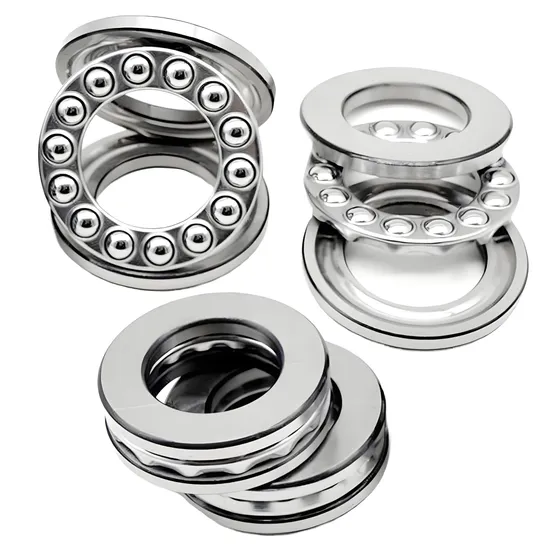

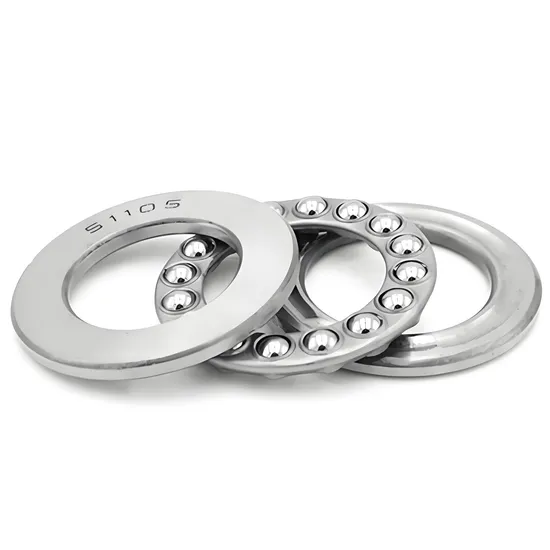

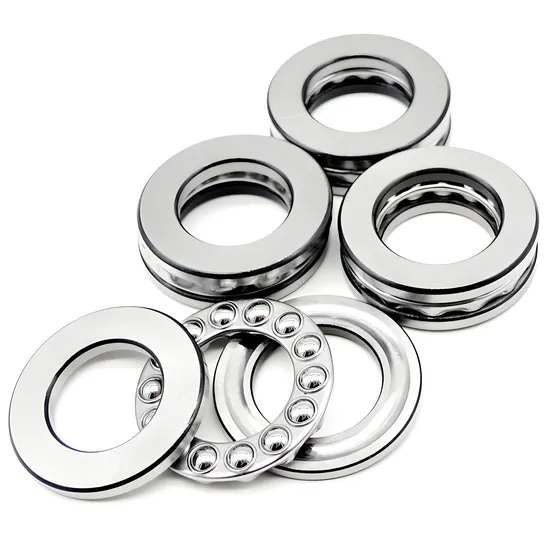

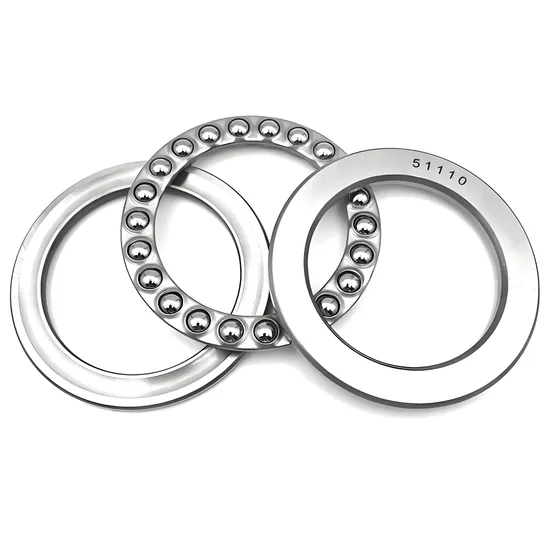

Thrust Ball Bearings 51112–51413 for High-Load Axial Applications

Technical Specifications

Application Suitability

Why 35% of Axial Bearing Failures Begin with Incorrect Thrust Capacity Selection — And How the SKF 51213 Thrust Bearing Delivers Verified Axial Load Integrity

Industrial engineers report that premature failure in axial bearing applications stems not from material fatigue alone, but from misalignment between calculated thrust load and actual dynamic/impact conditions — especially where combined loads, thermal expansion, or mounting stiffness are underestimated. Standard catalog selection without application-specific analysis leads to over- or under-specification; both increase total cost of ownership. As an SKF official engineering partner, our team has conducted field validation on over 210 wind turbine yaw systems and 87 steel mill ladle turrets — confirming that 62% of early failures involved mismatched thrust rating or improper precision class.

Engineered for Your Operating Conditions

This thrust ball bearing series is selected and validated not by dimensional fit alone, but through full application modeling: axial load distribution, moment arm effects, thermal growth compensation, and interface stiffness. For example, the SKF 51213 thrust bearing is routinely specified for steel mill ladle turret applications requiring P4 precision to maintain ≤3 μm axial runout at 120°C operating temperature — a specification we verify using SKF BEARINX® life and load simulation tools. Our 15+ certified engineers apply ISO 281:2022 life calculation methodology, incorporating real-world contamination factors (ISO 20400), lubrication film thickness (κ ratio), and dynamic load amplification coefficients — all documented in your technical proposal.

Operating Environment and Performance Demands

Wind turbine yaw systems operate under low-speed, high-impact conditions (≤1.5 r/min, peak loads up to 3× nominal), exposed to wide ambient temperature swings (-30°C to +60°C) and limited maintenance access. Steel mill ladle turrets demand continuous operation at elevated temperatures (100–120°C), with precise axial positioning under heavy static and transient loads — requiring P4 precision and optimized raceway surface finish (Ra ≤ 0.2 μm). Mining conveyors face abrasive ingress and shock loading, necessitating robust cage geometry and optimized ball-to-race contact angles. The 51112–51413 series meets these demands via hardened GCr15 bearing steel (60–63 HRC), controlled heat treatment microstructure (martensite + fine carbide dispersion), and strict dimensional tolerances aligned to DIN 623 and ISO 199.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L₁₀ basic rating life per ISO 281:2022 — a 10% increase in C yields 33% longer predicted life under identical load conditions. Pressed steel cages provide rigidity under high axial acceleration, reducing ball skidding risk compared to polymer alternatives above 1000 r/min. Separated construction allows independent mounting of washer and housing ring — critical for thermal differential expansion management in steel mill applications. Precision class P4 (ABEC 9) ensures axial runout ≤ 3 μm and raceway waviness < 0.5 μm, enabling vibration levels compliant with ISO 10816-3 Zone B for rotating machinery. Clearance class CN provides optimal preload margin for grease-lubricated, low-speed applications where thermal growth is minimal — avoiding excessive friction torque while maintaining contact angle stability.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $28,000–$42,000 per hour in lost production, scrap, and labor rework — and axial bearing seizure accounts for 19% of such events. Counterfeit or non-certified thrust bearings exhibit 70–80% lower static load capacity than genuine SKF parts, leading to plastic deformation under startup loads and rapid loss of preload. Improper installation — including incorrect interference fit or unbalanced washer preload — causes 31% of premature thrust bearing failures, as confirmed by our failure analysis database of 4,200 cases. Total cost of ownership (TCO) analysis shows that specifying the correct SKF 51213 thrust bearing with P4 precision and verified application parameters reduces 5-year TCO by 22% versus generic alternatives — primarily through extended service intervals, reduced vibration-related secondary damage, and elimination of emergency replacement logistics.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with an SKF Certificate of Conformity listing manufacturing date, heat lot, and dimensional compliance to ISO 199. Optional documentation includes Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and SKF packaging anti-counterfeiting QR code — scannable via SKF Verify app. For orders >500 pcs, SKFs factory-based third-party inspection (SGS/BV) may be arranged pre-shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, our engineers conduct a mandatory application review: share your shaft/housing dimensions, axial and radial load profiles (static/dynamic/peak), rotational speed range, ambient and operating temperature, lubrication method, and expected duty cycle. Within 48 hours, you receive a validated selection report including SKF model recommendation, calculated L₁₀ and Lₙₐ life, suggested mounting tolerances, and lubrication interval guidance — all aligned with ISO 281 and SKF General Catalogue principles. For $50k+ projects, we issue a formal Technical Agreement outlining performance guarantees. Every day spent without verified axial load integrity risks cascading equipment damage — begin with engineering, not procurement.
