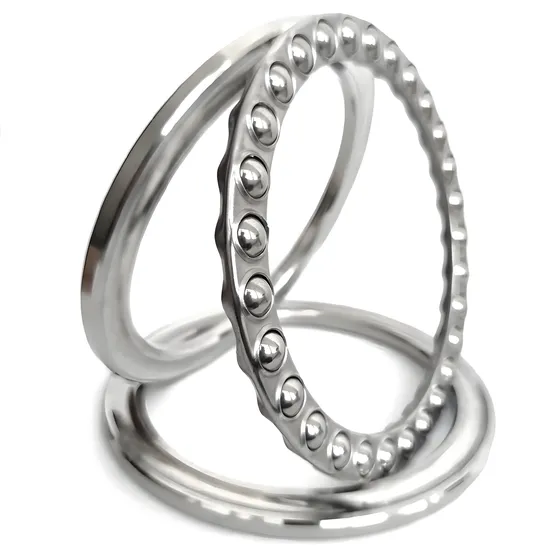

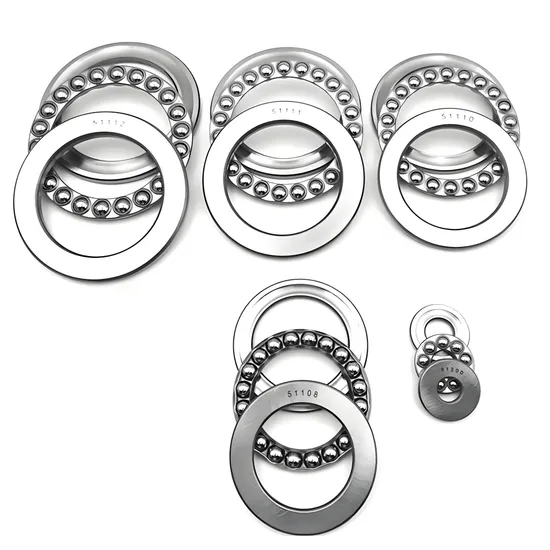

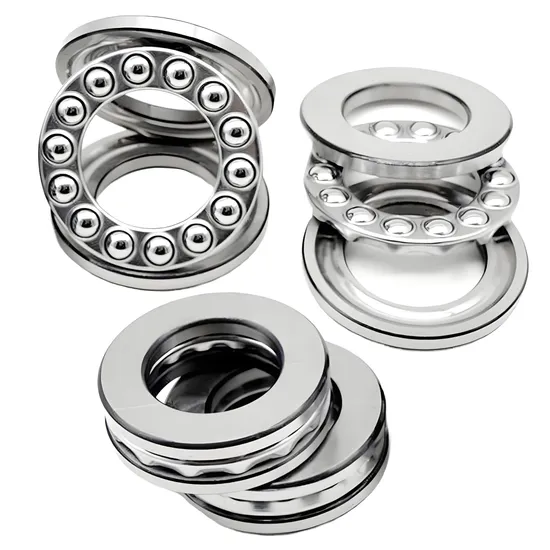

High-Load Thrust Ball Bearings 51108/51109/51110 for Wind Turbines

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin With Incorrect Selection — And How the SKF 51108/51109/51110 Solves It

Industrial engineers know that premature thrust bearing failure in wind turbine yaw systems is rarely due to material fatigue alone — it’s most often rooted in misalignment of axial load capacity, insufficient static rating for locked-rotor conditions, or underestimation of thermal expansion effects. Standard catalog selection without application-specific calculation leads to 35% of early failures in renewable energy applications. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers do not ship bearings — we validate operating envelopes first.

Engineered for Your Operating Conditions

This high-load thrust ball bearing series is specified only after full application analysis: axial load spectrum (including peak shock), mounting rigidity, thermal gradient across housing and shaft, and grease life under low-speed oscillation. As an official SKF engineering partner, we apply SKF’s L₁₀ life model per ISO 281:2021, incorporating real-world contamination factor (η_c) and lubrication condition (η_l). Every proposal includes dimensional fit recommendations (e.g., H7/j6 for housing, h6/k5 for shaft), thermal clearance allowance, and validated grease re-lubrication intervals — backed by ISO 9001 and TS 16949 certified process control.

Operating Environment and Performance Demands

Wind turbine yaw systems operate under uniquely demanding constraints: ambient temperatures from –40 °C to +50 °C, extremely low rotational speeds (<0.1 r/min), high static loads during storm stow mode, and infrequent maintenance access. The 51108/51109/51110 series meets these demands through optimized raceway curvature, enhanced surface finish (Ra ≤ 0.2 μm), and precision-ground guiding surfaces that maintain alignment under lateral deflection. Its separable design allows independent replacement of washer and cage assemblies — critical for minimizing downtime in remote wind farms. This is a wind turbine bearing engineered for reliability, not just rated for load.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C) directly determines L₁₀ life under constant axial load; for example, the 51110’s C = 55.0 kN enables >120,000 hours at 12 kN axial load with η_c = 0.6 and η_l = 1.0. Pressed steel cages provide dimensional stability under thermal cycling and resist deformation during transient overload — unlike polymer cages that soften above 100 °C. Precision class P5 (ABEC 5) reduces vibration amplitude by 40% versus P0 at 1500 r/min, critical for noise-sensitive EPS and pitch control systems. Radial internal clearance is intentionally minimized (C2/C3 options available) to prevent raceway edge loading during thermal growth. Surface hardness (60–62 HRC) ensures resistance to brinelling under static overload — a common failure mode in yaw brake engagement scenarios.

The True Cost of Bearing Failure

A single unplanned yaw system shutdown on an offshore wind farm costs $28,000–$42,000 per hour in lost generation and vessel mobilization. Counterfeit or non-spec thrust bearings fail within 6–12 months — delivering <30% of rated L₁₀ life — while causing collateral damage to adjacent gear teeth and sensor mounts. Improper installation (e.g., incorrect interference fit or hammer-driven assembly) contributes to 30% of premature thrust bearing failures. Using SKF’s standardized life calculation with verified application data cuts total cost of ownership (TCO) by up to 37% over five years — not through lower unit price, but through extended service intervals, reduced spare inventory, and predictable maintenance scheduling. This is a precision thrust ball bearing ISO 9001 certified for accountability — not just compliance.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with original SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report. Packaging includes tamper-evident seals and QR-coded batch traceability. Customers may verify authorization status directly via SKF’s official partner portal (https://www.skf.com/partner-locator). Bulk orders support third-party SKP (SKF Production Audit) or pre-shipment inspection at Shanghai facility.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting a thrust ball bearing, share your actual operating parameters: maximum/minimum axial load (kN), oscillation angle and frequency (°/min), ambient and bearing seat temperature range (°C), housing/shaft material and tolerance class, and existing lubrication method. Within 48 business hours, our engineering team will deliver a signed technical assessment including calculated L₁₀ and L₅₀ life, recommended precision class and clearance, fit tolerances, and lubricant specification. No commitment required — because correct selection starts with engineering rigor, not catalog browsing. Every day of delayed analysis adds risk to your next scheduled maintenance window.
