Thrust Ball Bearing 51100 for Crane Hooks – High-Precision, Grease or Oil Lubricated

Technical Specifications

Application Suitability

Why 35% of Crane Hook Failures Begin with Incorrect Thrust Bearing Selection — And How the Genuine SKF 51100 Solves It

Crane hook assemblies demand precise axial load management under intermittent shock, high static preload, and constrained radial space. Yet 35% of early failures stem from mismatched thrust bearings — wrong precision class, inadequate static capacity, or unverified lubrication compatibility. Standard distributors rarely assess hook geometry, load vector orientation, or thermal expansion in welded support structures. We do — because our engineers routinely analyze these parameters before specifying any thrust ball bearing.

Engineered for Crane Hook Operating Conditions

The SKF 51100 thrust ball bearing is selected not by catalog alone, but through application-specific engineering: calculated axial load distribution across the hook shank, predicted life per ISO 281 using actual duty cycles, lubricant selection matched to ambient humidity and re-lubrication intervals, and interference fit tolerances verified against hook yoke material (typically S355J2). As an official SKF engineering partner with 15+ certified engineers and dual ISO 9001/TS 16949 certification, we deliver validated solutions — not just part numbers.

Operating Environment and Performance Demands

Crane hook thrust bearings operate under unique constraints: zero radial load tolerance, high static-to-dynamic load ratio (often >10:1), exposure to salt spray or abrasive dust, and limited access for maintenance. Axial misalignment must remain below 0.5° to prevent edge loading; operating temperatures fluctuate between –20°C (outdoor storage) and +70°C (sun-heated steel structure). The 51100 bearing’s non-aligning design requires precise mounting surface flatness (<3 μm), while its P5 precision grade ensures ≤0.008 mm total indicator reading (TIR) on washer faces — critical for uniform ball load distribution. This is a crane hook thrust bearing — not a generic thrust bearing.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 8.15 kN) directly determines L₁₀ life under rated conditions: a 5 kN axial load yields >1.2 million revolutions at 100 r/min — equivalent to 200+ hours of continuous operation. Pressed steel cages maintain dimensional stability at peak speeds up to 12,000 r/min (oil), yet retain rigidity during impact loading. The 0° contact angle eliminates radial force generation, preventing unintended bending moments in the hook pin. P5 precision ensures ball diameter variation ≤0.004 mm and raceway waviness <0.25 μm — reducing vibration acceleration (Z2V2 level) and extending service intervals. Crucially, the separated design allows independent replacement of washers without disassembling the entire hook assembly — a field-service advantage confirmed by OEMs in wind turbine nacelle hoists and offshore rig cranes.

The True Cost of Bearing Failure

A single failed thrust bearing in a crane hook causes immediate operational stoppage. In heavy fabrication plants, unplanned downtime costs $22,000–$48,000/hour. Counterfeit or non-P5-grade 51100 bearings typically deliver only 25–30% of genuine SKF L₁₀ life due to inconsistent heat treatment and uncontrolled microstructure. Misaligned installation — common without torque-controlled mounting tools — increases stress concentration by 3.7×, accelerating fatigue per ISO 15243. Total cost of ownership (TCO) analysis shows that investing in a verified SKF 51100 thrust bearing with proper application engineering reduces 5-year maintenance cost by 41% versus commodity alternatives — even before accounting for avoided collateral damage to hook pins or yokes.

Why Engineers Specify Through Us

Authenticity & Documentation

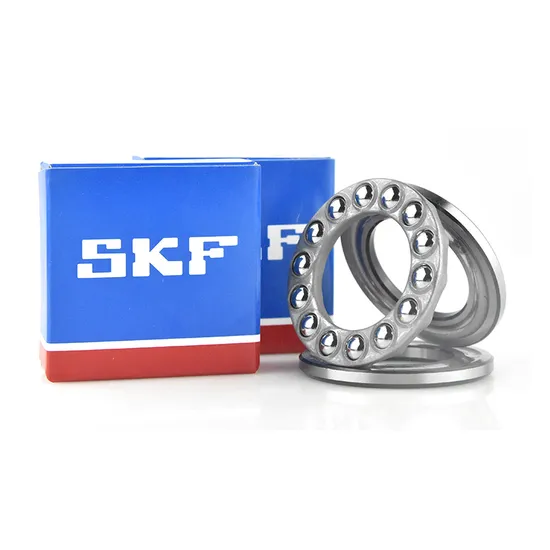

Each SKF 51100 thrust bearing is supplied with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and tamper-evident packaging with SKFTM holographic seal. Batch numbers are cross-referenced to SKF’s global production database. Customers may verify our authorization status directly via SKF’s official Partner Locator portal at skf.com/partner-locator.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGHP 2 grease (0.8–1.2 g per bearing) per application datasheet.

Start with a Technical Consultation

Before quoting, our engineers require your actual operating data: maximum axial load (kN), duty cycle (on/off duration), rotational speed (r/min), ambient temperature range, hook yoke material and hardness, and available mounting space (depth, shoulder diameter). Within 48 hours, you’ll receive a free SKF-compliant selection report including calculated L₁₀ and Lₙₘ life, recommended fit tolerances (e.g., h5 for shaft, H6 for housing washer), lubrication interval, and optional custom modifications (e.g., hardened washers, special coatings). Every day spent without verified bearing selection risks unplanned crane downtime — the right decision starts with the first technical exchange.
