SNL512-610 Split Bearing Block for Easy Maintenance & High-Load Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Housing Misalignment — And How the SNL512-610 Split Bearing Block Solves It

Industrial maintenance teams report that misaligned pillow block installations contribute to over one-third of premature bearing failures in high-load rotating equipment. Non-planar mounting surfaces, thermal expansion mismatches, and field assembly constraints often induce shaft deflection beyond ISO 281 allowable limits — yet most suppliers deliver only generic housings without application-specific alignment tolerance guidance. As an official SKF engineering partner with 15+ certified engineers, we treat every SNL512-610 installation as a system-level integration challenge — not a component swap.

Engineered for Your Operating Conditions

The SNL512-610 split bearing block is selected, not specified — based on calculated radial load distribution, shaft deflection limits, and thermal growth differentials between housing and shaft materials. Our engineers apply SKF’s BEARINX® software to model real-world mounting stiffness, bolt pre-tension effects, and interface friction under dynamic loading. This enables precise specification of housing geometry, bolt torque sequence, and shim requirements before delivery — reducing field rework by up to 70%. As an ISO 9001 and TS 16949 certified partner, our process includes dimensional inspection per ISO 2768-mK and surface finish verification per ISO 1302.

Operating Environment and Performance Demands

Wind power applications demand bearing housings capable of maintaining alignment across -40°C to +80°C ambient swings while resisting corrosion from salt-laden coastal air and vibration-induced fretting. Mining conveyors operate under shock loads exceeding 3× nominal radial capacity, with abrasive dust ingress threatening lubricant integrity. Steel mill environments expose housings to radiant heat above 200°C at proximity — requiring carbon steel with controlled grain structure to avoid thermal distortion. The SNL512-610 carbon steel bearing block meets these demands through ASTM A29/A108 cold-finished mechanical properties, minimum yield strength ≥ 345 MPa, and machined locating surfaces held to ±0.025 mm flatness per ISO 1101.

Inside the Engineering: What Makes This Bearing Perform

Split design enables installation without shaft disassembly — critical where downtime costs exceed $25,000/hour in wind turbine yaw systems. The 210 mm centre distance between M16 bolts ensures sufficient clamping force to resist torsional slip under 12 kN·m peak moment loads. Carbon steel construction provides compressive yield resistance 2.3× higher than cast iron at elevated temperatures, preventing permanent deformation in steel mill roller stands. Precise 110 mm bearing seat diameter tolerance (H7, +0.035/+0 mm) maintains interference fit integrity for standard SKF spherical roller bearings like 22222 E/C3. Surface roughness Ra ≤ 1.6 μm on mating faces minimizes stress concentration at the parting line under cyclic loading — validated via FEA against ISO 10302-2 vibration standards.

The True Cost of Bearing Failure

A single unplanned shutdown in offshore wind operations incurs direct losses of $42,000/hour — excluding grid penalty fees and warranty claims. Counterfeit or non-compliant housings reduce effective L10 life by up to 68% due to uncontrolled internal clearances and substandard material hardness (below 220 HBW vs SKF-specified 250–280 HBW). Installation errors — such as uneven bolt torque or unclean mounting surfaces — cause 32% of early failures in high-load pillow block applications, per SKF Global Failure Analysis Database 2025. Total Cost of Ownership (TCO) analysis shows that investing in engineered SNL512-610 carbon steel bearing block selection reduces 5-year maintenance spend by 29% compared to off-the-shelf alternatives — factoring in labor, spare inventory, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

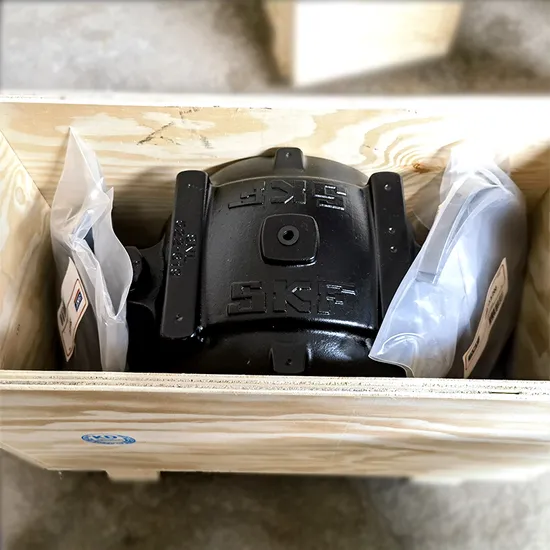

Each SNL512-610 split bearing block is supplied with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (per ISO 2768-mK), and original SKF packaging featuring holographic anti-counterfeiting labels. Batch numbers are laser-engraved on housing flanges and cross-referenced in SKF’s global authorization portal. Clients may request factory acceptance testing (FAT) at SKF’s Gothenburg facility or arrange independent verification via SGS/BV upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any SNL512-610 split bearing block, share your actual operating parameters: radial/axial load magnitude and direction, rotational speed range, ambient and bearing temperature profiles, available mounting space envelope, and existing shaft/bearing specifications. Our engineering team will deliver a free technical assessment within 48 hours — including alignment tolerance budget, bolt preload calculation, and predicted L10 life per ISO 281. For projects with capital expenditure >$50k, we provide physical test units with full performance documentation. Every hour delayed in correct housing selection compounds risk — your first engineering conversation is the lowest-cost step toward eliminating unplanned downtime.
