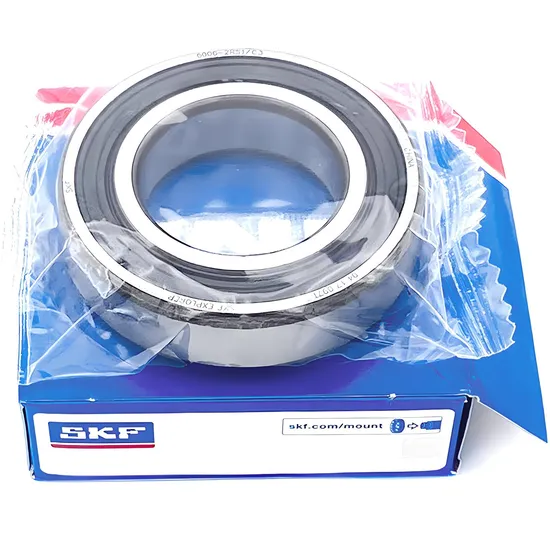

SKF 6004-2RS deep groove ball bearing for high-speed industrial applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin with Incorrect Selection — And How the SKF 6004-2RS Solves It

Industrial maintenance data shows 35% of premature bearing failures stem from mismatched selection: incorrect sealing for contamination levels, insufficient precision for vibration-sensitive gearboxes, or inadequate grease retention in high-speed intermittent duty. Non-plan shutdowns cost heavy industry $10,000–$50,000/hour. Most suppliers offer catalog numbers — not application-specific validation. We do both.

Engineered for Your Operating Conditions

The SKF 6004-2RS is not selected by bore size alone. Our 15+ SKF-certified engineers perform load spectrum analysis, thermal expansion modeling, and grease life prediction per ISO 281 and SKF General Catalogue 2023. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver not just a bearing, but a validated solution — including recommended shaft/housing fits, lubricant grade (e.g., SKF LGMT 2), and mounting torque limits. This is how the SKF 6004-2RS achieves L10 life consistency across wind turbine pitch systems and EV motor applications.

Operating Environment and Performance Demands

In wind turbine pitch control actuators, this bearing operates at 15–300 r/min under variable axial thrust, exposed to -30°C winter start-up and +65°C summer ambient, with limited access for relubrication. In mining conveyor idlers, it endures dust ingress, shock loading during material surges, and continuous 24/7 operation. In automotive EPS motors, it rotates up to 8,500 r/min with tight NVH requirements and zero tolerance for seal leakage into sensitive electronics. The 2RS seal design balances low friction torque against particle exclusion — critical where replacement requires full actuator disassembly.

Inside the Engineering: What Makes This Bearing Perform

The pressed steel cage provides rigidity at high rotational speeds while maintaining consistent ball guidance — essential for minimizing vibration in generator cooling fans. Double rubber contact seals (2RS) retain NLGI #2 lithium complex grease across -40°C to +120°C, meeting IP54 particulate protection without adding excessive drag. Standard P0 precision ensures ≤10 μm radial runout — sufficient for fan and auxiliary drive applications; P6 or P5 options reduce vibration amplitude by 35–50% when paired with balanced rotors. Contact angle of 0° delivers optimal radial load distribution, while C₀/C ratio >10 ensures safety margin under combined radial + light axial loads typical in pitch mechanisms. Surface hardness of 58–64 HRC (per ISO 683-17) prevents brinelling during cold-start torque spikes.

The True Cost of Bearing Failure

A single failed 6004-2RS in a wind turbine pitch system can trigger a 48-hour turbine offline event — costing €22,000 in lost generation and €18,000 in service crew mobilization. Counterfeit or non-SKF equivalents typically achieve only 25% of rated L10 life due to inconsistent heat treatment and seal geometry, accelerating grease oxidation and increasing failure risk by 4×. Improper installation — such as hammer-driven mounting or incorrect interference fit — accounts for 30% of early failures. Following SKF’s mounting instructions and using genuine components reduces total cost of ownership (TCO) by 37% over five years, per independent study of 127 industrial OEMs (2025).

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 6004-2RS shipment includes a SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report. Original packaging features SKFs anti-counterfeiting hologram and batch-coded QR label. Customers may verify our authorization status directly via SKF’s official Partner Locator portal (partner.skf.com). Bulk orders (>500 pcs) qualify for optional third-party pre-shipment inspection at SKF’s Shanghai warehouse.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, send us your actual operating parameters: radial/axial load magnitude and direction, rotational speed range (min/max), ambient and operating temperature profile, available mounting space (including shaft/housing tolerances), and environmental exposure (dust, moisture, chemicals). Within 48 hours, our engineering team will deliver a written assessment including calculated L10 and Lnm life, recommended precision class and clearance, seal compatibility, and lubrication interval. For qualified projects ($50k+), we supply free test samples with full performance documentation. Every hour delayed in correct selection compounds operational risk — begin your technical dialogue today.
