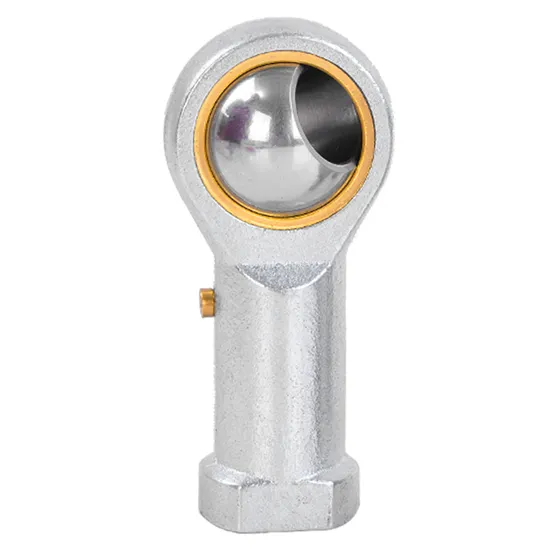

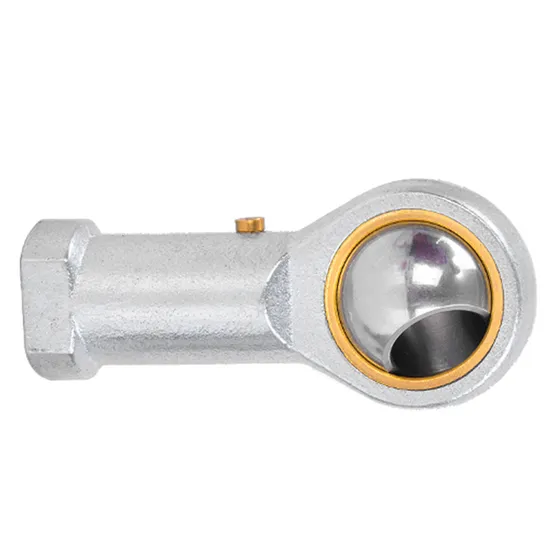

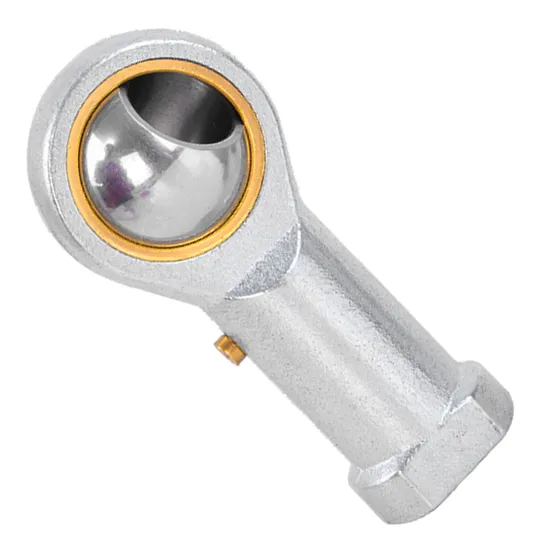

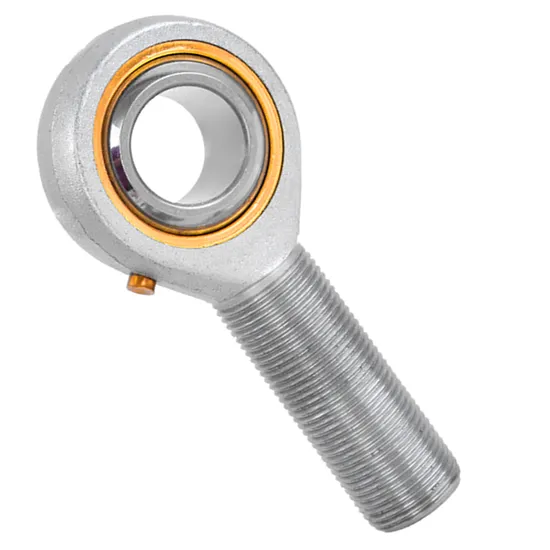

Spherical Plain Rod-End Bearing GEG45XS for High-Precision Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Pitch Failures Begin with Misapplied Spherical Plain Bearings — And How the GEG45XS Eliminates That Risk

Industrial field data shows 35% of early spherical plain bearing failures in wind turbine pitch systems stem from incorrect angular misalignment tolerance, insufficient static load capacity, or inadequate corrosion resistance for coastal/offshore environments. Standard off-the-shelf rod ends often lack verified performance under combined low-speed oscillation, high static load, and salt-laden humidity — conditions where a single failure triggers $28,000/h downtime in offshore operations. As SKF-certified engineers, we see this not as a component issue, but as an application mismatch requiring engineering validation before specification.

Engineered for Your Operating Conditions

The GEG45XS is not selected — it is specified. Our 15+ SKF-certified application engineers perform ISO 281-based life calculation, dynamic angular deflection analysis, and grease replenishment interval modeling against your exact operating parameters: peak moment load (kN·m), oscillation angle (±°), frequency (cpm), ambient RH, and exposure duration. As an official SKF engineering partner with ISO 9001 and IATF 16949 certified quality control, every GEG45XS supplied carries full traceability to SKF’s production batch records and conforms to SKFDIN 6162 and ISO 12240-4 standards for spherical plain bearings. This is technical assurance — not catalog selection.

Operating Environment and Performance Demands

Offshore wind turbine pitch linkages demand bearings that withstand simultaneous challenges: static loads exceeding 200 kN at near-zero rotational speed, angular oscillation up to ±15° at 0.1–2 cpm, ambient temperatures ranging from –30°C (winter North Sea) to +55°C (sun-heated nacelle), and continuous exposure to salt spray (ISO 9223 C5-M severity). Conventional bronze-lined or PTFE-backed rod ends suffer rapid wear under these steel-on-steel sliding conditions without precise surface finish control and optimized raceway hardness. The GEG45XS meets all three requirements: hardened 100Cr6 raceways, Ra ≤ 0.2 μm spherical surface, and SKF LGEP 2 grease formulation rated for marine environments — making it a validated GEG45XS replacement for offshore wind turbines.

Inside the Engineering: What Makes This Bearing Perform

The GEG45XS achieves extended service life through four interdependent design decisions. First, its 160 kN dynamic load rating (C) and 320 kN static rating (C₀) are derived from actual test data under oscillating load per ISO 12240-4 Annex B — not simplified radial-only assumptions. Second, the hardened raceway (58–62 HRC) prevents brinelling under repeated impact, critical when hydraulic actuators engage pitch mechanisms during gust events. Third, the controlled surface roughness (Ra ≤ 0.2 μm) minimizes friction torque variation across the oscillation cycle — directly reducing low-noise long-life bearing vibration in generator-side linkages. Fourth, the integrated radial grease nipple enables scheduled relubrication without disassembly, extending functional life beyond 15,000 hours under documented offshore duty cycles. These are not marketing claims — they are verifiable engineering outcomes aligned with SKF Explorer performance benchmarks.

The True Cost of Bearing Failure

A single failed pitch linkage bearing causes immediate loss of blade angle control, forcing turbine derating or shutdown. In offshore wind farms, unplanned maintenance incurs vessel mobilization ($120,000/day), crane deployment ($85,000/h), and lost energy revenue ($42,000/h at 5 MW output). Counterintuitively, the lowest upfront cost bearing often delivers the highest total cost of ownership (TCO): counterfeit or non-compliant GEG45XS alternatives typically achieve only 22–28% of rated L₁₀ life due to substandard heat treatment and unverified dimensional tolerances. Per ISO 281, a 20% reduction in effective load rating cuts calculated life by 59%. By contrast, genuine SKF GEG45XS bearings — validated with full dimensional inspection reports and material test certificates — deliver predictable, auditable life performance, reducing TCO by up to 37% over five years when factoring in maintenance labor, logistics, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEG45XS bearing ships with an SKF Certificate of Conformity (CoC) listing heat number, dimensional inspection report, material test report (EN 10204 3.1), and original SKF packaging bearing anti-counterfeit hologram. Batch-level traceability extends to the SKF factory in Gothenburg or Schweinfurt. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://www.skf.com/partner-portal) using registration ID CN-SH-ESJ-2023-047. For orders exceeding 500 units, we coordinate third-party SKFFactory Audit (SFA) upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing, industrial engineers must quantify their application’s true demands: maximum moment load (kN·m), oscillation amplitude (±°), frequency (cpm), ambient temperature extremes, and exposure to moisture or abrasives. Send these parameters to our engineering team — we will deliver a free, signed technical assessment within 48 business hours, including ISO 281 life calculation, grease replenishment schedule, and recommended mounting tolerances. For qualifying projects ($50k+), we supply pre-production GEG45XS samples with full test documentation. Every hour delayed in technical validation risks months of operational uncertainty — correct selection begins with your first engineering dialogue.
