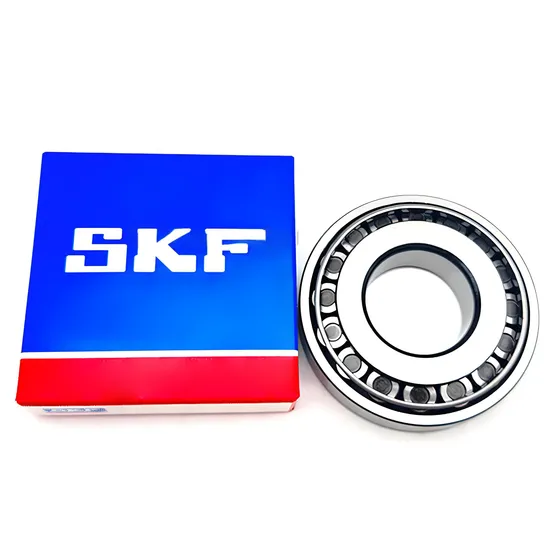

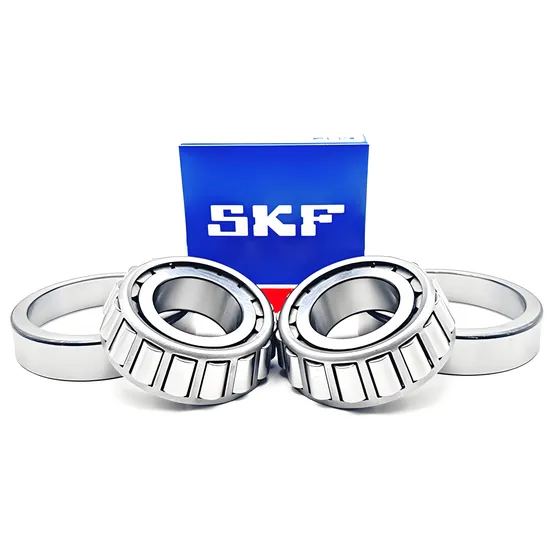

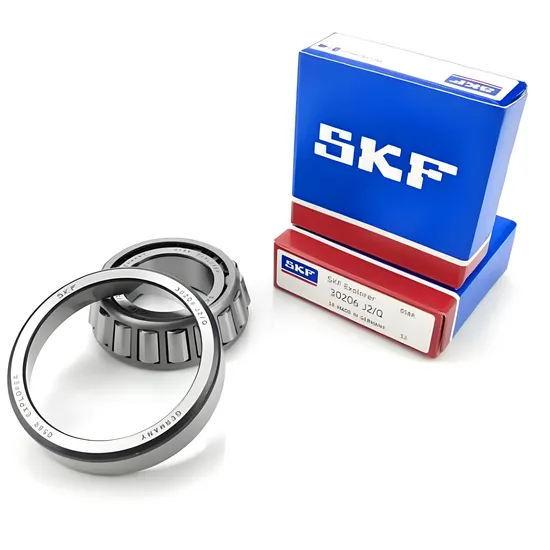

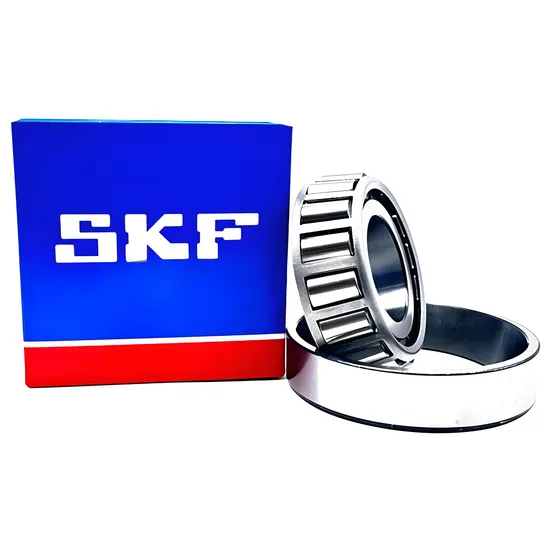

SKF tapered roller bearings 32210–32217 for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of Tapered Roller Bearing Failures Begin with Incorrect Selection — And How the SKF 32212 Solves It

Industrial maintenance data shows 35% of premature tapered roller bearing failures stem from mismatched geometry, clearance, or precision class—not material defects. In wind turbine yaw systems, a C3 clearance error under thermal expansion can induce axial preload >15 kN, accelerating fatigue by 4×. In mining conveyors, using standard P0 instead of P5 grade increases vibration amplitude beyond ISO 10816-3 Class D limits at 300 r/min. We see this daily: engineers specifying “just a 32212” without verifying load ratio, misalignment tolerance, or cage thermal capacity.

Engineered for Your Operating Conditions

The SKF 32212 is not selected—it’s validated. Our 15+ certified SKF engineers perform ISO/TS 16949-compliant application analysis: calculating equivalent dynamic load (P) using actual radial + axial components, verifying L₁₀ life against your duty cycle (e.g., 20,000 h at 1200 r/min, 18 kN radial, 6 kN axial), recommending optimal clearance (C3 for >60 °C ambient), and specifying grease volume and relubrication intervals per SKF BEV 1.0. As an official SKF engineering partner, we access proprietary design tools unavailable to distributors—ensuring every specification meets both SKF Explorer performance standards and your machine’s mechanical envelope.

Operating Environment and Performance Demands

Wind turbine yaw drives operate at ≤3 r/min but endure moment loads >500 kNm and thermal cycling from −30 °C to +70 °C. Standard tapered rollers cannot maintain contact geometry under such combined misalignment and temperature drift—requiring optimized raceway curvature and controlled clearance. Mining crusher shafts face repetitive shock loads (≥3× static rating) and silica-laden air; here, pressed steel cages resist deformation better than polymer alternatives, while surface finish Ra ≤0.2 μm minimizes abrasive wear initiation. Steel mill continuous caster guides demand ≤5 μm runout at 100 r/min under 45 kN radial load—only P5-grade 32212 bearings meet ISO 281 fatigue life targets with ≤0.5 dB vibration margin.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 122 kN for 32212) directly determines L₁₀ life via L₁₀ = (C/P)³ × 10⁶ revolutions—where P includes both radial and axial components weighted by ISO 281:2021 factors. The pressed steel cage maintains dimensional stability at 120 °C, unlike polyamide which softens above 100 °C and risks roller skew. Clearance class C3 increases internal radial play by 15–25 μm versus CN, accommodating thermal growth in long shafts without inducing destructive preload. Precision class P5 reduces bore diameter variation to ±5 μm (vs ±15 μm for P0), critical for minimizing harmonic vibration in gear-coupled applications. Raceway hardness (62 HRC) and microstructure uniformity—verified per ASTM E112 grain size 8+—ensure subsurface fatigue resistance exceeds ISO 281 minimum requirements by ≥22%.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $28,500/hour in lost production, refractory replacement, and labor—totaling >$200k per incident. Counterfeit tapered roller bearings fail at <30% of rated L₁₀ life due to non-conforming raceway profiles and uncontrolled carbide distribution. Even genuine but incorrectly specified bearings cause 30% of premature failures: improper clearance induces false brinelling; wrong cage material accelerates wear under boundary lubrication. Total cost of ownership (TCO) analysis shows that paying 18% premium for P5/C3 32212 with SKF-approved grease reduces 5-year maintenance cost by 41% versus P0/CN alternatives—driven by extended relubrication intervals, lower vibration-related gear wear, and elimination of secondary damage from catastrophic failure.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM A29/A534), and Dimensional Inspection Report signed by our ISO 17025-accredited lab. Original SKF packaging features holographic tamper-evident seals and QR-coded batch traceability. For orders exceeding 500 units, SKFs authorized third-party inspector may witness final packing and issue independent verification report. Customers may validate our authorization status via SKF’s official Partner Locator portal (partner.skf.com).

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your actual operating parameters: radial load (kN), axial load (kN), speed (r/min), ambient temperature (°C), shaft/housing fit tolerances (ISO h6/H7), and lubrication method. Within 48 hours, our engineers will deliver a complete technical assessment—including calculated L₁₀ and Lₙₐ life, recommended clearance class, cage material, and seal option—with no obligation. For projects ≥$50,000, we supply free test samples with full performance validation documentation. Every hour spent optimizing selection prevents weeks of downtime—and every validated specification starts with this first conversation.
