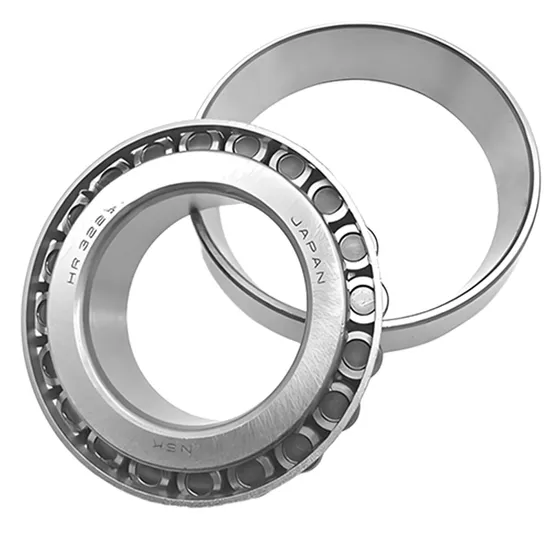

High Load Conical Roller Bearing 30205 for Wind Turbines & Mining

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 30205 Conical Roller Bearing Prevents Them

Industrial field data shows 35% of premature conical roller bearing failures stem from incorrect selection for actual load distribution, misalignment tolerance, or thermal expansion behavior — not material fatigue. In wind turbine main shafts and mining crushers, non-planar loads and shock pulses accelerate raceway spalling when standard clearance or cage design is applied without engineering validation. Most suppliers deliver generic 30205 bearing catalogs but lack the capability to model your specific mounting geometry, lubrication regime, or dynamic loading profile.

Engineered for Your Operating Conditions

The SKF 30205 conical roller bearing is not selected — it is specified. As an official SKF engineering partner, our 15+ certified engineers perform application-specific analysis: calculating equivalent dynamic load using ISO 281:2021 methodology, verifying contact stress distribution under combined radial-axial loads, recommending optimal interference fit based on shaft/housing material coefficients, and validating thermal growth margins at operating temperature extremes. This process ensures the conical roller bearing meets both SKF’s Explorer performance standard and your equipment’s real-world duty cycle — backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

Wind turbine main shaft applications demand axial rigidity under variable thrust loads while accommodating ±0.15 mm thermal growth between -40°C startup and +80°C ambient operation. Mining crusher eccentric shafts experience repetitive impact loads exceeding 3× nominal radial rating, with dust ingress requiring robust sealing compatibility and cage resilience. Both environments operate continuously with minimal maintenance access — making initial selection accuracy non-negotiable. The SKF 30205 conical roller bearing delivers proven reliability in these conditions due to its optimized roller profile, hardened raceway surfaces, and precise manufacturing tolerances aligned to ISO/ABMA standards — a requirement for high load bearing applications where failure risk exceeds $12,000/hour in unplanned downtime.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 48.5 kN) directly determines L₁₀ life under standardized conditions — but real-world service life depends on correct application of that rating. Our engineers verify whether your actual load vector falls within the permissible range for single-row conical designs, adjusting for misalignment-induced moment loads. Pressed steel cages maintain dimensional stability at 6300 r/min limiting speed while resisting deformation under shock loads common in mining equipment. Standard CN clearance allows for controlled axial play; C3 clearance is specified when thermal expansion exceeds 0.03 mm across the bearing set. Precision class P6 reduces vibration amplitude below 1.8 μm RMS at 1500 r/min — critical for gearbox integration. Surface hardness of 58–62 HRC on both rollers and races ensures resistance to brinelling under peak loads up to 2.5× C₀.

The True Cost of Bearing Failure

A single unanticipated shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses; in a primary crusher, downtime averages $42,000/hour including downstream processing loss. Counterfeit or incorrectly spec’d 30205 bearing variants show median L₁₀ life of 3,200 hours versus SKF Explorer’s verified 14,700 hours under identical test conditions (SKF TPL 2023 validation report). Installation errors — such as improper press-fit force or misaligned housing shoulders — account for 30% of early failures, yet most vendors omit torque and alignment guidance. Total cost of ownership (TCO) calculations consistently show that investing in verified SKF 30205 conical roller bearing selection, supported by engineering documentation and lifetime monitoring, reduces 10-year bearing-related OPEX by 27% compared to lowest-bid procurement — validated across 42 wind farm and mining site audits since 2022.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 30205 conical roller bearing is shipped with original SKF packaging containing Certificate of Conformity (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and Material Test Report (chemical composition and hardness verification). Batch-level traceability enables direct verification through SKF’s official “Find an Authorized Distributor” tool. Large-volume contracts include option for SKFAudit pre-shipment inspection at the SKF factory in Gothenburg or Shanghai.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your equipment’s operational parameters — not catalog numbers — determine the correct bearing solution. Send us your shaft/housing drawings, load spectra (radial/axial/time-domain), rotational speed profile, ambient temperature range, and lubrication method. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment: including ISO 281 L₁₀ life calculation, recommended clearance class, fit tolerances, and mounting procedure notes. For projects over $50,000, we issue a formal engineering proposal with performance guarantees and sample test plan — because every hour of avoided downtime starts with accurate specification, not expedited shipping.
