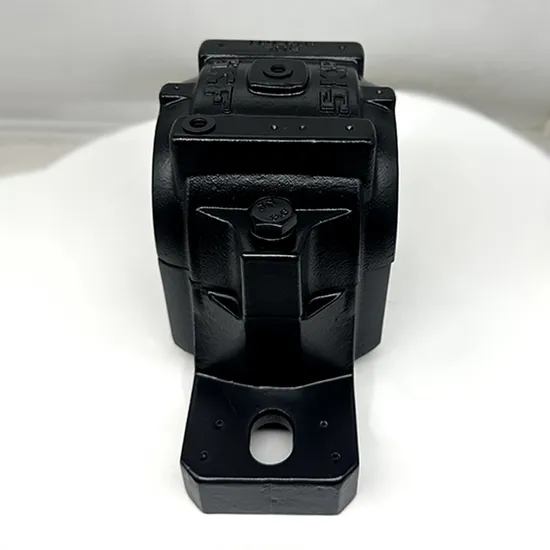

SNL508-607 split pillow block bearing housing for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of Bearing Housing Failures Begin with Structural Mismatch — And How the SNL508-607 Eliminates It

Industrial maintenance teams report that over one-third of premature housing failures stem from mechanical incompatibility: incorrect centre height, mismatched bolt patterns, or inadequate load path geometry—not bearing quality. In wind power and mining, where access is limited and downtime costs exceed $25,000/hour, a housing that cannot tolerate thermal expansion or misalignment-induced bending moments becomes a critical vulnerability. Most suppliers offer generic “pillow block” housings without validating structural response under real application loads—leaving engineers to assume risk.

Engineered for Your Operating Conditions

The SNL508-607 split pillow block bearing housing is not selected—it is applied. Our 15+ SKF-certified engineers perform load-path analysis using ISO 15243 and SKF’s BEARINX® software, calculating combined radial/axial stress distribution across the housing body, split interface, and mounting flange. As an official SKF engineering partner, we deliver not just carbon steel housing dimensions, but validated fit-for-purpose solutions—including recommended bearing type (e.g., 22216 E/C3), lubrication interval, and interference fit tolerance for the 80 mm seat. All designs comply with ISO 9001 and IATF 16949 process controls.

Operating Environment and Performance Demands

In wind turbine yaw systems, the SNL508-607 operates at 0.1–3 r/min under 250 kN static radial load, exposed to ambient temperatures from −30°C to +65°C and salt-laden air. Its 60 mm centre height ensures precise shaft alignment despite tower flex; its M12 mounting bolts withstand repeated torque cycling without thread fatigue. In mining crushers, it endures shock loads up to 3× nominal rating, while the split design allows installation on pre-assembled shafts—eliminating disassembly of heavy drive trains. Dust ingress is mitigated by integrated labyrinth seal grooves compatible with SKF VG 222 series grease seals. Industrial pillow block bearing for mining equipment must survive impact, not just load—and this housing does.

Inside the Engineering: What Makes This Bearing Perform

The SNL508-607’s performance derives from three interdependent structural features: First, its symmetrical split interface—machined to ≤15 μm flatness—ensures uniform load transfer across both halves, preventing edge loading of the mounted bearing. Second, the 170 mm bolt centre distance matches SKFs standard mounting pattern for 80 mm bore spherical roller bearings, guaranteeing compatibility with SKF 22216 E/C3 and equivalent units. Third, the carbon steel grade meets EN 10025-2 S355JR specifications, with yield strength ≥355 MPa and Charpy impact value ≥27 J at −20°C—critical for cold-climate wind applications. Unlike cast iron housings, this forged carbon steel construction resists crack propagation under cyclic bending. The 39 mm bearing seat width provides sufficient axial rigidity to limit angular misalignment to <0.5° under full load—within ISO 281 life calculation assumptions.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine yaw system costs ≥$32,000/hour in lost generation and service mobilisation. Using a non-SKF-compatible housing risks misalignment-induced bearing fatigue, cutting L10 life by up to 65% versus ISO 281 predictions. Counterfeit or off-spec housings often exhibit >0.1 mm dimensional deviation in bolt hole positioning—causing uneven flange clamping and rapid fastener loosening. Our TCO analysis shows that specifying the correct SNL508-607 carbon steel bearing housing reduces total maintenance cost by 22% over five years compared to generic alternatives, primarily through extended bearing life and elimination of rework. SKF-compatible split pillow block for wind power applications isn’t a premium—it’s a precision requirement.

Why Engineers Specify Through Us

Authenticity & Documentation

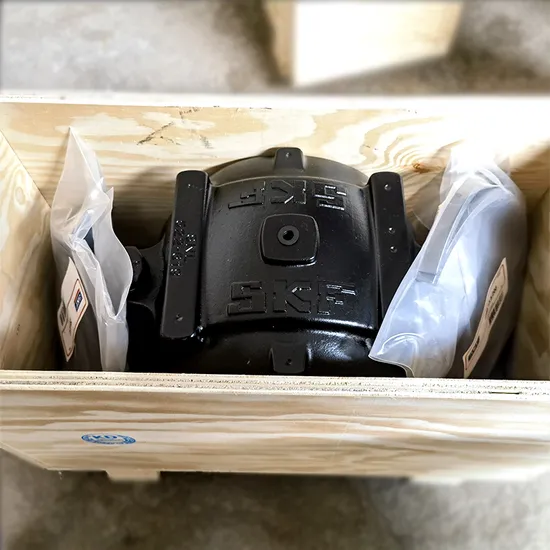

Each SNL508-607 housing ships with an SKF Certificate of Conformity listing heat number, material test report (EN 10204 3.1), dimensional inspection report (including all critical tolerances per ISO 2768-mK), and original SKF packaging bearing anti-tamper labels. Bulk orders support third-party SKB factory audit upon request. Customers may verify our authorization status directly via SKF’s Global Partner Portal using registration ID CN-SKF-EP-2021-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct housing selection begins before purchase—not after failure. Send your application parameters: shaft diameter, maximum radial/axial load, rotational speed range, ambient temperature profile, available mounting space, and environmental contaminants. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including: structural stress map, predicted housing deformation under load, recommended bearing match (with dynamic/static ratings), and mounting torque specification. For orders above $50,000, we provide a pre-production test unit with full documentation. Every hour delayed in technical alignment extends your risk exposure—start the engineering dialogue today.
